Aluminium Dock Boards

Aluminium Dock Boards

Heavy duty pallet ramp

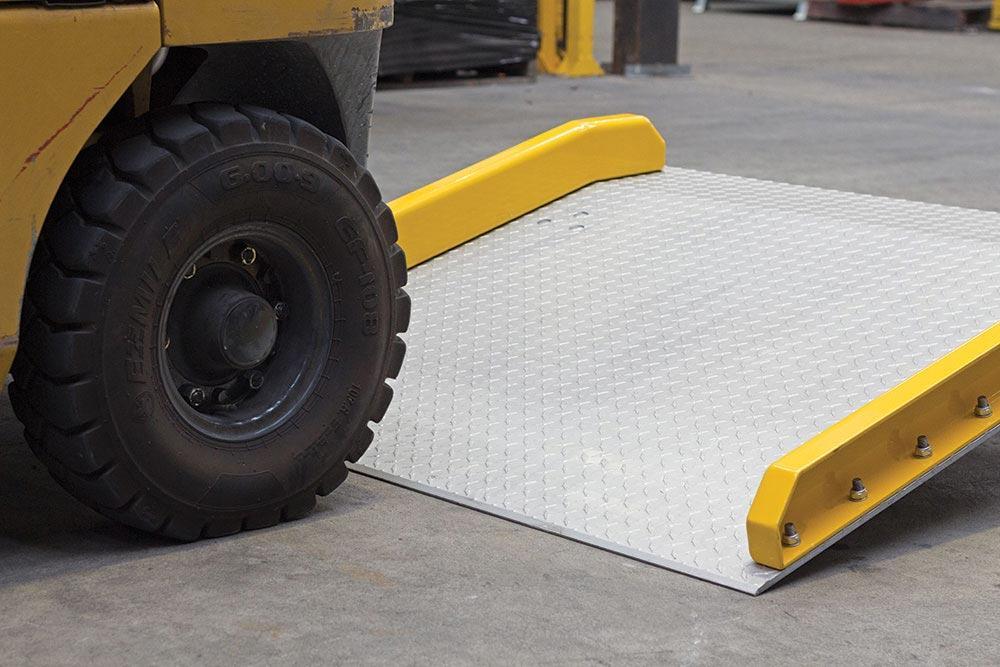

Dock Boards serve a similar purpose to dock plates but are designed to cope with heavier machinery like forklifts. They consist of a plate deck with steel curbs on both sides to prevent run-offs and provide additional strength and stability. Dock boards can be quite heavy and therefore, include carry chains so they can be transported by the forklift. Alternative dock plates and boards in a range of sizes and load ratings are available on request.

  • Description: Aluminium Dock Board.
    Material: Aluminium.
    Max Height Difference: 228mm between levels.
    Length: 1525mm.
    Width: 1525mm.
    Thickness: 10mm.
    Capacity: 4500kgs.
    Weight: 104kgs.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.
