Linebacker Asset Protection Barrier
Linebacker Brace Reinforced

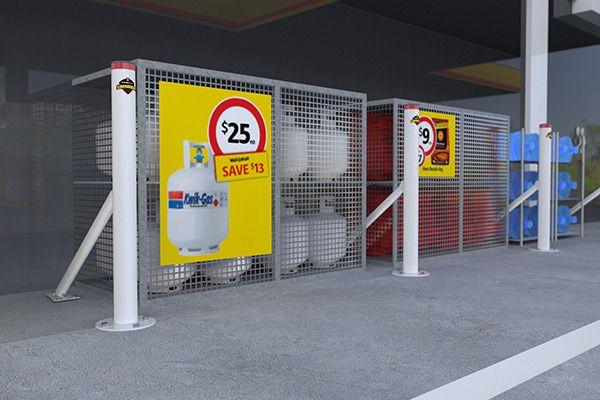

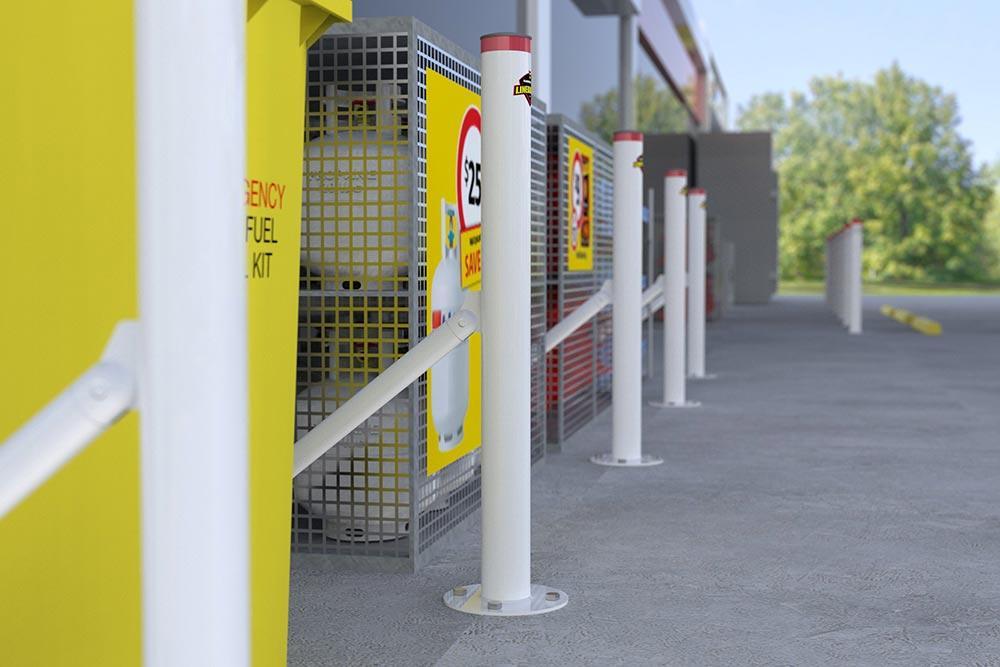

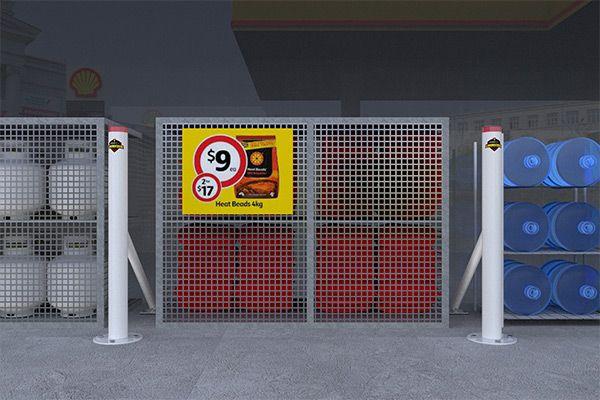

The Linebacker BR is a storefront protective barrier designed as a last line of defence when it comes to the safety and protection of shop front displays and assets against unintentional drive-through vehicle crashes.

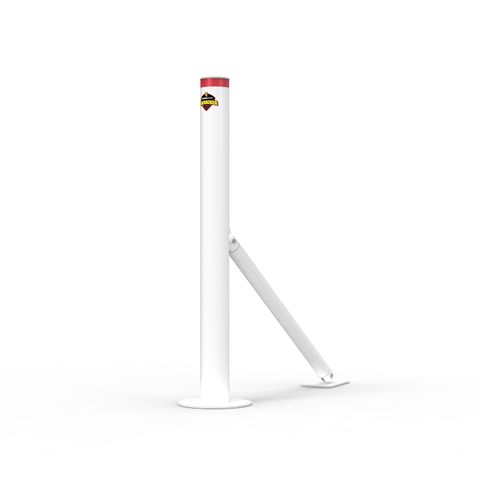

These are an ideal protective device for situations where surface mounting with very shallow fixing is required. Twin base plates and diagonal bracing mean the BR is extremely strong, making it ideal for asset protection installations where the rear brace can be embedded within merchandising units out of the way of pedestrians.

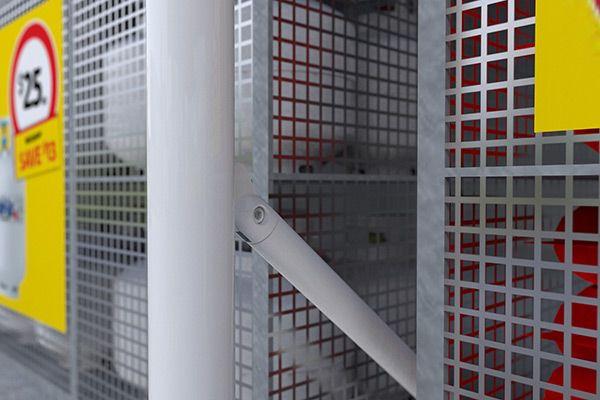

Unlike a conventional surface mounted bollard, loads are transmitted down the bollard and through the diagonal brace to the dual base plates allowing it to withstand heavy impacts.
Part No. Bollard Diameter Bollard Height Bollard Wall thickness Bollard Base plate diameter Brace Diameter Brace wall thickness Brace base plate L x W Kgs Finish LBR90-SM 90 1000 5 225 48.3 3.2 660 x 200 16.5 HDG+PC
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) and Powder Coated (PC).
