Galvanised Hoop Bollards Heavy Duty Steel
Protect areas exposed to dangerous factory traffic and vehicle impacts
U Shaped Bollards are designed to protect the perimeters of areas exposed to dangerous factory traffic and vehicle impacts. The bollard hoops are suitable for both internal and external environments ensuring installations across various locations throughout the premises.

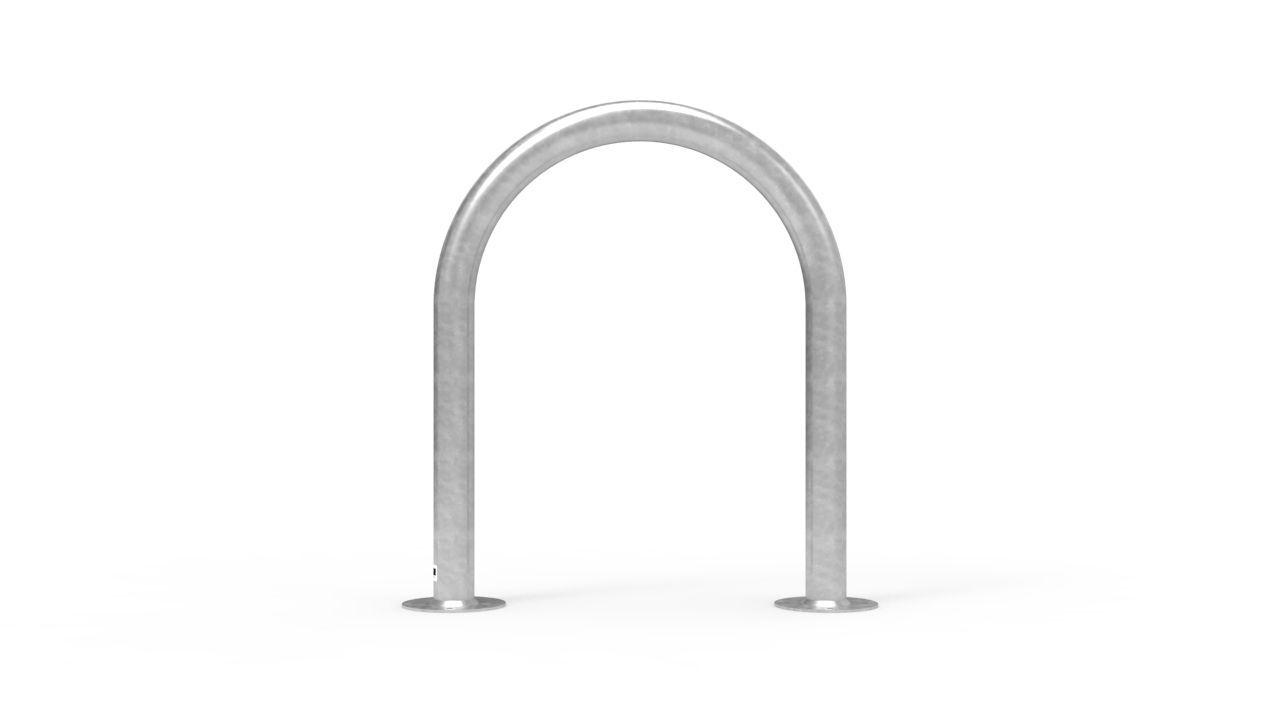

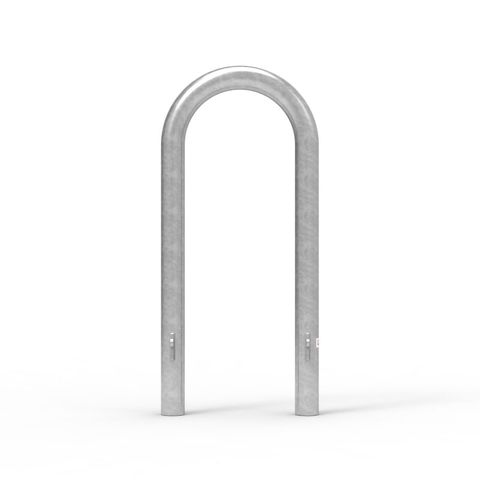

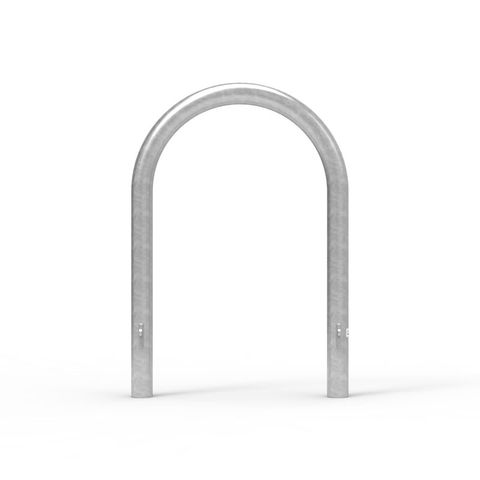

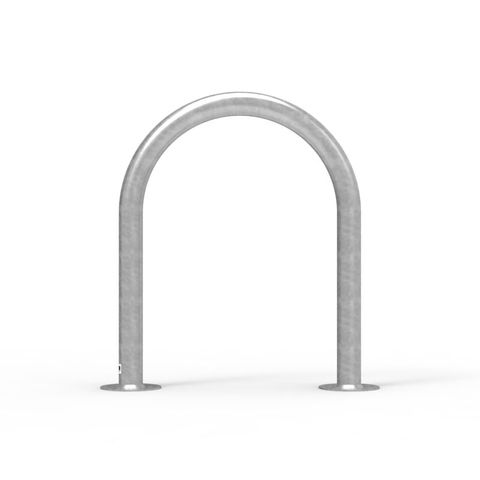

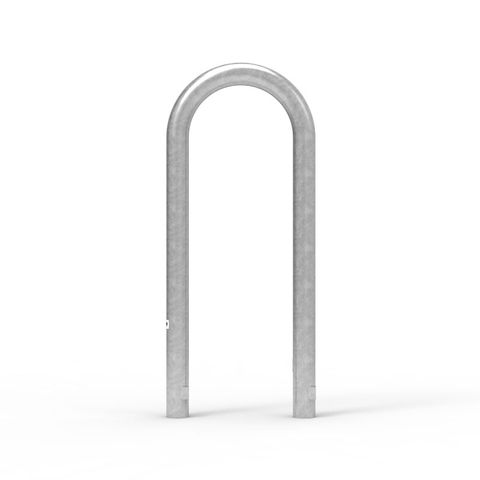

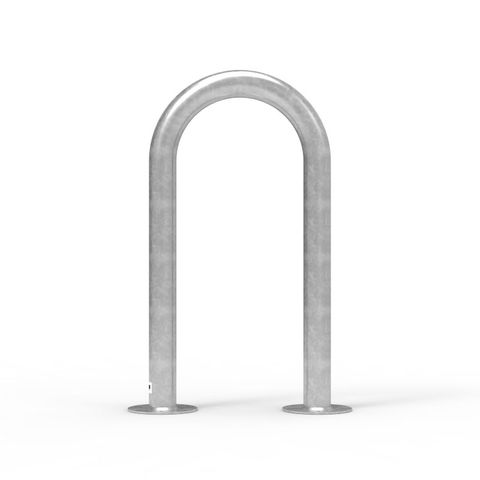

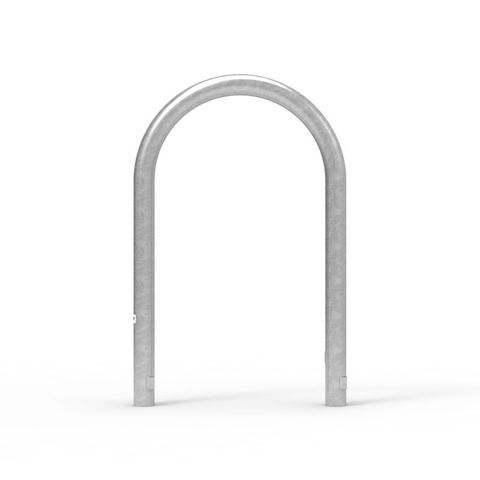

The bollards u-shaped hoop is rolled from a single piece of heavy wall pipe and are available in either 600 or 900mm wide models. Choose from three mounting options; fixed surface mount, fixed in-ground or removable in-ground. For removable models, there are two in-ground lockable sleeve options; core drilled (for existing concrete) or new concrete. Hot dip galvanised is the standard finish but they can be powder coated on request.
As this product is Made To Order (MTO) in our Geelong factory, we advise that you ask our customer service staff about lead time when ordering. Available in range of choices, steel hoop bollards provide necessary protection against heavy duty impact and collisions to keep your employees safe. Applications this product will protect include car showroom perimeters, industrial environments, petrol stations, retail units and open urban spaces such as parks.
Part No. Post Diameter Overall Width Height above ground Depth below ground Wall thickness Base plate diameter Base plate thickness Centreline radius Kgs Finish CH9050SM-G 90 600 1100 – 5 225 6 250 31.4 HDG CH9050BG-G 90 600 1100 300 5 – – 250 28 HDG CH9050SL-G 90 600 1100 225 5 – – 250 29 HDG CH9081SM-G 90 900 1100 – 5 225 6 405 29.7 HDG CH9081BG-G 90 900 1100 300 5 – – 405 33.2 HDG CH9081SL-G 90 900 1100 225 5 – – 405 31.2 HDG
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG).
