Group 2 Height Bars - Hanger Beam

Group 2 Height Bars - Hanger Beam

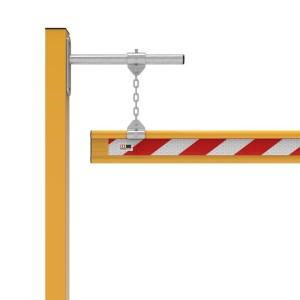

Suspended height restriction bar with hanger assemblies and chains

Group 2 height bars include those that exceed the height or width dimensions of our Group 1 design. Group 2 height bar structures are engineered ‘up to’ a maximum height of 8 metres or a width of 12 metres, they tend to be site specific and as such are made to order from stock components. They utilise an extruded aluminium height bar rail while the supporting structure is hot dip galvanised mild steel SHS.

  • Cohesive

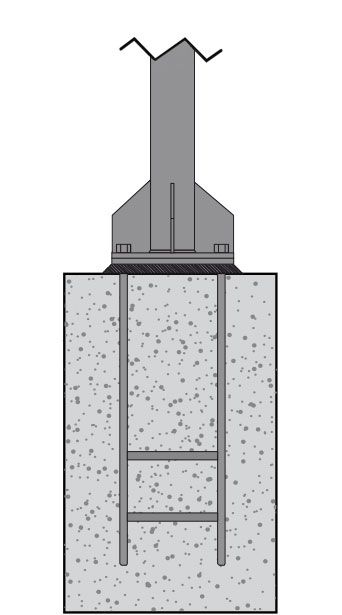

  • Cohesive soils (stiff clay - C=60kPa)

    Embed RC350 reo cage into 30mpa concrete 600 diameter by 1250mm deep.

    Ground Surface

    Natural undisturbed soil, minimum 100kPa bearing capacity.

  • Non-Cohesive

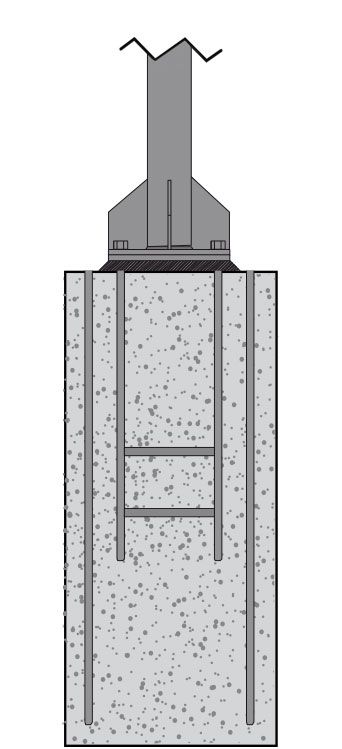

  • Non-Cohesive soils (Sands)

    Embed RC350 reo cage into 30mpa concrete 600 diameter by 2500mm deep with 4 additional full depth R20 bars.

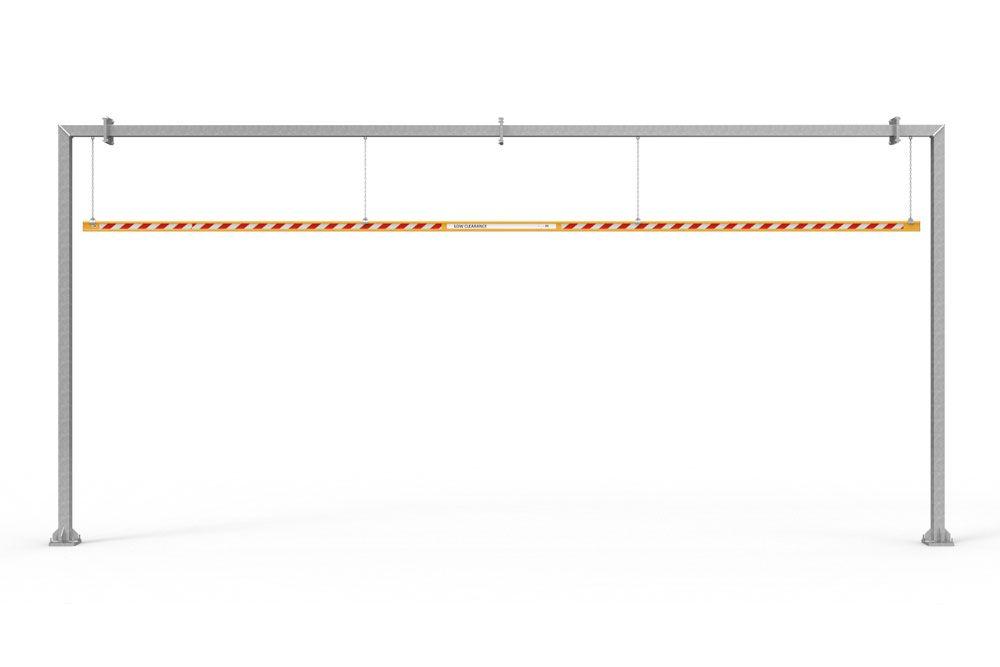

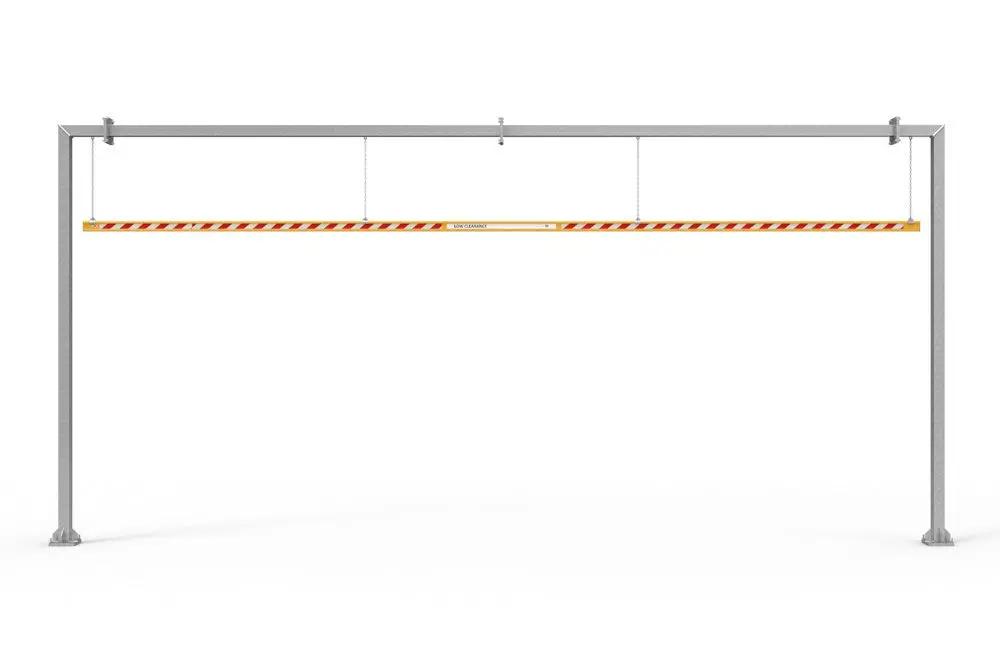

  • Description: Suspended height bar with hanger assemblies and chains
    Material:
    Finish:
    Length: 8, 10 or 12 metres.
    Weight: 8 metre with hangers – 6.4kgs.
    10 metre with hangers – 9kgs.
    12 metre with hangers – 11.5kgs.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.
