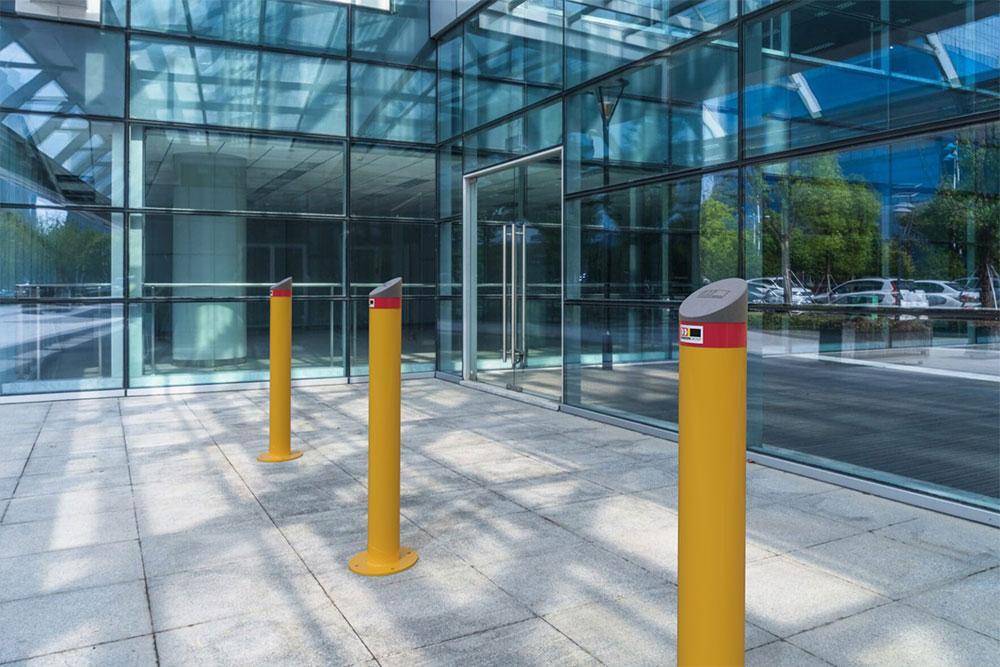

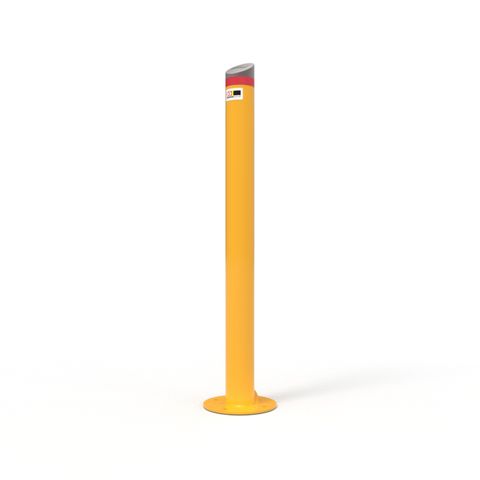

Angled Cap Heavy Duty Steel Bollards: Architectural Design-Led Asset Protection

As the leading supplier and manufacturer of high-security and urban planning solutions across Australia and New Zealand, the Angled Cap Heavy Duty Steel Round Bollard provides modern permanent protection with modern architectural aesthetics. These formidable heavy-duty steel bollards are engineered for permanent defence in critical zones such as car parks, high-foot-traffic businesses, and shared public spaces in major metropolitan and rural areas.

The defining feature is the streamlined, 30° sloped cap, which not only imparts a contemporary urban look but is also a deliberate functional design element that prevents unsightly litter and rubbish from resting on the steel bollard post top, significantly enhancing facility maintenance and visual appeal.

The Angled Cap Heavy Duty Steel Bollard is available in both a surface-mounted and a robust below-ground steel bollard model, ensuring secure installation across a wide range of commercial and industrial environments. These bollards are manufactured from high-grade steel and are available in a standard hot-dip galvanised finish to ensure increased corrosion resistance, or with a durable powder-coated safety yellow finish, which is the standard high-visibility option; alternative colours can be supplied upon request.

Furthermore, the innovative angled caps are designed to perfectly fit our existing 90mm and 140mm heavy-duty round steel bollard range. They can be purchased separately for cost-effective retrofitting to existing steel bollards.

Optional chain rings are available for connecting chains or ropes. Chain ring kits are sold in pairs and may also be purchased separately for retrofitting to existing bollards, requiring drilling and tapping M10 threads as necessary.

We also enhance our service by offering factory-backed installations to save you the hassle. Eliminate complexity and ensure compliance with our complete, end-to-end service offering.

Partner with a trusted leader in traffic control and property protection solutions. Contact us today to discuss your project's specific requirements and request a free on-site assessment.

  • Loading products…
  •

    Part No.Bollard DiameterHeight above groundDepth below groundWall thicknessBase plate diameterBase plate thicknessKgsFinish
    CA90SM-G 90 1060 5 225 6 11.3 HDG
    CA90BG-G  90 1060 380 5 14.8 HDG
    CA90SM 90 1060 5 225 6 11.3 HDG+PC
    CA90BG 90 1060 380 5 14.8 HDG+PC
    CA140SM-G 140 1290 5 300 10 25.1 HDG
    CA140BG-G    140 1290 500 5 29.4 HDG
    CA140SM  140 1290 5 300 10 25.1 HDG+PC
    CA140BG  140 1290 500 5 29.4 HDG+PC
    CAP90A-PA
    CAP140A-PA
    Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC).
