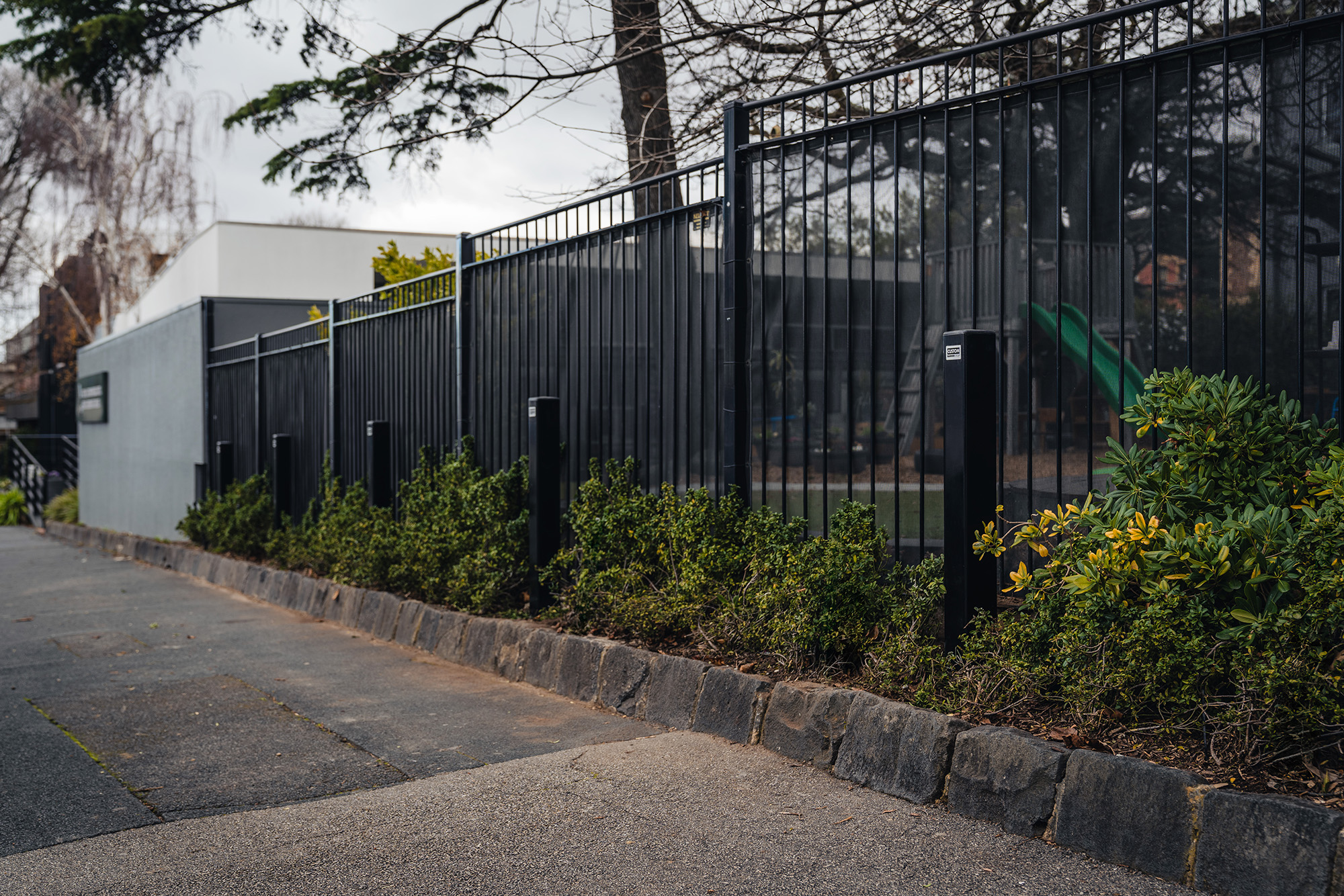

Square Bollards Heavy Duty Steel

Square Bollards Heavy Duty Steel

Bollards designed to protect your property & assets

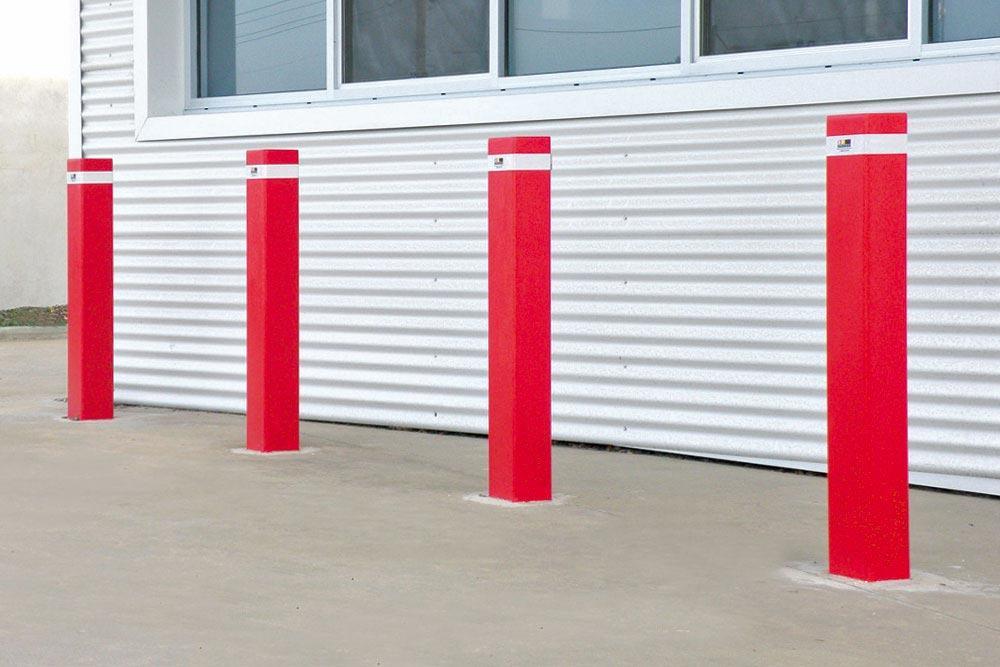

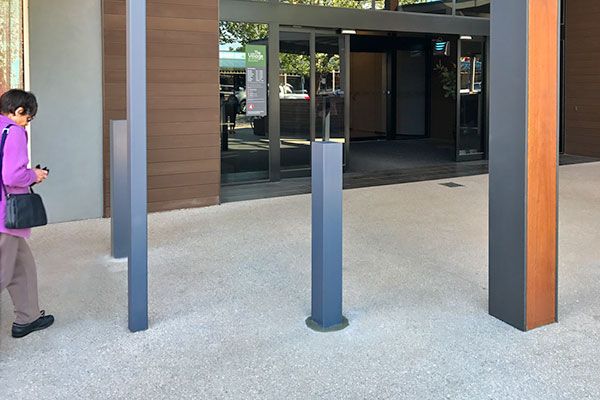

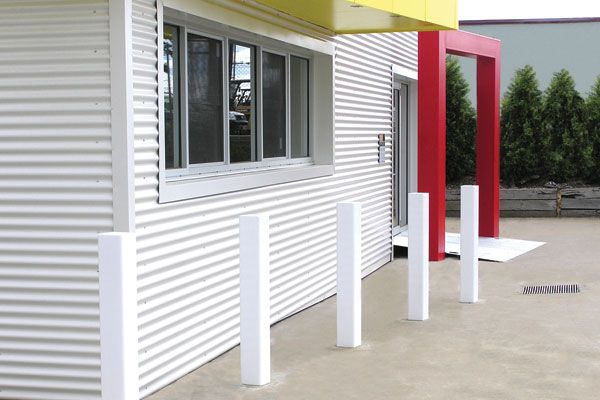

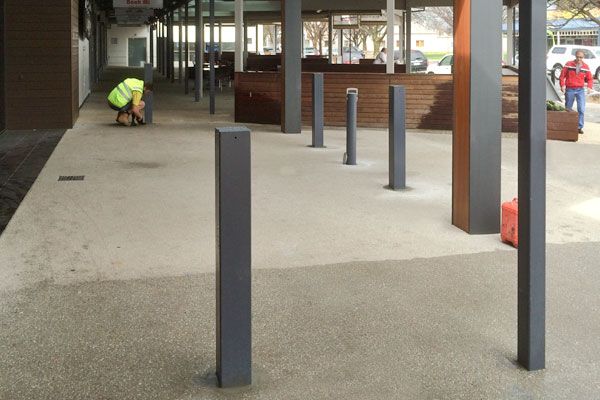

Our fixed, square surface mount and below ground bollards are designed for traffic control situations and asset protection.

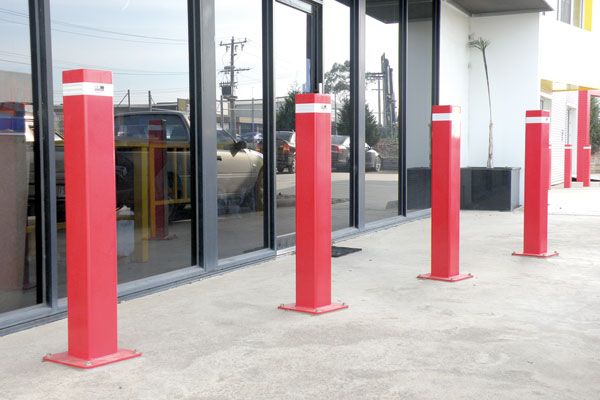

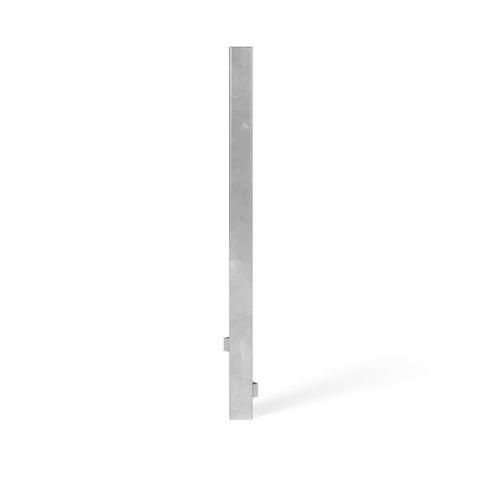

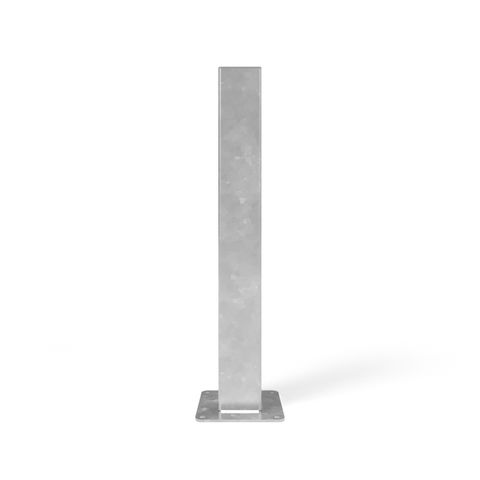

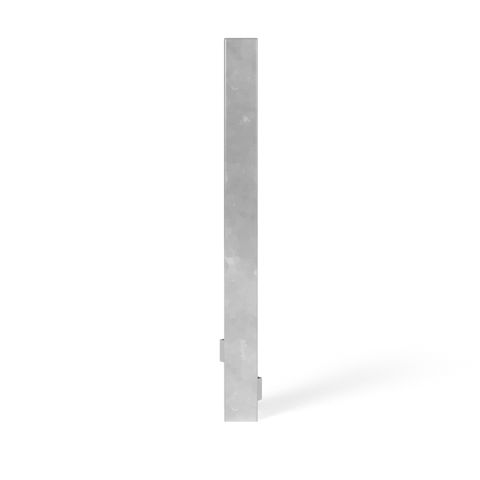

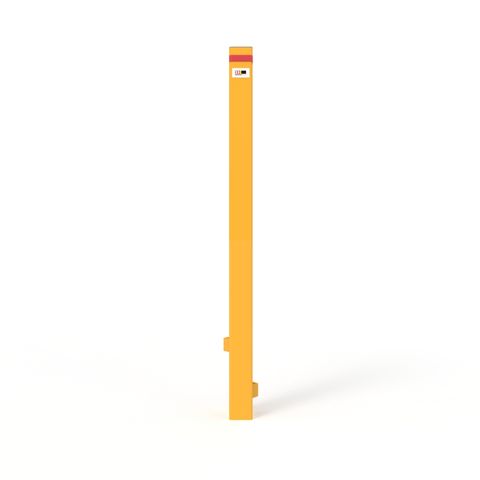

The surface mount bollards have fully welded base plates and are suitable for installation onto any concrete surface. The below ground bollards have fully welded starter bars for installation into new concrete footings. Suitable for installation in asphalt or any soft surface where a concrete footing will be necessary.

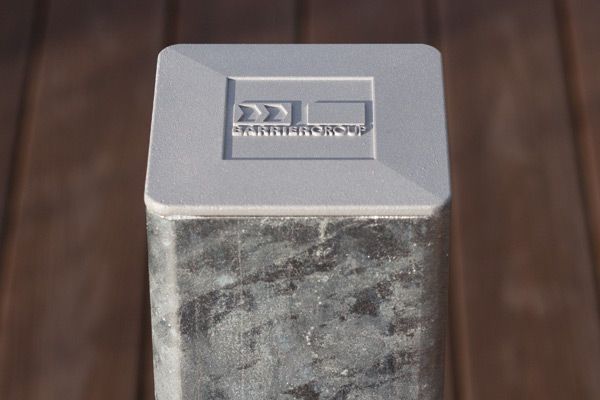

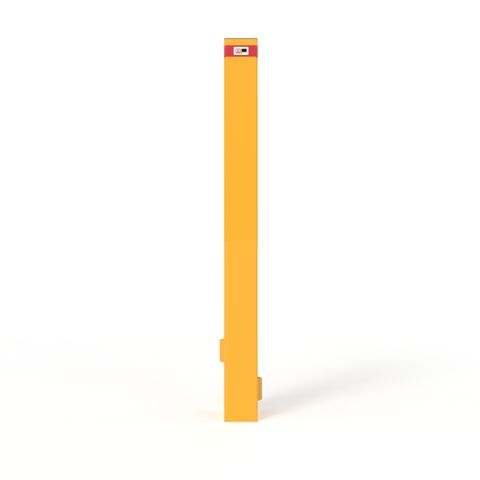

All our bollards are supplied complete with necessary fixings. They are manufactured from heavy wall mild steel and hot dip galvanised as standard with the option of powder coating as a final finish. (Safety yellow is our standard colour. Other colours are available on request).

Optional chain rings are available for connecting chains or ropes to our bollards. Simply order with chain rings. Chain rings can also be purchased separately for retro fitting to existing bollards by drilling and tapping M10 threads as required.

  • Part No. Square Height above ground Depth below ground Wall thickness Base plate diameter Base plate thickness Kgs Finish
    C90SM-G 90 1000 5 200 6 12.75 HDG
    CS90BG-G 90 1000 400 5 16.5 HDG
    CS90SM 90 1000 5 200 6 12.75 HDG+PC
    CS90BG 90 1000 400 5 16.5 HDG+PC
    CS150SM-G 150 1200 5 300 10 32 HDG
    CS150BG-G 150 1200 500 5 38 HDG
    CS150SM 150 1200 5 300 10 32 HDG+PC
    CS150BG 150 1200 500 5 38 HDG+PC
    Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC).
  • Sorry, we currently don't have any Case Studies related to this product.
  • Ask a question

  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

  • The Pitbull

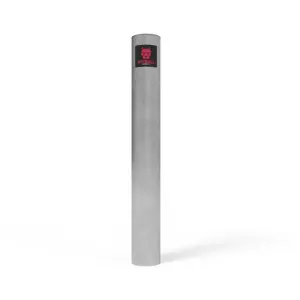

    The Pitbull

    With a diameter of 168mm and a wall thickness of 12mm this is one bollard you don’t want to me...

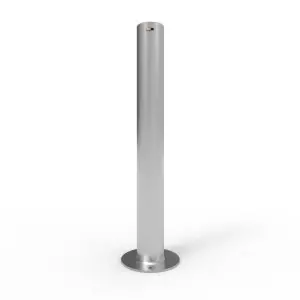

  • 316 Stainless Steel Round Bollards

    Our round stainless steel bollards are offered in three designs: below ground for installation i...

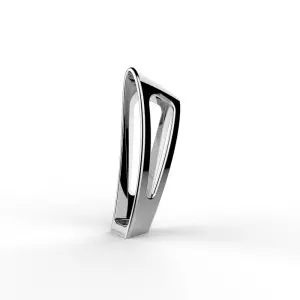

  • Zephyr Architectural Bollard
