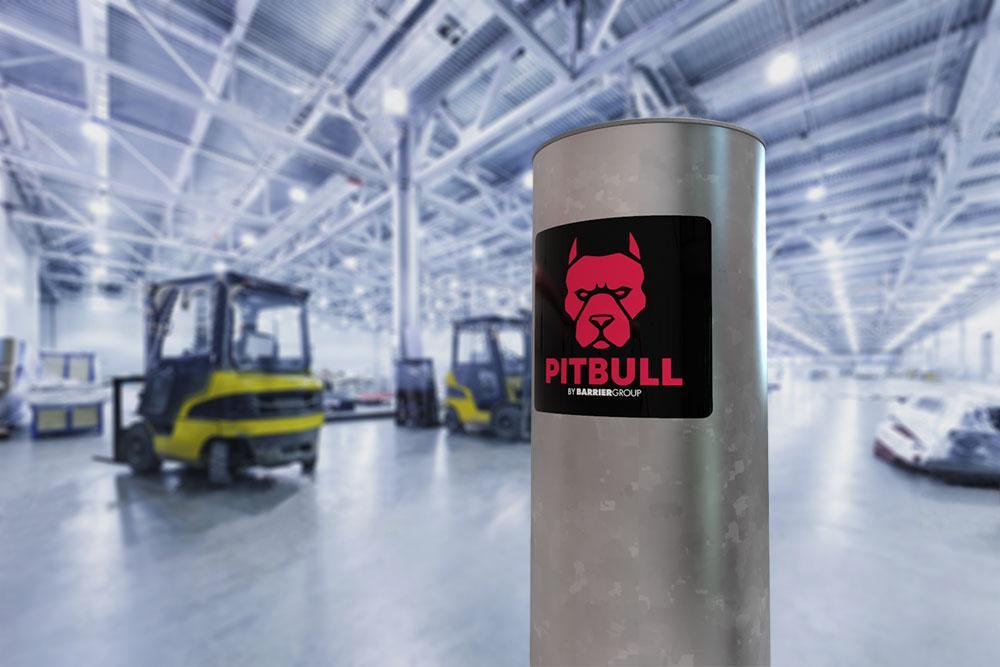

The Pitbull

A bollard with real bite

With a diameter of 168mm and a wall thickness of 12mm this is one bollard you don’t want to mess with. Available in either fixed in-ground or removable in-ground models. Removable models allow access for construction or maintenance etc. Forget surface mount bollards, in this company they just don’t stand up to the abuse a Pitbull can take!

Note: At around 100kgs these guys require some form of mechanically assisted lifting.

Hot dip galvanising is the standard finish, however powder coated finishes or our polyethylene Skinz can be optioned.

Product Features:

Ridiculously strong 12mm thick wall for ultimate strength
Stands 1200mm above ground

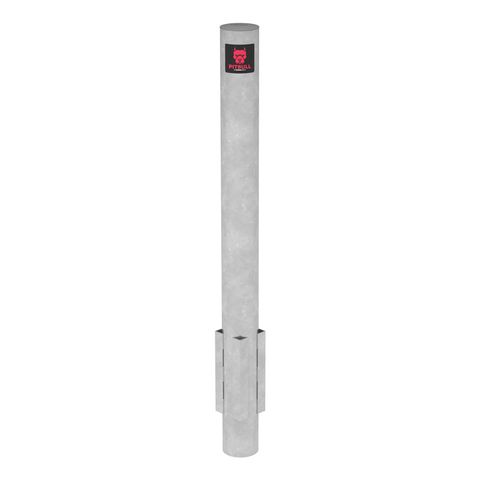

Available in fixed or removable in-ground models
Removable model includes in-ground steel sleeve
Hot dip galvanised finish as standard
Cast aluminium cap conceals mechanical lifting point
Welded concrete anchors ensure maximum embedment
Recommended minimum 30mpa concrete footing
Ideal for high security or transport depot installations

Download PDF

Part No. Bollard Diameter Height above ground Depth below ground Wall thickness Kgs Finish

CPB168BG-G 168 1200 800 12 100 HDG

CPB168CD-G 168 1200 300 12 80 HDG

Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG).
