Shock Absorbing - Extra Heavy Duty

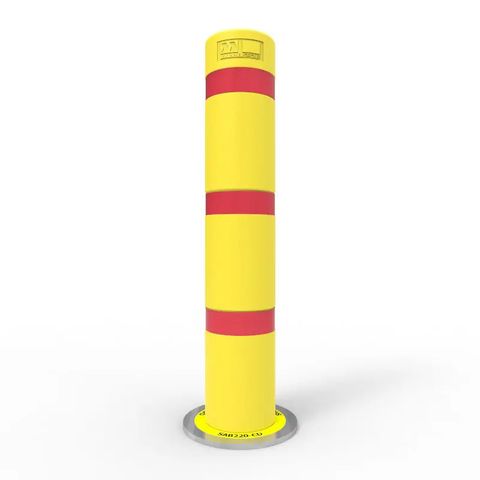

Shock Absorbing Bollards - Extra Heavy Duty

Shock absorbing bollards for heavy industrial applications to protect assets by absorbing impact from heavy/large moving vehicles. Suitable for airports (airside) and factories etc.

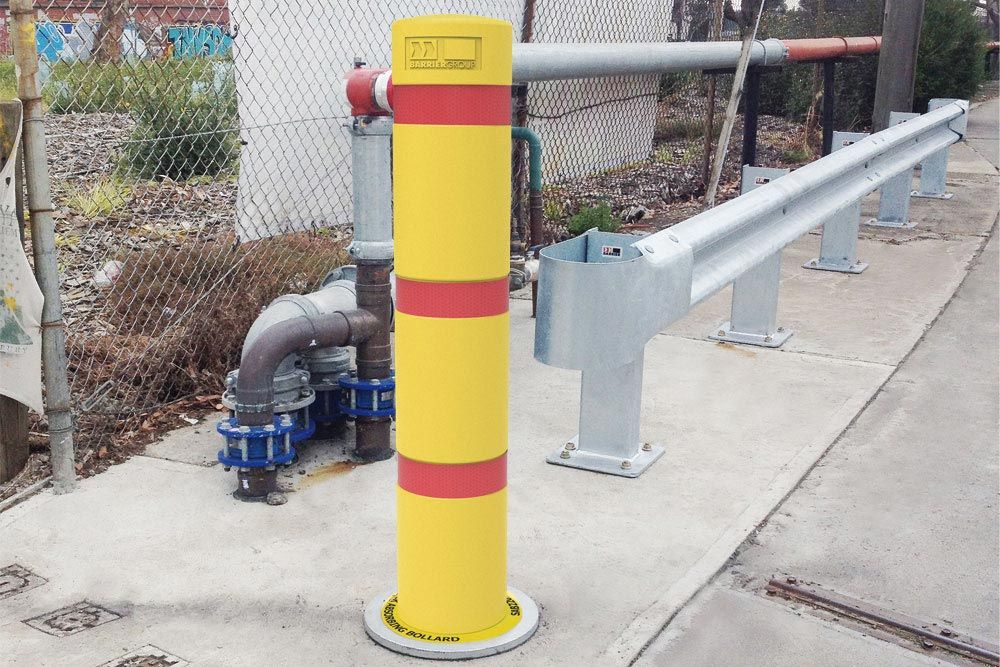

The Extra Heavy Duty Shock Absorbing Bollard (SAB) shifts sideways when hit at or near ground level. When the impact is higher, it can tilt up to 8 degrees and locks-up offering maximum protection. Alternatively, the SAB is able to rotate through 360 degrees when the impact is of a deflection or glancing nature.

The SABs are designed to simply absorb repeated impacts and return to their original position without sustaining permanent damage.

SABs are designed to be used anywhere heavy or large vehicles are manoeuvring at low speeds, such as airports (airside) or factories etc.

Note: Not recommended for high speed traffic environments.

  • Part No. Bollard Diameter Height above ground Wall thickness Base plate diameter Shaft size L x W Kgs* Finish
    SAB220-CD 220 1300 6.4 300 x 100 120 HDG+PS
    Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) and Polyethylene Skinz (PS), or 316 Stainless Steel (SS). *Approximate weight.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

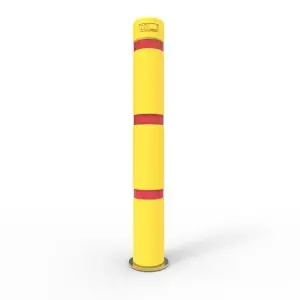

  • Shock Absorbing - Heavy Duty

    The Shock Absorbing Bollard (SAB) has the ability to shift sideways if hit at or near ground...

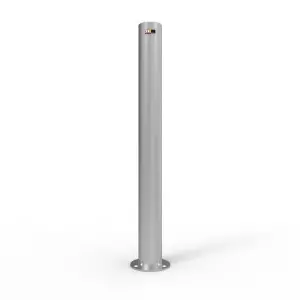

  • Shock Absorbing - Medium Duty
