Shock Absorbing - Heavy Duty

Shock Absorbing Bollards - Heavy Duty

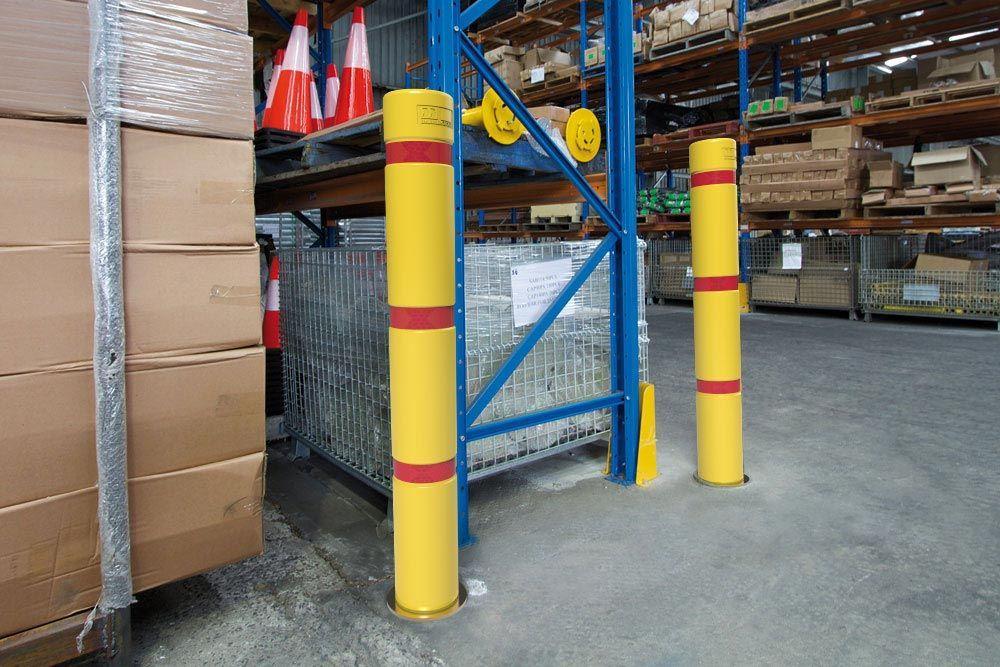

Shock absorbing bollards for industrial/commercial applications to protect assets by absorbing impact from slow moving heavy vehicles. Suitable for factories, warehouses and carparks etc.

The Shock Absorbing Bollard (SAB) has the ability to shift sideways if hit at or near ground level. If the impact is higher up the bollard, it can tilt up to 8 degrees, at which point it locks up offering maximum protection. Alternatively if the contact is of a deflection or glancing nature, the SAB is able to rotate through 360 degrees.

  • Shift Sideways

  • Tilt 8º

  • Rotate 360º

Each SAB comes fitted with high impact polyethylene protective sleeves. The sleeves are U.V. stabilised and won’t fade, rot, rust or peel. Never have to paint chipped, scratched or rusted bollards again. (Click here for more information on protective bollard sleeves).

SABs are designed to be used anywhere vehicles are manoeuvring at low speeds, such as carparks and warehouses etc. The self centering design means the SABs can take repeated impacts without incurring permanent damage. They simply absorb the impact and return to their original position. These unique characteristics result from the combination of clever engineering and the use of high tech composite materials. SABs are available in 140mm diameter in either core drilled in-ground or surface mounted models.

Note: Not recommended for high speed traffic environments.

  • Part No. Bollard Diameter Height above ground Wall thickness Base plate diameter Shaft size L x W Kgs* Finish
    SAB140-SM 140 1200 5 350 33 HDG+PS
    SAB140 140 1200 5 300 x 50 33 HDG+PS
    Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) and Polyethylene Skinz (PS), or 316 Stainless Steel (SS). *Approximate weight.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

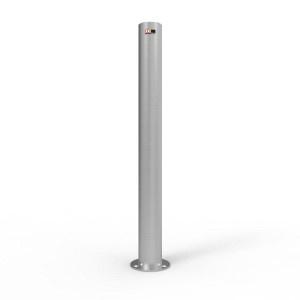

  • Shock Absorbing - Medium Duty
