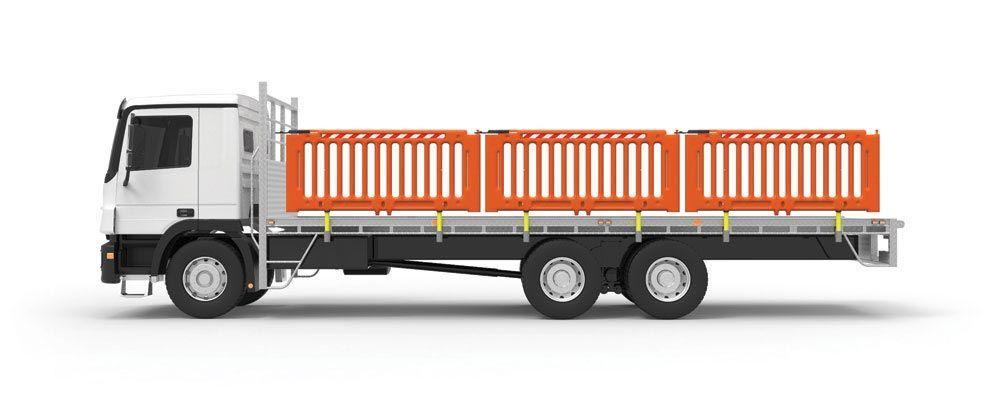

Load-Safe-Q Portable Truck Barrier

Temporary edge protection system for truck trays

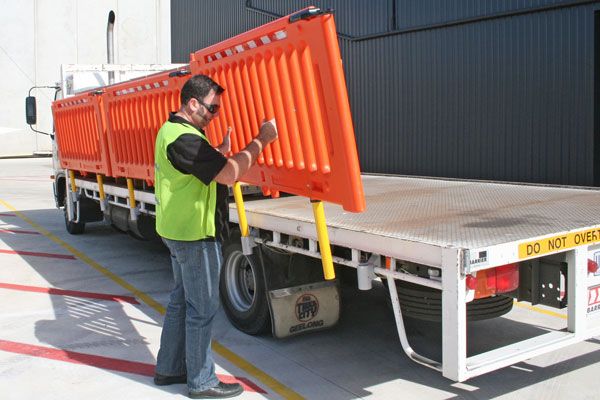

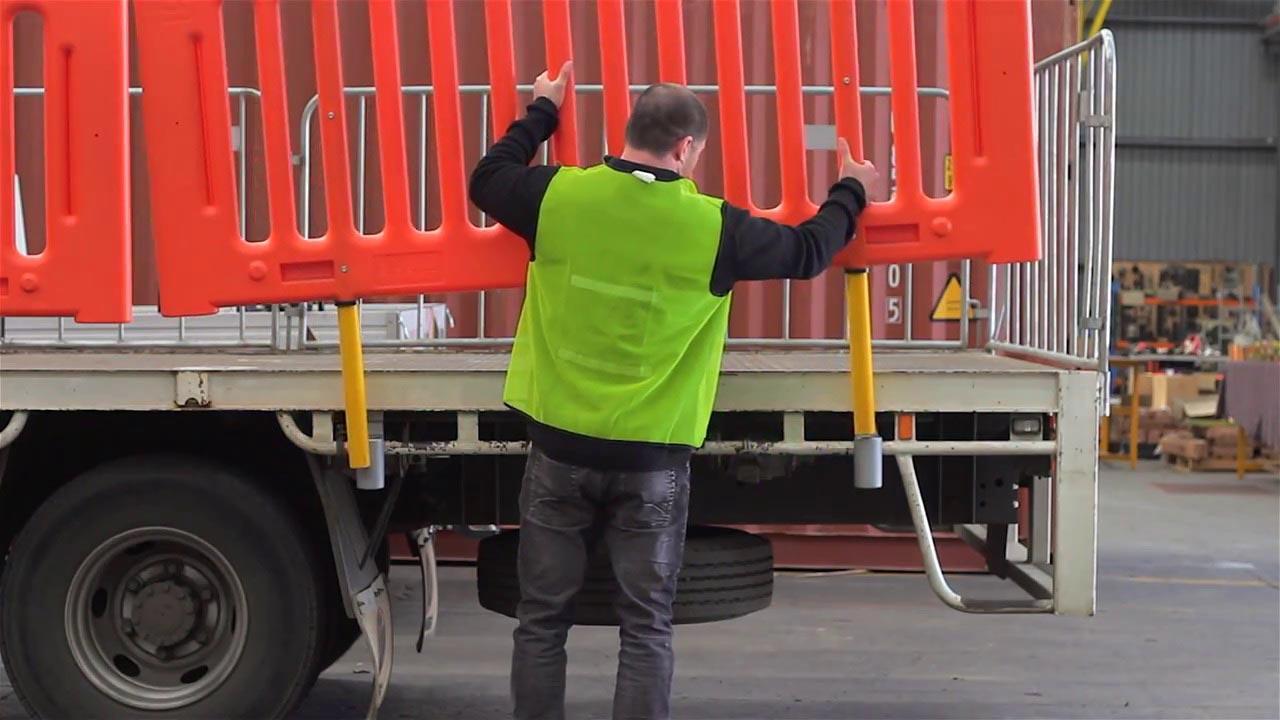

Load-Safe is designed to be housed at transport loading point, to be rapidly deployed on any truck that utilises conventional tie-down rails. Thereby eliminating the risk of dangerous falls.

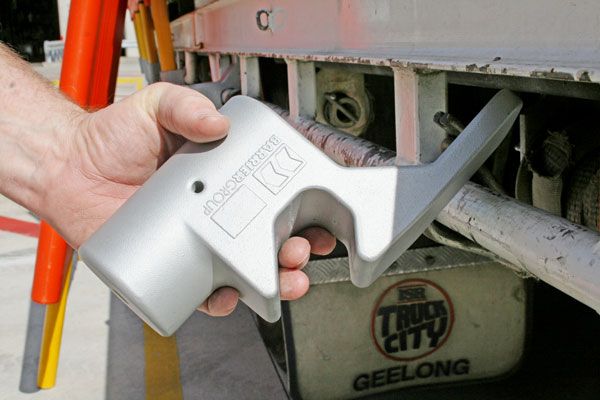

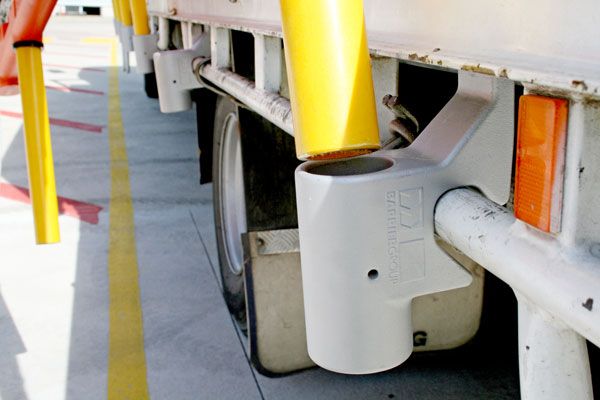

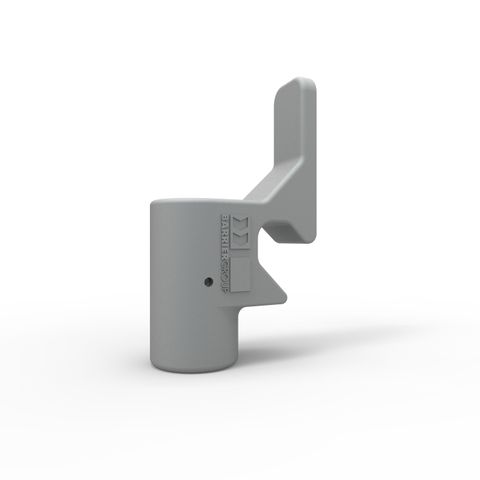

The unique cast aluminium panel brackets have been configured to work with most tray and curtain sided trucks.Two brackets per panel are positioned onto the tie-down rails, the panel is then simply located into the brackets.

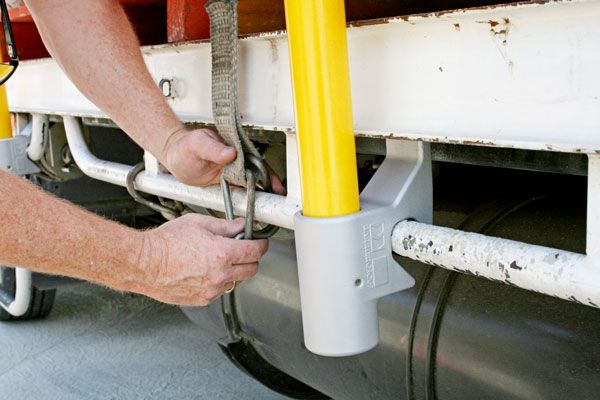

Once the panel is installed the bracket is locked in place and cannot be removed without first removing the panels. Panels are also secured to each other by an adjustable snap latch at the top of each panel.

Truck Tray Safety Barrier

Note: Load-Safe is a fall arrest system. It is not intended for use as a load restraint. It is deployed onto the stationary vehicle while loading/unloading goods and then removed before the vehicle exits the location.

Not sure if Load-Safe will fit your truck?

The template helps you to easily measure the spacing of your truck bed and rails.

Invalid Input
Please let us know your name.
Please let us know your email address.
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input

  • Description: Truck tray temporary edge protection system

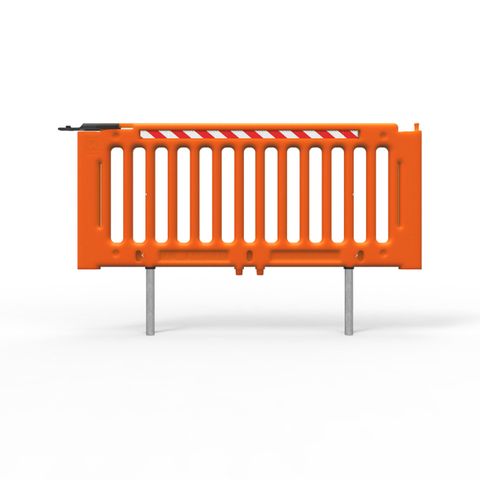

    Material: Cast aluminium bracket. Blow moulded polyethylene panel. Fibre reinforced plastic internal posts.
    Finish: Solid colour Hi-Vis Orange panel and Yellow posts.
    Size: 1000mm high x 2130mm long panel (height above tray deck).
    Weight: 1.25kgs brackets (each). 18kgs panels (with posts).
    Fixings: Brackets hook onto tie-down rails. Panels drop into brackets (no tools).
  • Sorry, we currently don't have any Case Studies related to this product.
  • Ask a question

  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

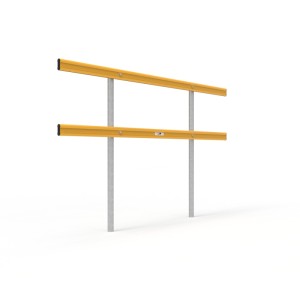

  • Post-Q Fixed Fence System
