Kerb Plate

Click and drag image to view 360˚

With 3 variations of kerb plates to suit a wide range of wheels and vehicles, crossing over deep driveways and navigating kerbs just got a whole lot easier!

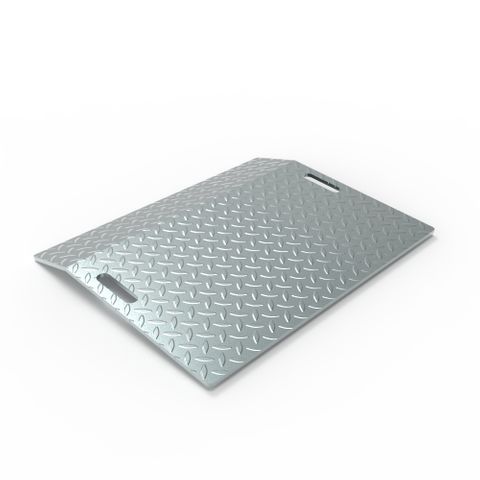

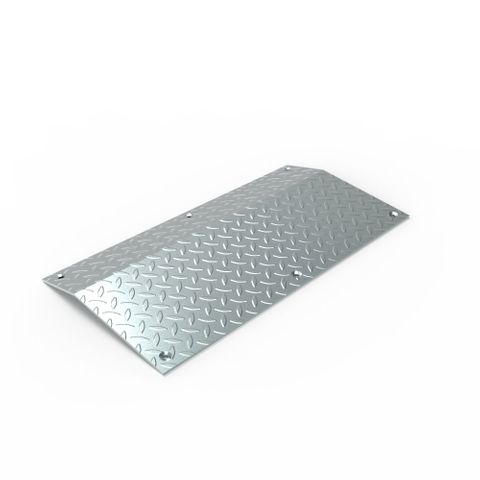

Consisting of 6mm checker plate (KP4129-G & KP4180-G) & 10mm checker plate (KP6074-G) these heavy-duty kerb plates can support up to 1.5 tonne, 2.5 tonne and 3.5 tonne per axle. Use singularly for wheelbarrows, mowers, wheelchairs, and motorcycles. Use in pairs for cars, boats, forklifts, and trucks.

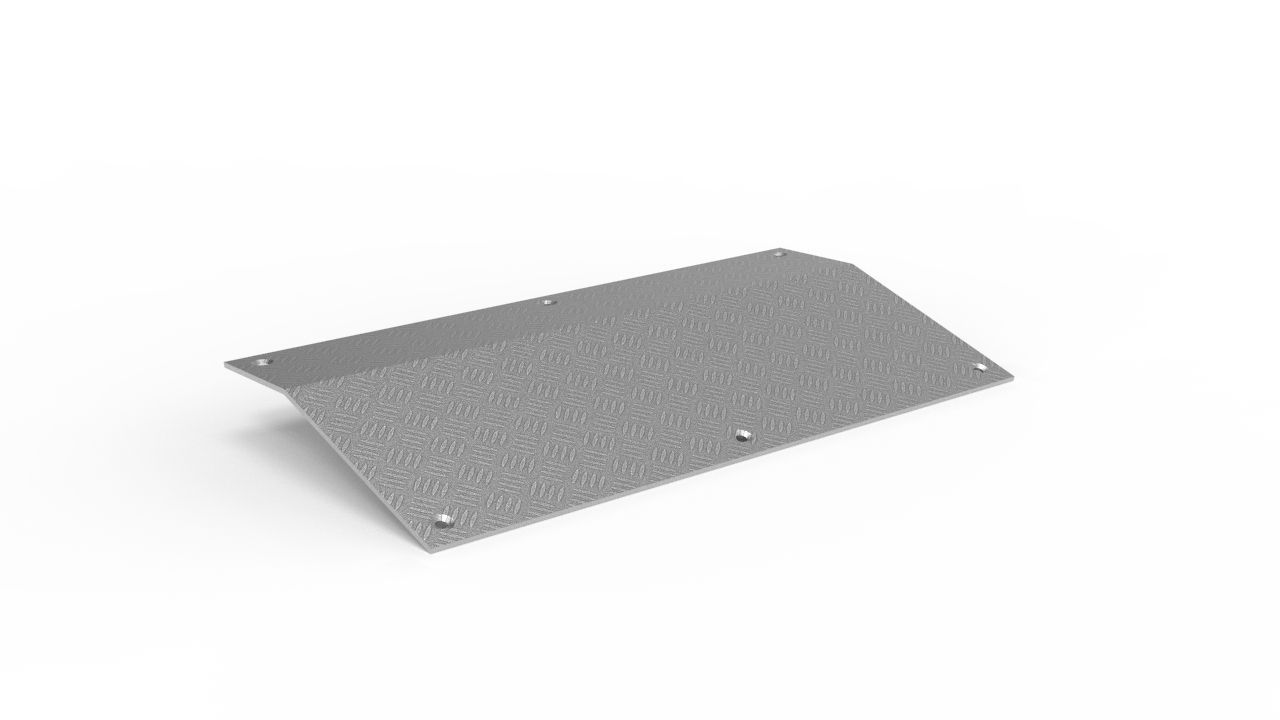

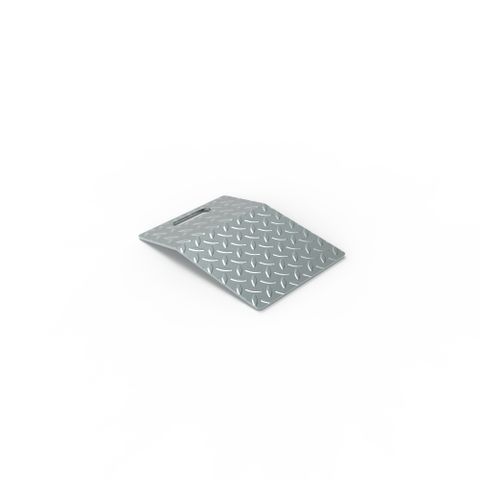

Our smallest kerb plate KP4129-G is designed to be easily lifted, transported, and stored in caravans, boats, and cars; it is the ideal choice for an easy-to-carry portable ramp. The mid to large kerb plates can accommodate Utility Carts, Warehouse Trolleys, and Wheelchairs with just one ramp. When used in pairs they allow Cars, Caravan, Boats, Trailers, and even medium sized Trucks to ascend kerbs and cross dipped driveways.

Load Ratings

Single Ramp Pair of Ramps Load Rating Fixing holes
KP4129-G Wheelbarrow, Mower, Motorcycle Car, Caravan, Boat, Trailer Maximum 1.5 tonne per axle or 750kg per wheel No fixing holes
KP4180-G Wheelbarrow, Mower, Motorcycle, Trolleys, Utility Carts, Wheelchair Car, Caravan, Boat, Trailer, Forklift Maximum 2.5 tonne per axle or 1250kg per wheel Six pre-drilled 12mm mounting holes to allow the plate to be fixed in place
KP6074-G Wheelbarrow, Mower, Motorcycle, Trolleys, Utility Carts, Wheelchair Car, Caravan, Boat, Trailer, Forklift, Motorhome, Light to Medium Trucks Maximum 3.5 tonne per axle or 1750kg per wheel No fixing holes
