Ball-Fence Roller Gates

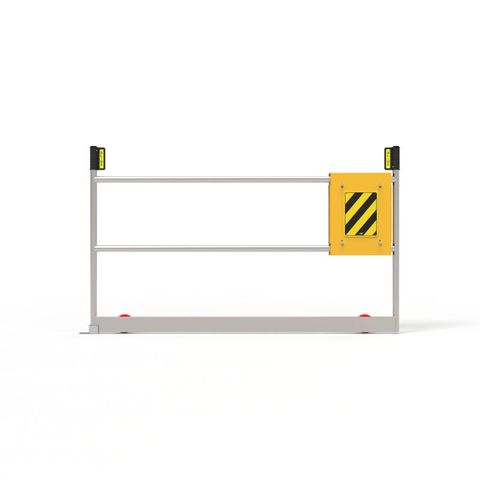

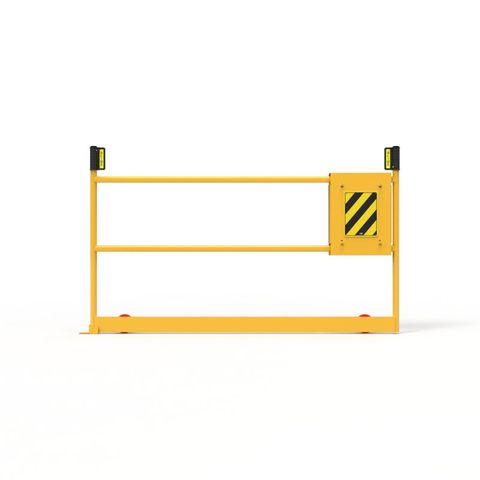

A rolling gate operating on a set of fixed nylon rollers incorporating a hand rail, knee rail and toe-board to comply with AS1657:2013. Manually operated with magnetic hold closed and available in two lengths. Model BFRG1500-PA for openings up to 1500mm and Model BFRG2500-PA for openings up to 2500mm. Compatible with most Ball-fence style hand rail Systems, it can be retro-fitted at any time. Ideal where there is no room for a swing gate.

Click and drag image to view 360˚

Product Features:

  • Use where a swing or boom gate can’t operate
  • Smooth roller operation with magnetic latch
  • Non-marking nylon floor rollers
  • Incorporates knee rail and toe board to AS1657:2013
  • Manually operated in 2 standard lengths
  • Can be retro-fitted to most ball type hand rails
Invalid Input
Please let us know your email address.
Invalid Input
Please select your state
Invalid Input
Invalid Input
Download PDF
Share this Product
  • Description: Manually operated roller gate
    Operation: Rolls left to right or right to left
    Construction: Nylon rollers in HDG steel housing
    Gate Travel: Linear requiring no swing arc
    Gate Stop: Supplied for open and closed
    Gate Latch: Magnetic hold closed
    Max Opening: 1500mm or 2500mm
    Mounting Type: Clamp to existing Ball-fence
    Gate Frame: 42.4mm diameter aluminium
    Gate Height: 1050mm
    Finish: Mill finish or powder coated
