Ball-Fence Industrial Hand Rail

Modular industrial handrail and kneerail system

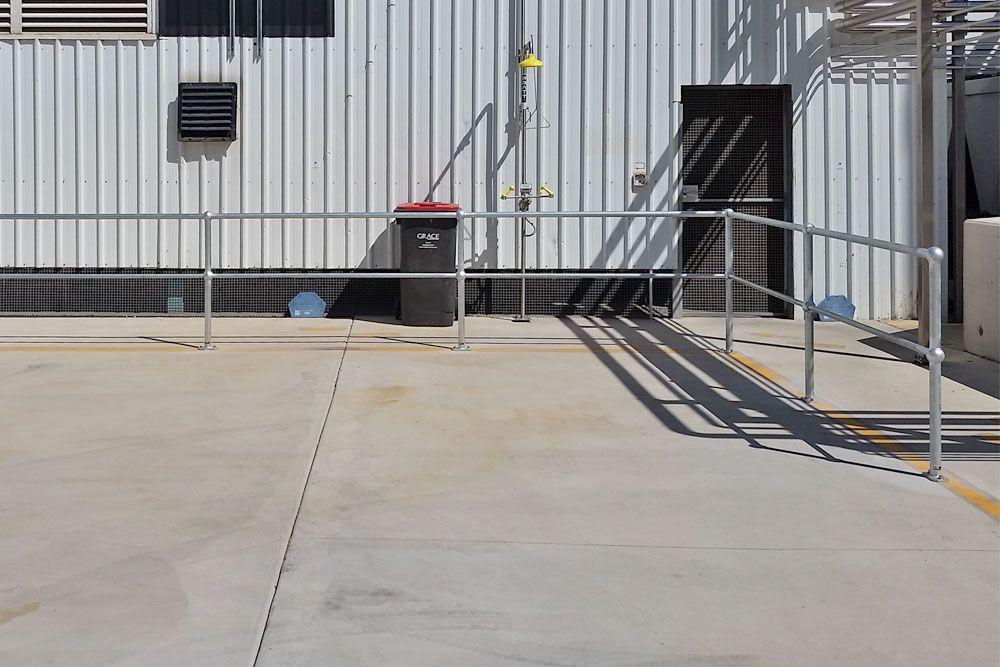

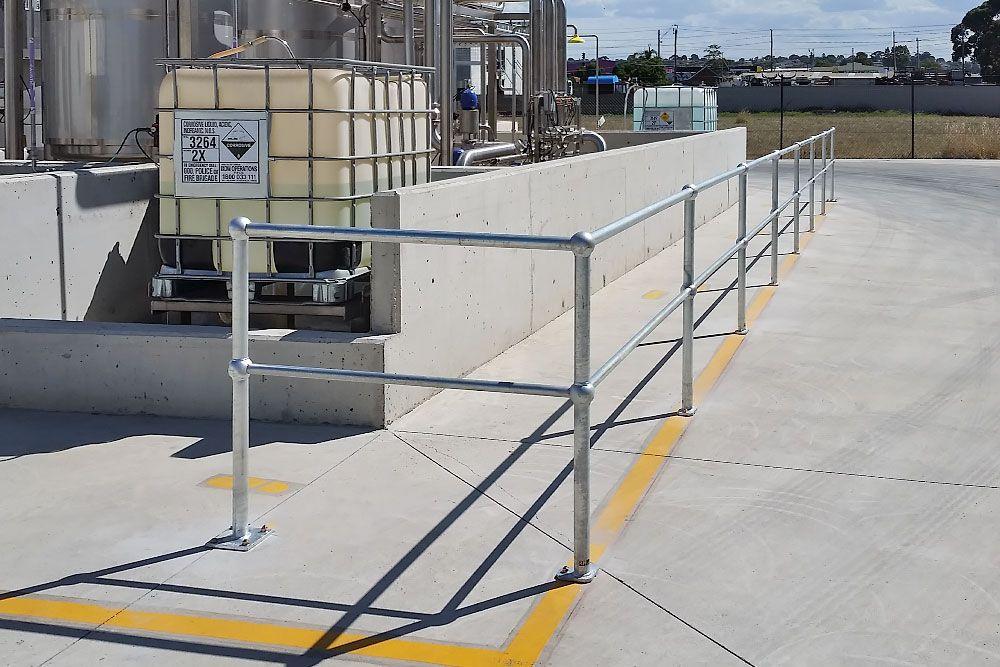

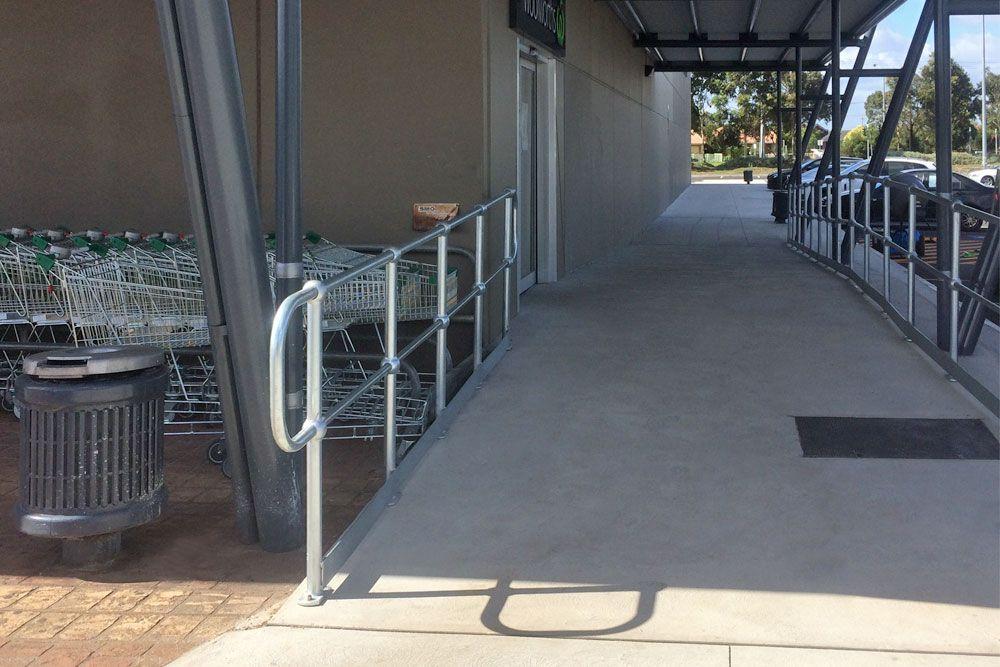

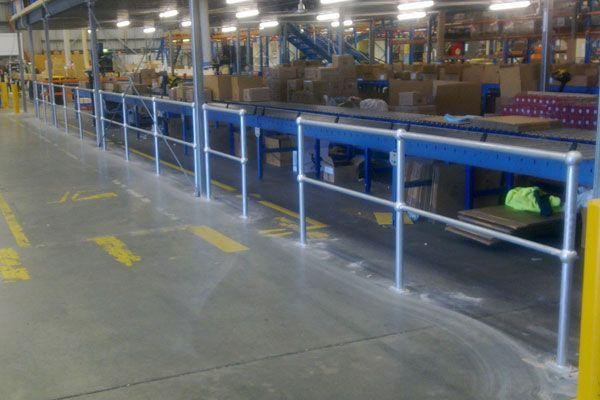

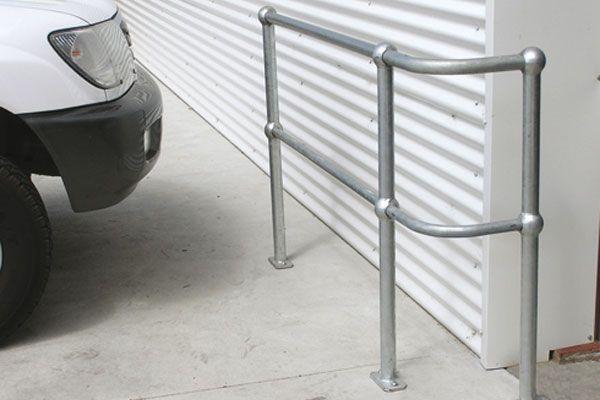

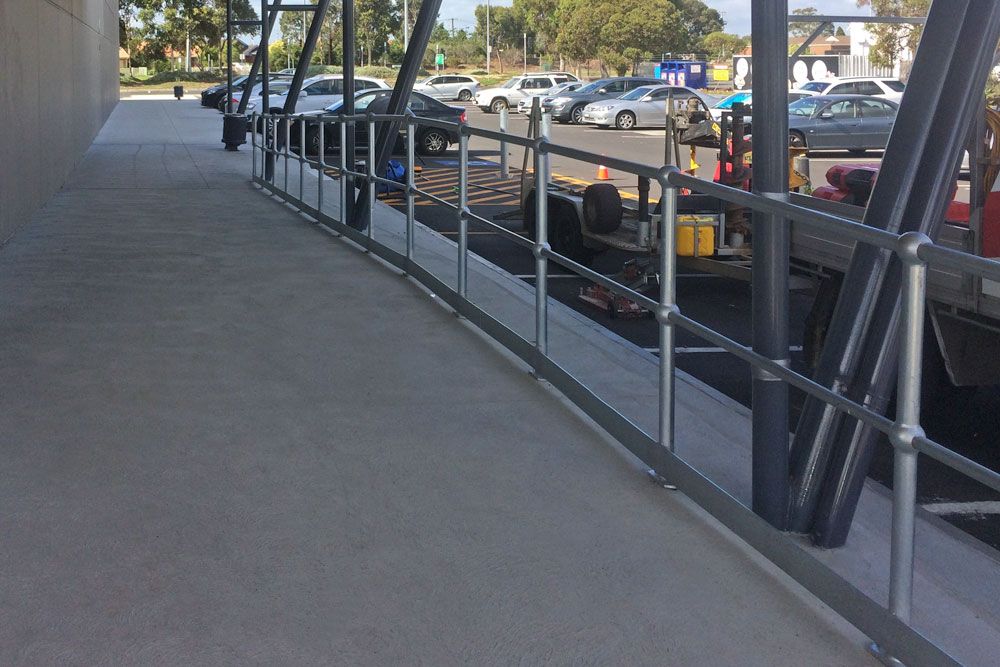

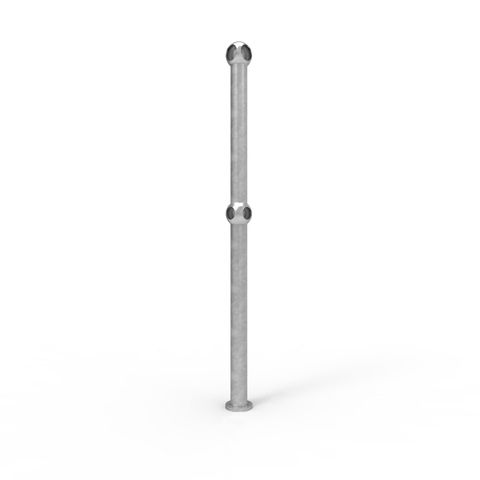

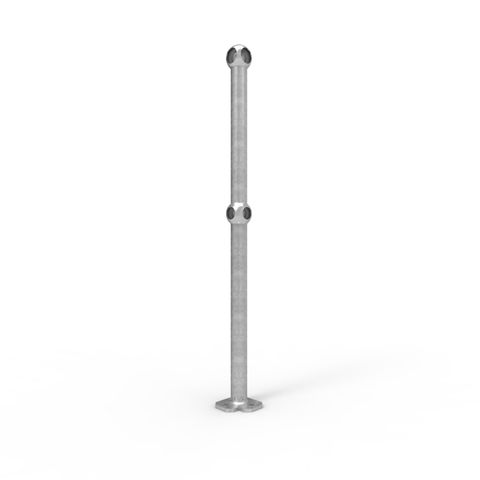

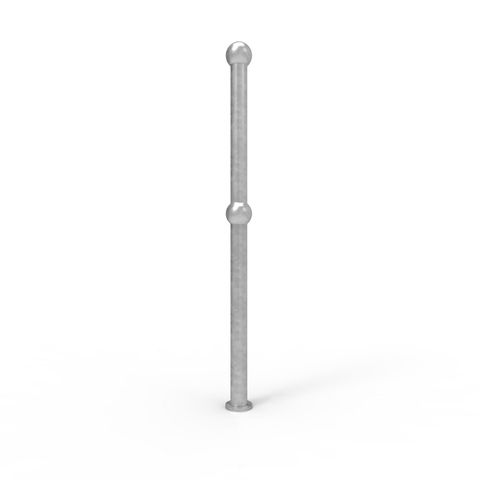

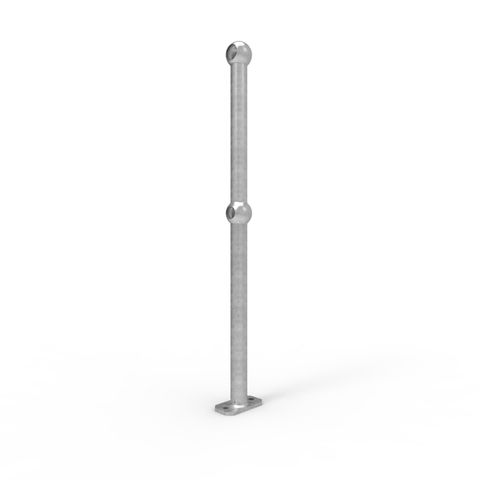

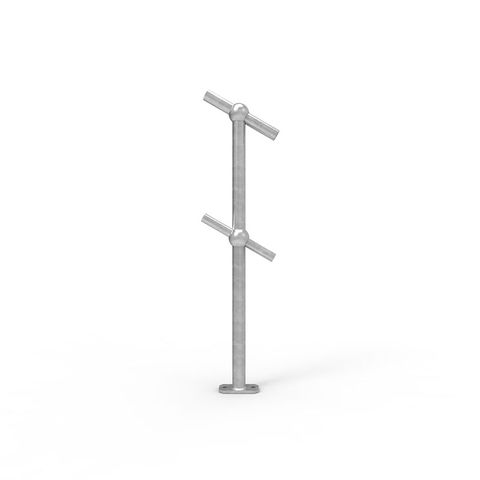

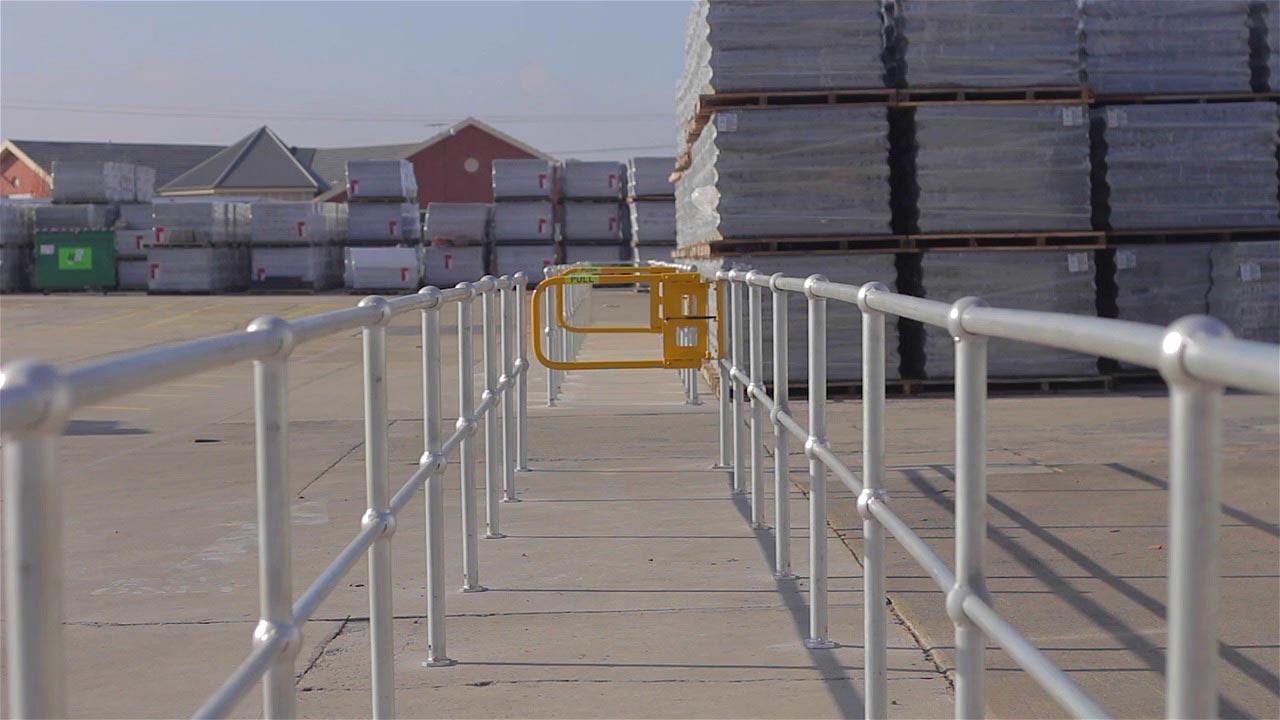

Ball-Fence is a modular industrial handrail system that includes stanchions in a range of configurations, a top (hand) rail and an intermediate (knee) rail. Design flexibility is a strength of the Ball-Fence.

Usually the Ball-Fence components are assembled on site. If required, they can be partially assembled in our factory and delivered to site in sections for simple fixing. (Charges apply).

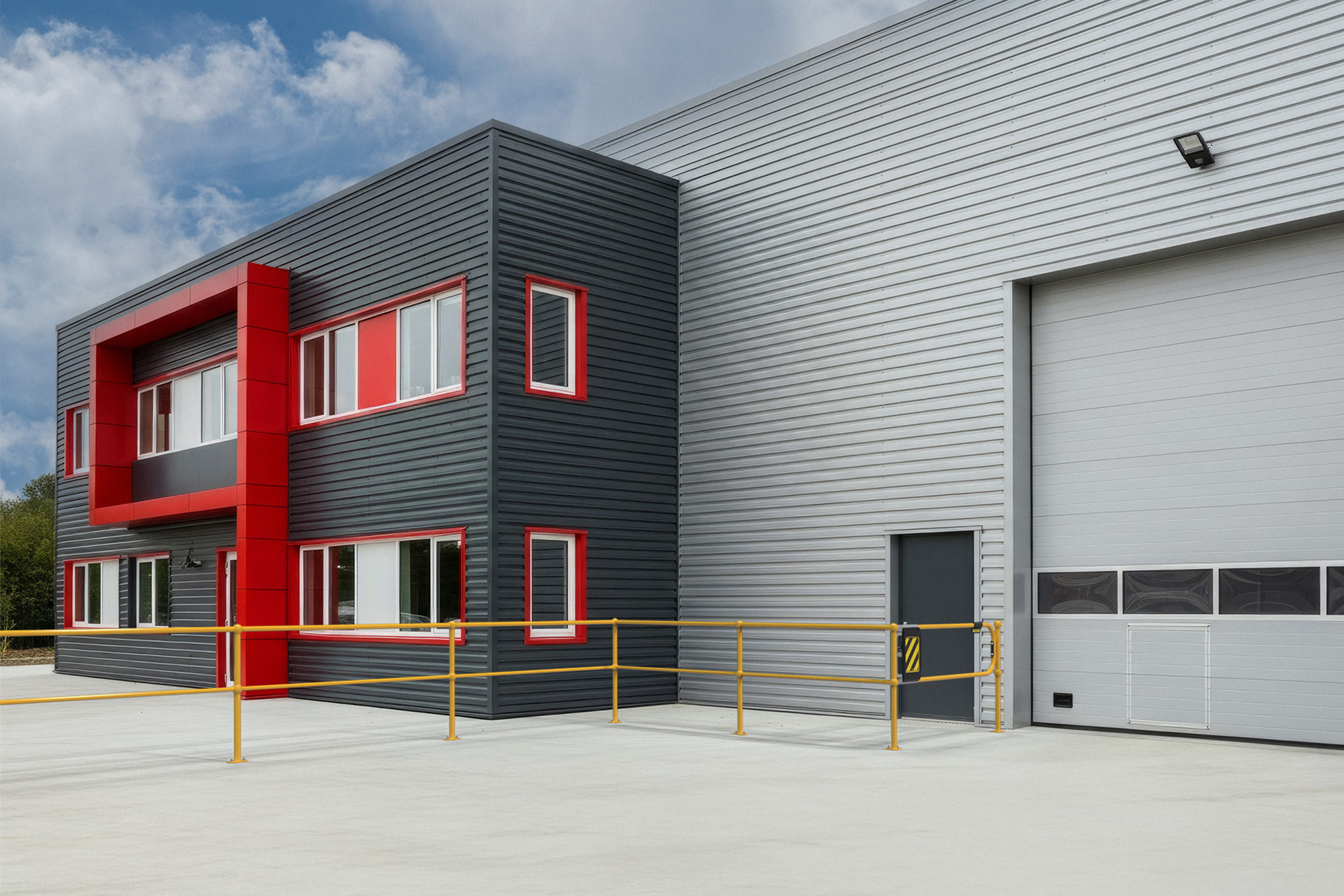

Galvanised & powder coated safety yellow finish option now available on request

Product Features:

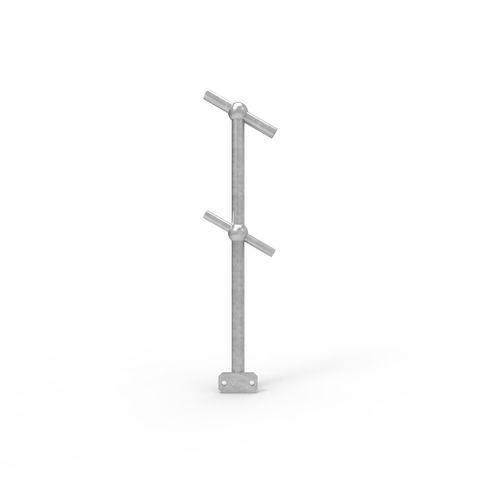

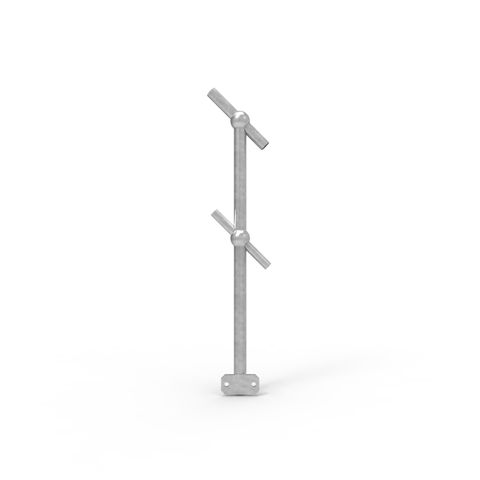

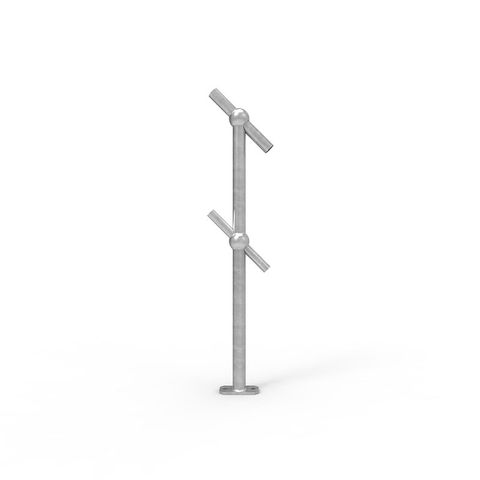

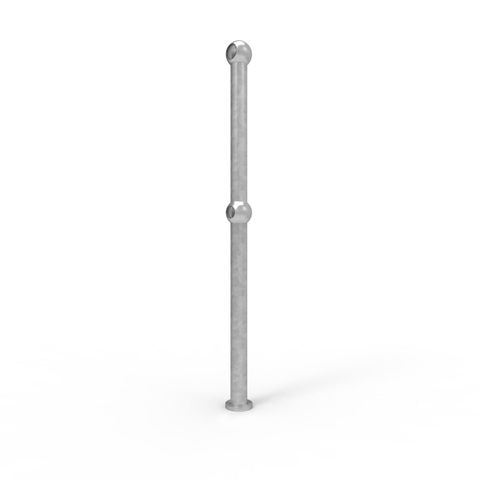

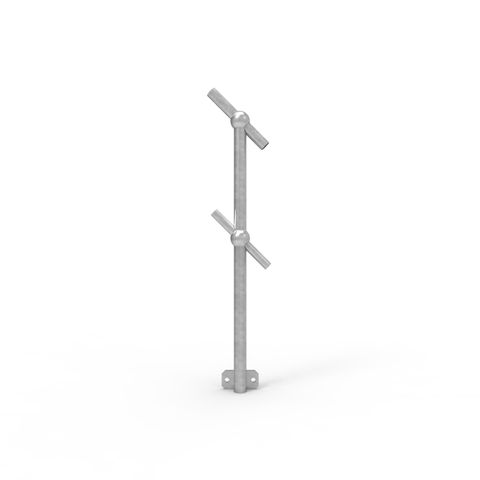

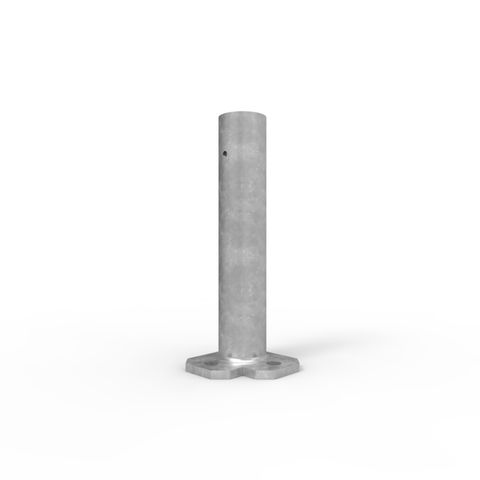

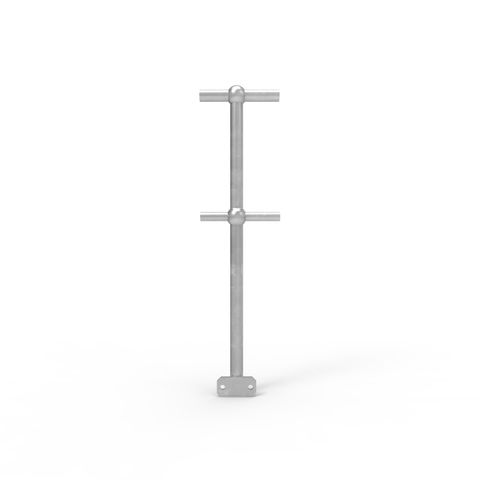

Modular industrial handrail system that includes stanchions in a range of configurations
Components are assembled on site or can be partially assembled in our factory and delivered to site in sections for simple fixing. (Charges apply)
Components are all hot dip galvanised
Complies to AS 1657:2018
Suitable for indoor and outdoor use

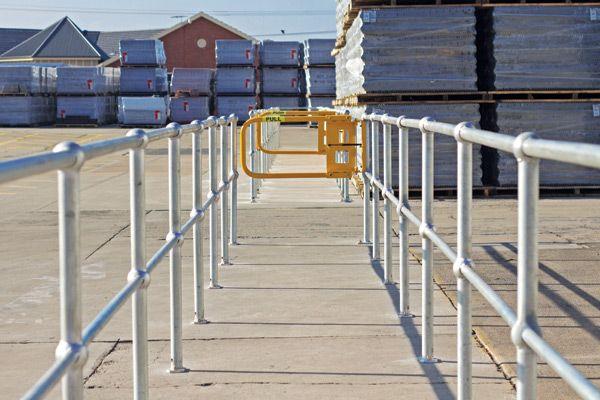

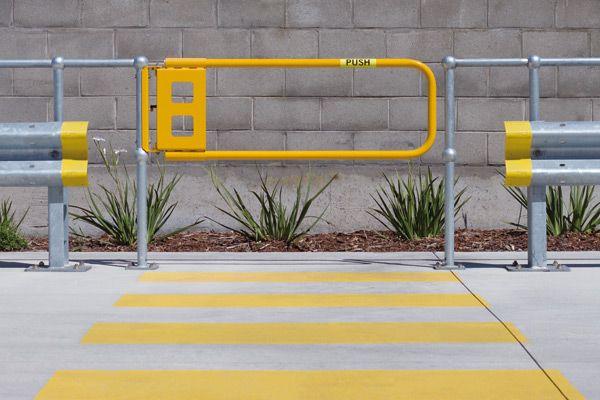

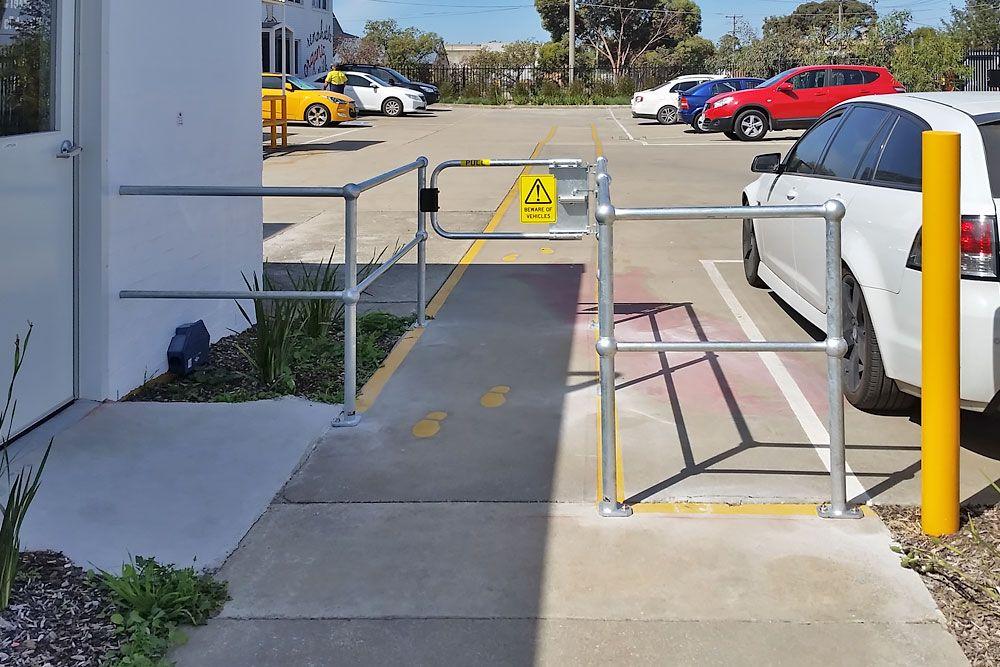

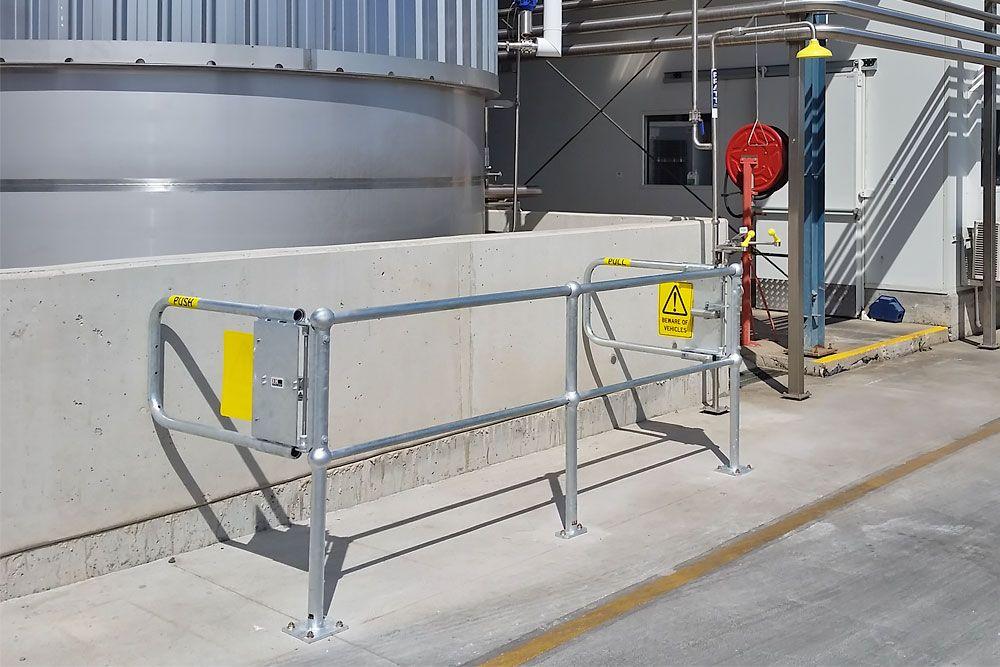

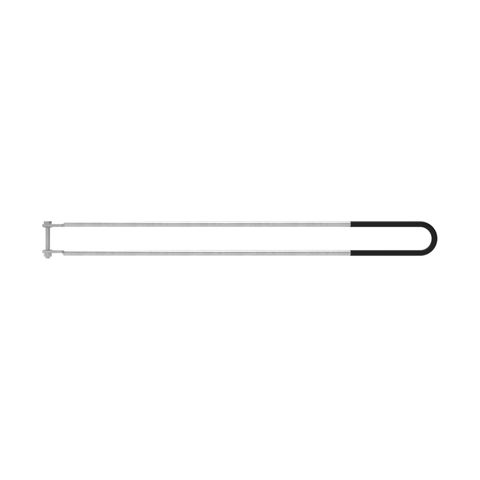

Self closing gates available
Galvanised & powder coated safety yellow finish option now available on request

Request Quote

Download PDF

Loading products…
Loading products…
Loading products…
Loading products…

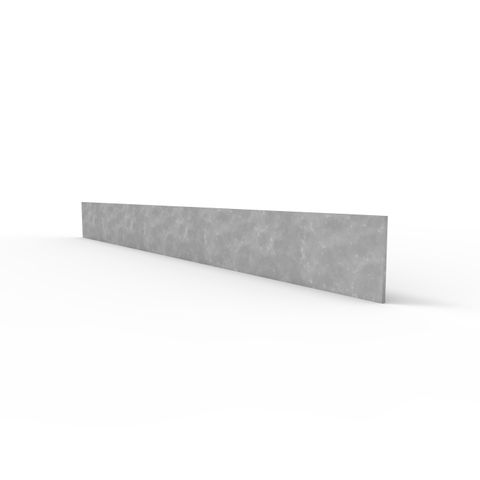

Toe Board Compatibility Chart

Clamp	ER Railing	PR Railing	NoWeld Railing	Ball Fence Railing**
TBC48-A
TBC63-A
TBC90-A

** If using the aluminium toe board range.

Description:	Tubular handrail system

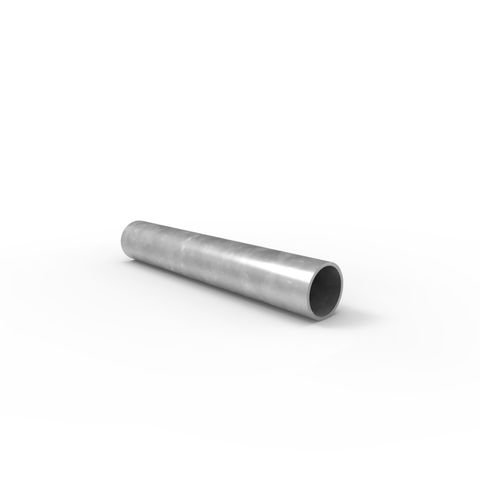

Size:	Post 48.3mm O.D. (40N.B.) Handrail 42.4mm O.D. (32 N.B.) Kneerail 33.7mm O.D. (25 N.B.)
Material & Finish:	Hot dip galvanised and Galvanised & Powder Coated Safety Yellow.
Height:	1017mm ground to handrail centre. 560mm ground to kneerail centre.
Spacing:	Max post spacing 2 metres centre to centre.
