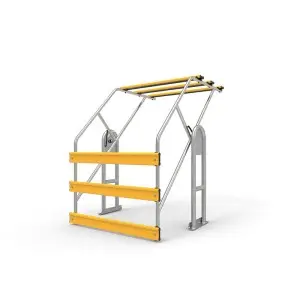

Mezzanine Double-Boom Gate

Pallet Safety Gate designed to promote safe delivery procedures onto mezzanines, elevated floors and loading bays

Mezzanine Gates are designed to promote a safe loading/unloading procedure onto elevated pallet drop areas like mezzanines and rack picking systems. The gate not only separates pedestrians from the forklift loading operation onto the mezzanine floors, they also secure the ledges of the loading bays to prevent unsafe fall accidents.

Click and drag image to view 360˚

Our mezzanine gates are available in kits that include posts, booms and hardware to create changing-access areas with dual, counterbalanced gates ensuring one gate is always in place to secure the docking ledge.

Not what you're looking for? We have more industrial gates to choose from here.

  • Description: Dual action safety gate.
    Operation: Geared with spring assistance.
    Construction: Steel frame with aluminium boom arms.
    Gate Swing: 90 degrees vertical.
    Opening Width: 1500mm / 2000mmm.
    Overall Width: 2000mm / 2500mm.
    Overall Depth: 1900mm (both models).
    Mounting Type: Surface mounted.
    Rail Type: Powder coated aluminium 145 x 40mm.
    Overhead Clearance: Dependent on working width.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Ask a question

  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

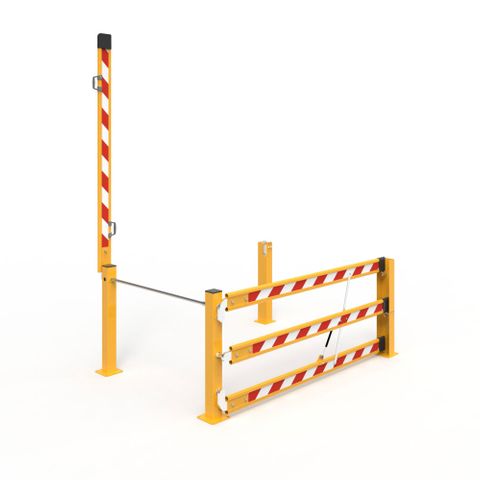

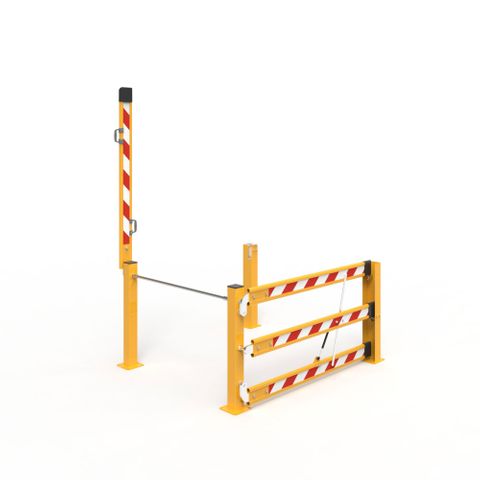

  • Mezzanine Roll-Over Gate
