Mezzanine Roll-Over Gate
Ensure your workers are safe and secure
The Roll-Over Mezzanine gate allows pallets to be safely moved to and from mezzanine floors and loading docks. It is specifically designed to eliminate exposed edges at all times and ensure operators are safe against the risk of falling.
It works on the simple principle of an evenly weighted pivoting frame so when one side is open the other is closed. It is available in two standard sizes but can be customised if necessary.
Features include a slam-proof dampened operation to take out any sudden movement and safety latches to ensure the gate cannot lower unexpectedly. It’s easy to install, very sturdy and has a perfectly smooth action. The advantage of this roll-over gate compared to conventional sliding access gates is increased safety and ease of use.
To operate, simply roll the gate back to expose the load area to the forklift operator. Place pallet on the load area and roll the gate into the closed position leaving the pallet accessible to be removed with a pallet jack or unstacked. Everybody’s kept safe with no exposed edges.
The Mezzanine Roll-Over Gate is safely balanced, rises and lowers smoothly with manual gas strut assistance and requires no exertion during operation.

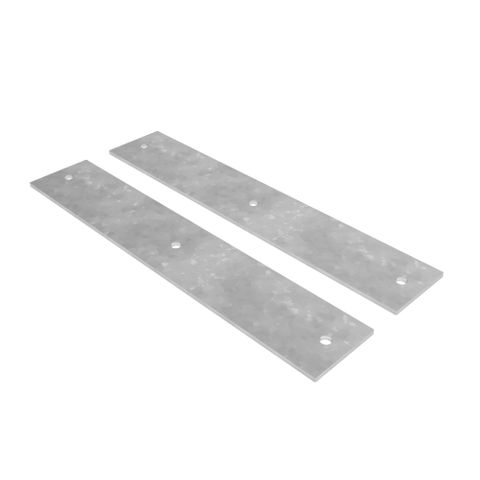

Ground fixings are not included. Please consult with our Barrier Group team for advice on what installation fixings will suit your application.
Mezzanine Roll Over Gate: Operational Features and BenefitsLoading/Unloading - Exposed Edge:
When the roll over gate is open to the exposed edge of the mezzanine level, pallets or goods are able to be safely positioned in or out of the gate via forklifts/scissor lifts from below. The opposite mezzanine level side remains securely closed, completely restricting access, and protecting employees from hazardous falls.Roll Over Position:
To access either side of the gate simply pull down, or lift up, to roll it over into the desired position. This action is aided by an internal slam-proof and weighted pivoting mechanism. The mezzanine gate is designed to be operated by a single person.Loading/Unloading - Mezzanine Level:
When the gate is open to the mezzanine level, goods can be safely loaded/unloaded while the opposite side remains in a closed position. Both employees and goods are protected from falling to the ground level below.
Mezzanine Roll-Over Gate1 to 3 of 3 results
Part No. Dimensions Standard Rail length MAX Recommended Rail Length MIN Recommended Rail Length Clear opening INCLUDES Base Plates Clear opening EXCLUDES Base Plates Max Pallet Depth Floor to top of rail MZR1515 1666x2400x2087mm 1500mm 6000mm 1500mm 1355mm 1355mm 1760mm 990mm MZR2615 2766x2400x2087mm 2600mm 6000mm 1500mm 2455mm 2455mm 1760mm 990mm
