Telescopic Boom Gate

Click and drag image to view 360˚

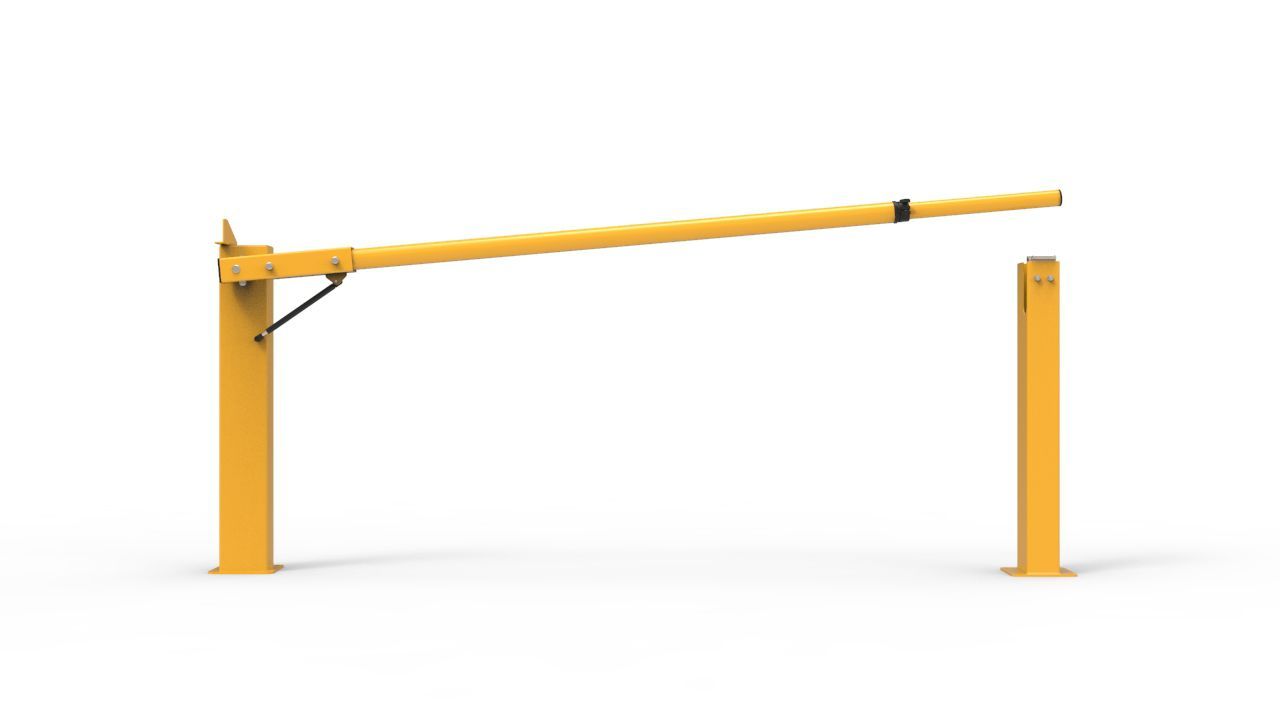

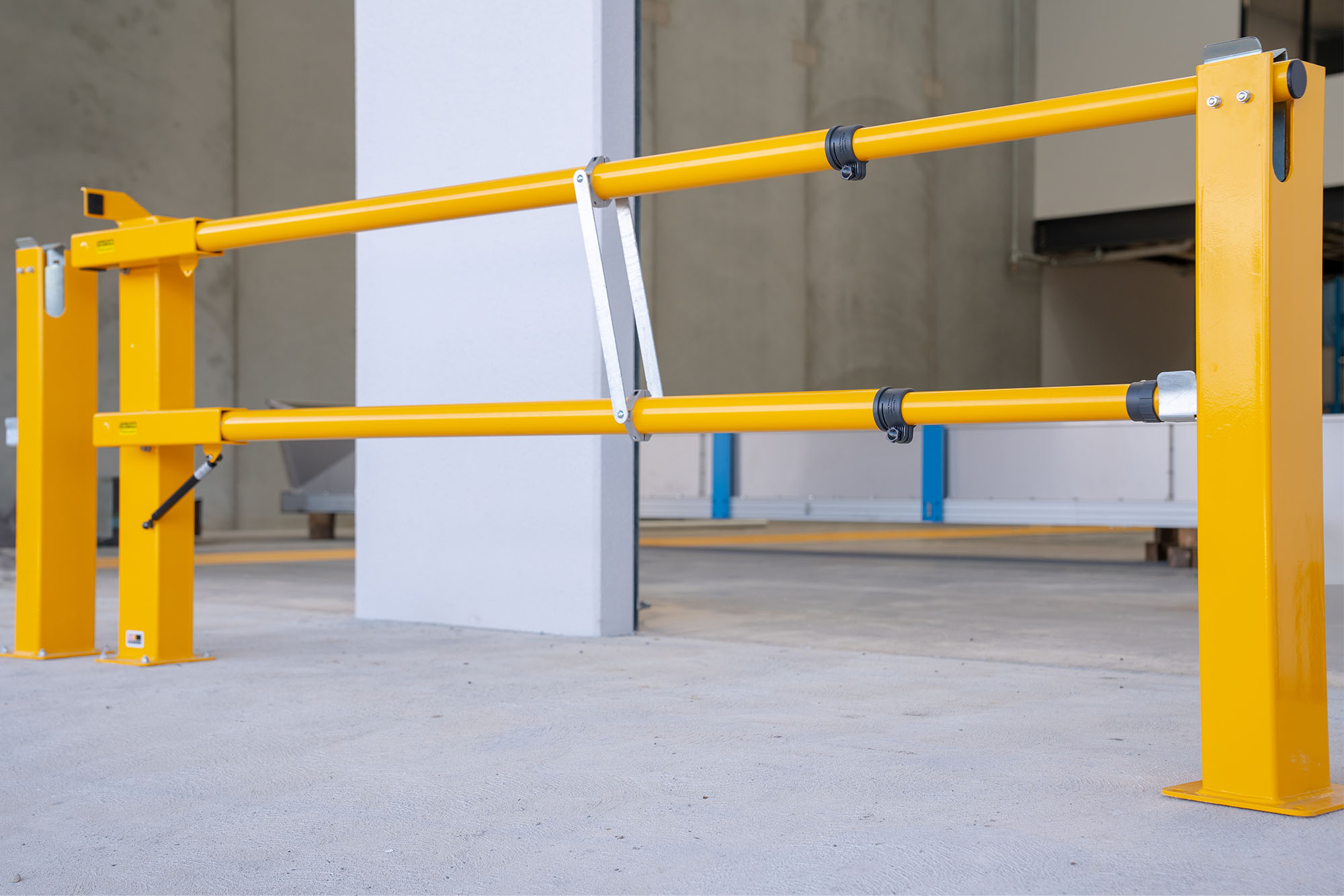

The TBG3800 is a strut assisted light boom gate designed for applications where there is restricted overhead space to accommodate a fixed length boom, or insufficient room for a swing gate. The telescopic boom can be locked off at a fixed length if the available height allows or retracted as the boom is raised. The gate can be used to span openings from 2.3 to 3.8 metres.

Product Features:

  • Ideal for restricted overhead space
  • Use where insufficient room for swing gate
  • Can extend from 2.3 to 3.8 metres
  • Boom can be locked at any length
  • Includes receiver post with lockable latch
  • Hi-viz powder coated yellow finish
Download PDF
Download Installation Procedure
Invalid Input
Please let us know your email address.
Invalid Input
Please select your state
Invalid Input
Invalid Input
Invalid Input
Share this Product
  • Description:

    Telescopic light boom gate.
    Operation: Manual lift with gas strut assistance.
    Construction: Steel posts with aluminium rails.
    Gate Swing: 90 degrees vertical.
    Gate Stop: Built-in.
    Receiver Post: Included (optional wall mount receiver).
    Max. Opening: 3825mm.
    Min Opening: 2325mm.
    Mounting Type: Surface mounted posts.
    Rail Type: Aluminium telescopic 50dia. inner 63dia. outer.
    Rail Height: 940mm to the centre of the rail.
    O/H Clearance: 3450mm.
    Finish: Powder coated safety yellow.
