316 Stainless Steel Round Bollards
Architectural designer stainless steel bollards

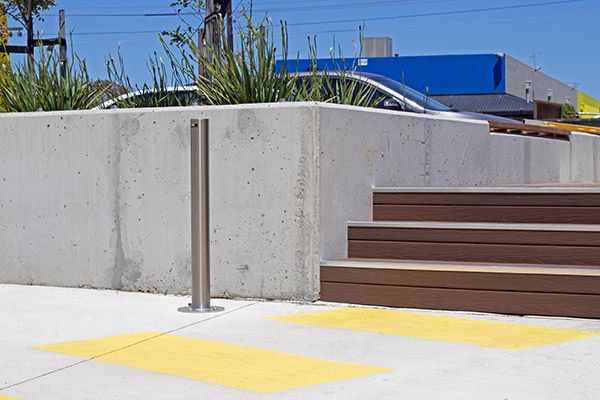

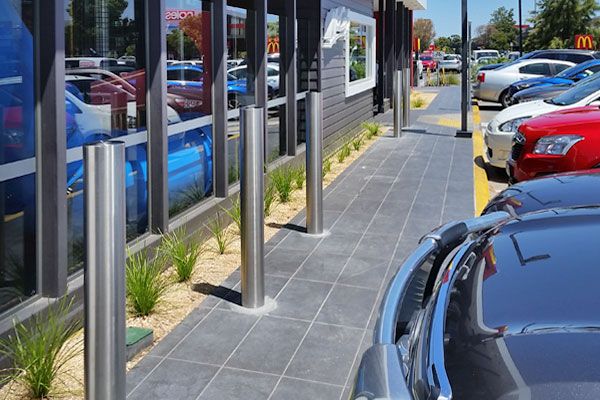

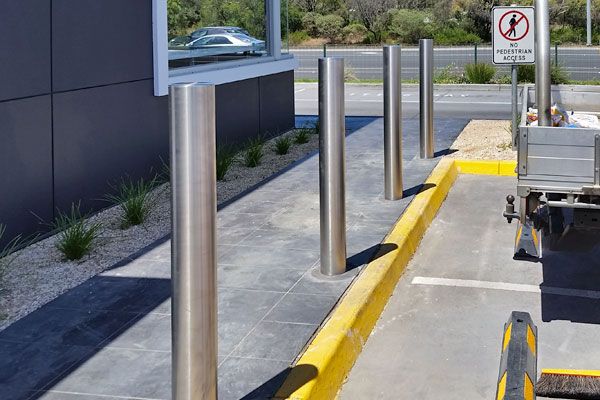

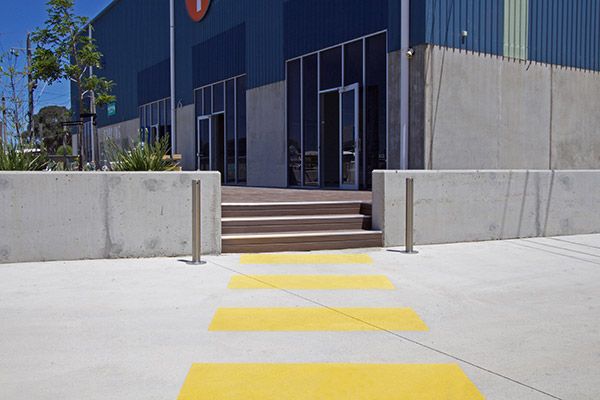

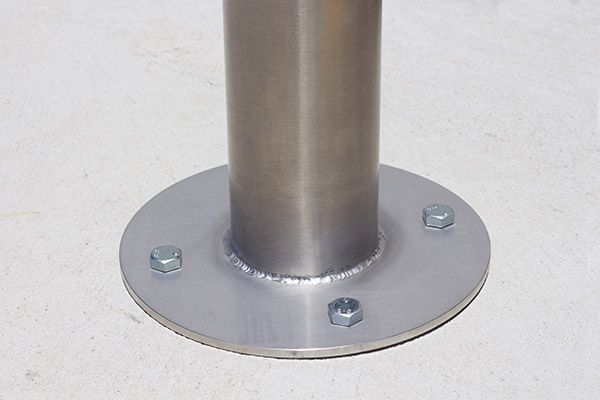

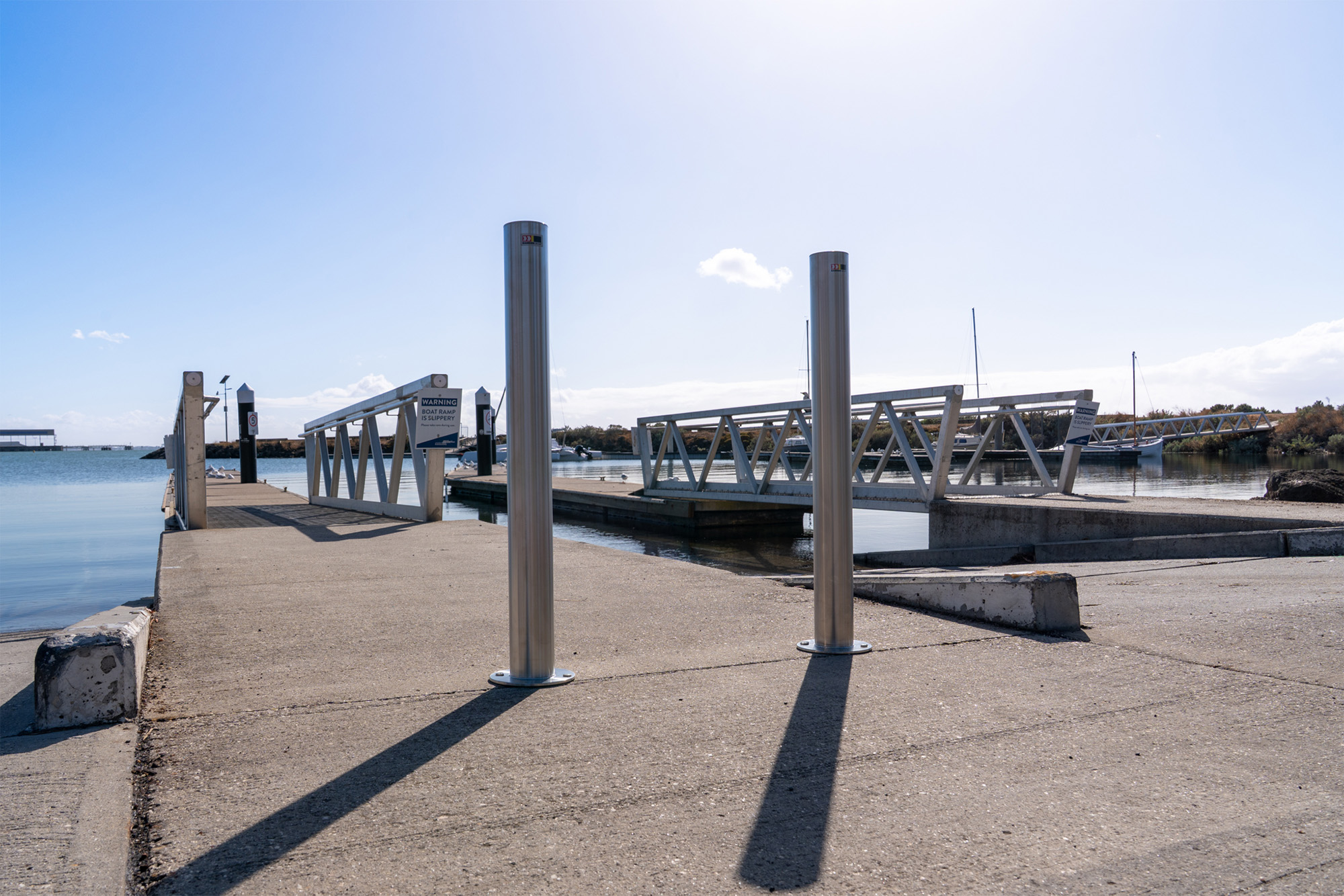

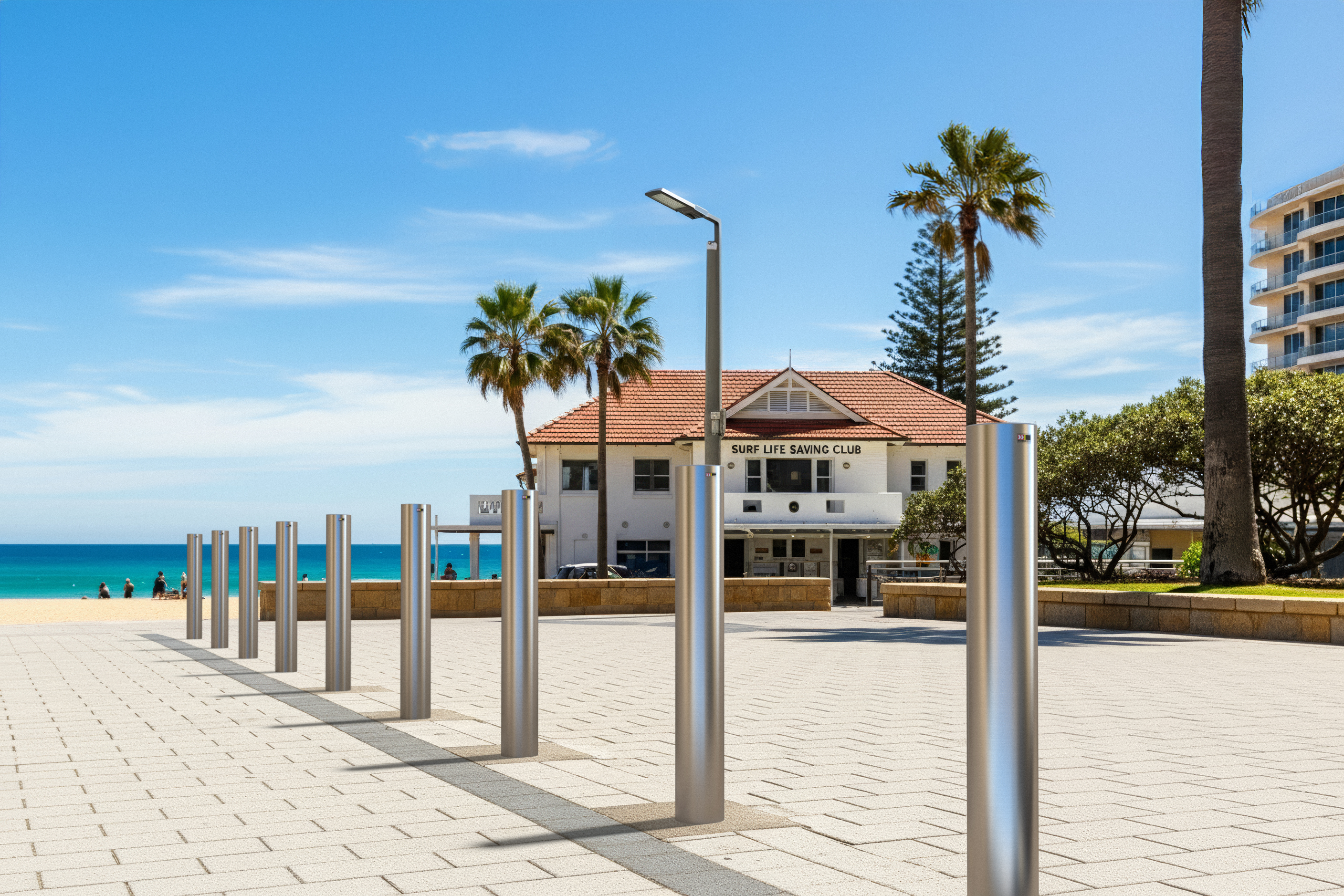

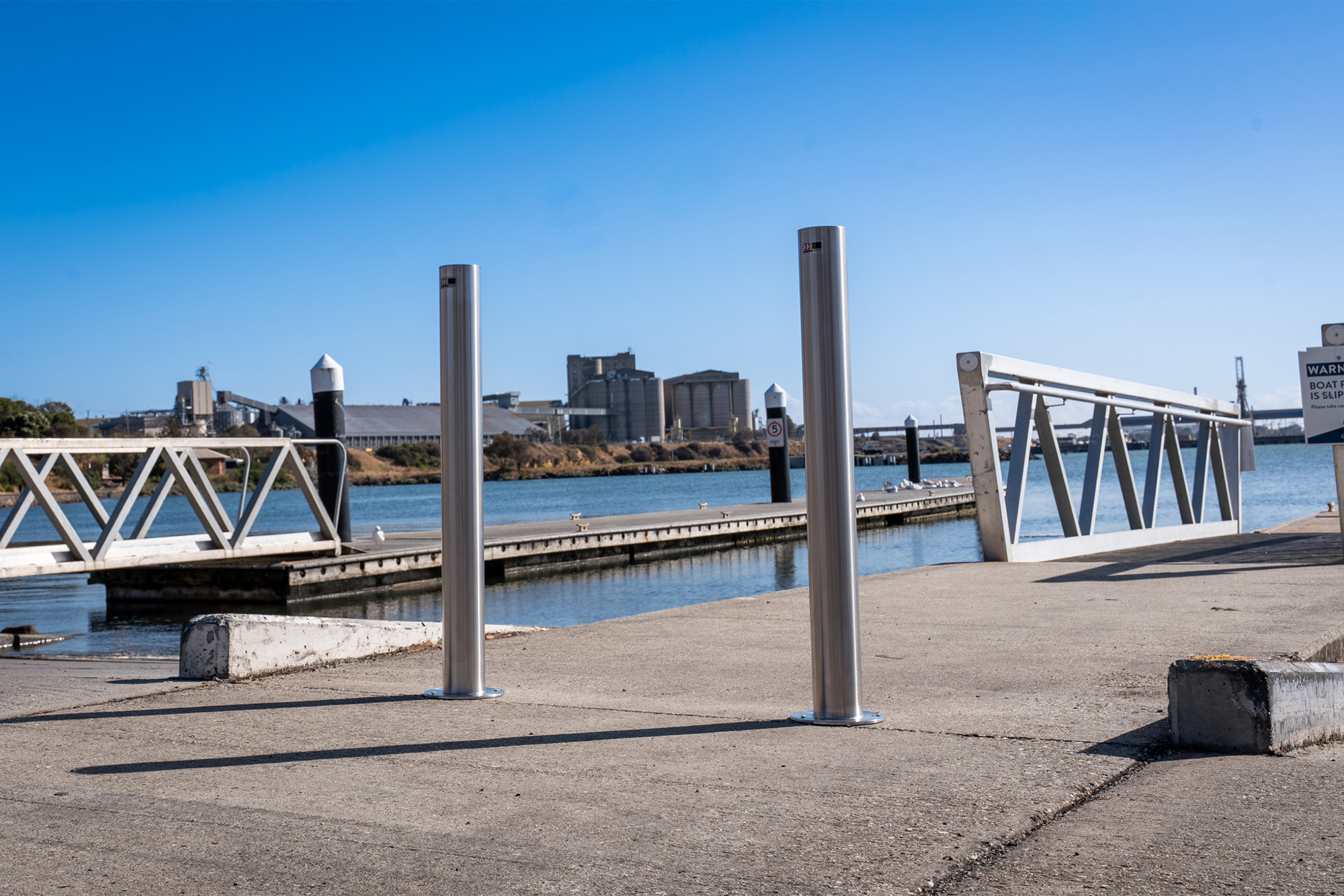

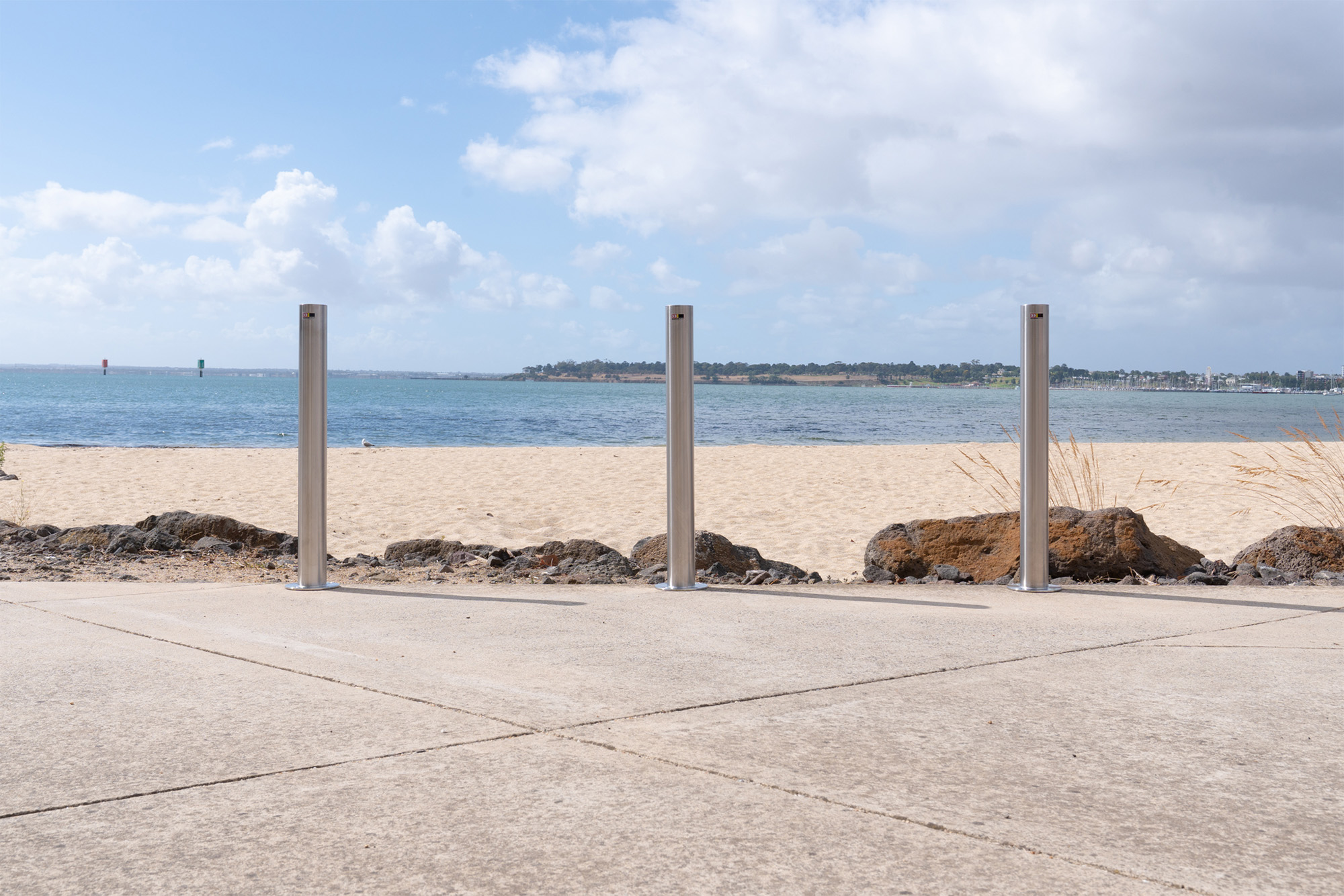

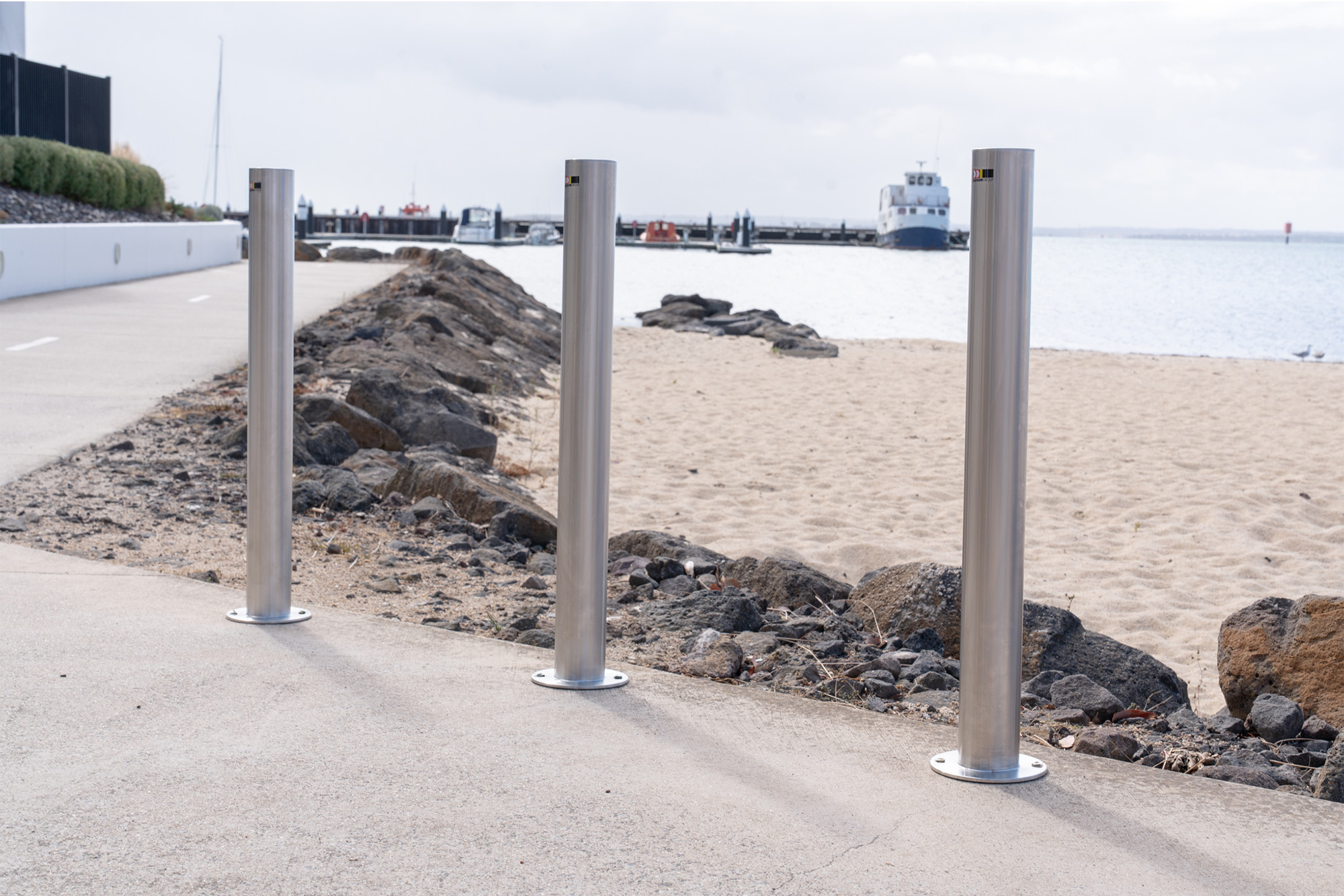

Our round stainless steel bollards are offered in three designs: below ground for installation into a concrete footing, core drilled for installation into a core drilled hole using epoxy adhesive, or surface mount for bolted installations.
Manufactured from marine grade 316 stainless steel these bollards are all finished with No. 4 mechanical finish. 316 grade is recommended for installation near coastal areas to minimise the risk of tea staining and to ensure the bollards maintain a high quality appearance over many years.

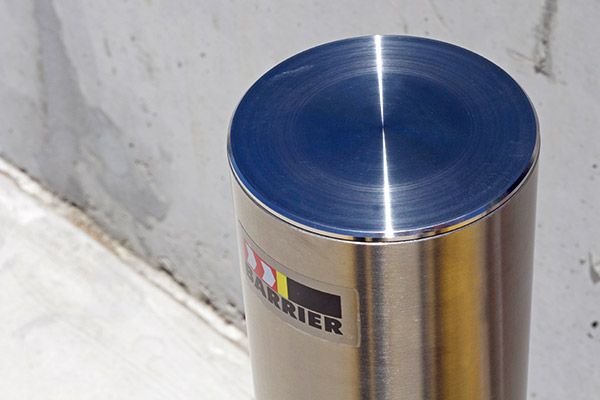

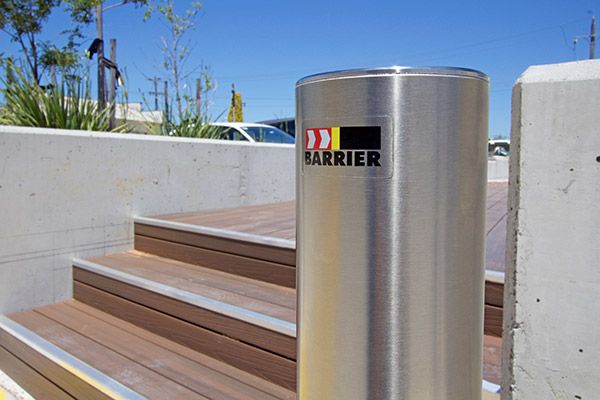

Our stainless steel bollards have a machined flat cap. This helps present a high quality appearance required for architectural environments. For the ultimate high quality presentation, polished stainless steel skirts are available as an option to cover the base plates and fixings.

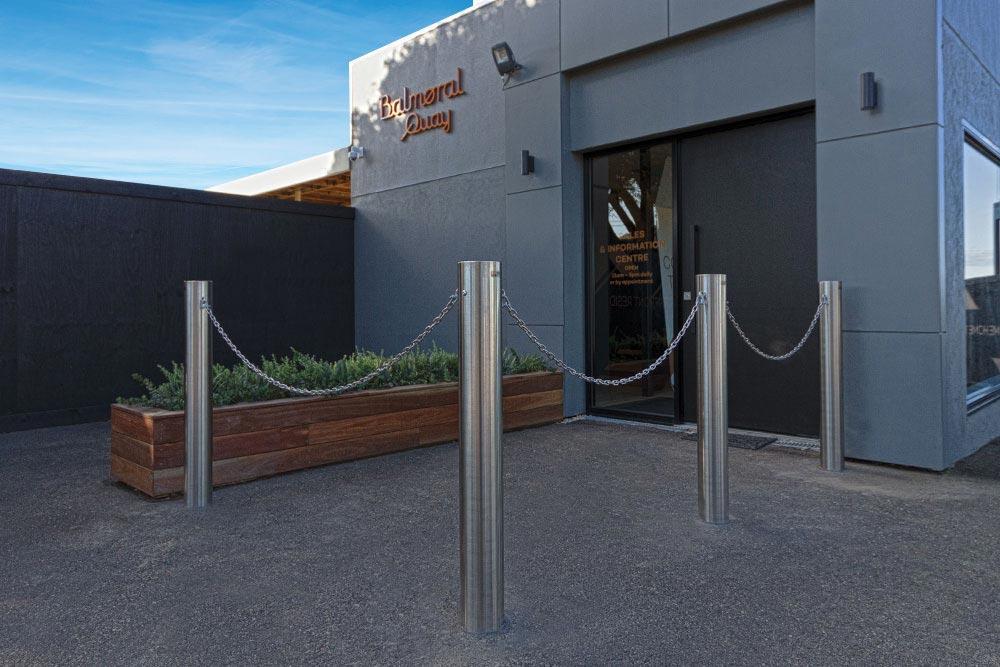

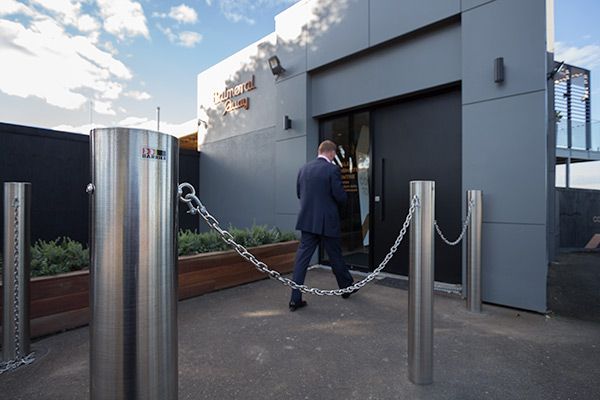

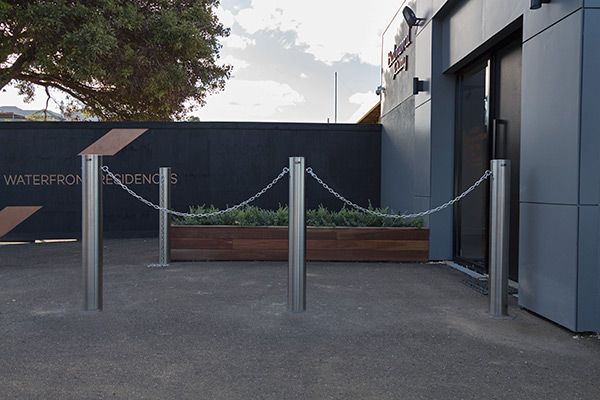

Optional chain rings are available for connecting chains or ropes. Chain ring-kits are sold as pairs and can also be purchased separately for retro fitting to existing bollards by drilling and tapping M10 threads as required.
Eliminate complexity and ensure compliance with our complete, end-to-end service offering.
Partner with a trusted leader in traffic control and property protection solutions. Contact us today to discuss your project's specific requirements and request a free on-site assessment.
| Application | Typical Chloride Exposure | Recommended Grade |
|---|---|---|
| Surf Zone (< 100 m from breaking surf or direct sea spray) |
Very High | 316 |
| Marine Fringe (100–500 m) |
High – Moderate | 316 |
| Industrial Chlorides (Chemical plants, wash down areas) |
Variable but often High | 316 |
| Commercial Chlorides (Pool decks, hospitals) |
Variable but often High | 316 |
| Coastal Towns (~500 m – 2 km) |
Moderate | 304 or 316 |
| Near-coast (2 – 5 km) |
Low – Moderate | 304 or 316 |
| Inland Urban (> 5 km) |
Low | 304 or 316 |
Product Features:
- Ideal for high-end architectural applications.
- 316 grade polished stainless steel.
- Available in 90 or 140mm surface mount, new concrete or core drilled models.
- Machined flat cap.
- Optional cover skirts and chain ring kits available.
Request Quote
-

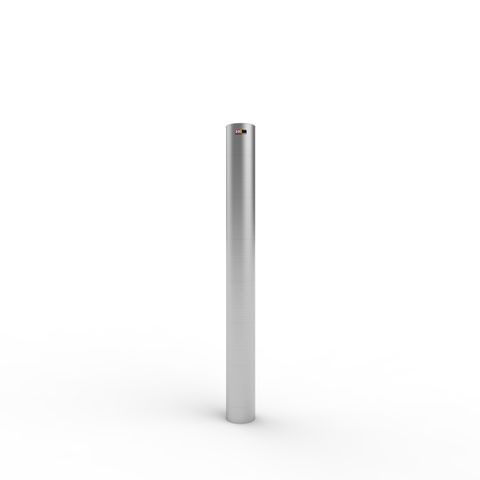

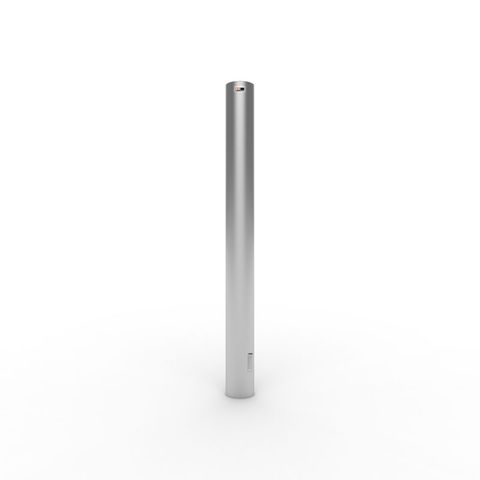

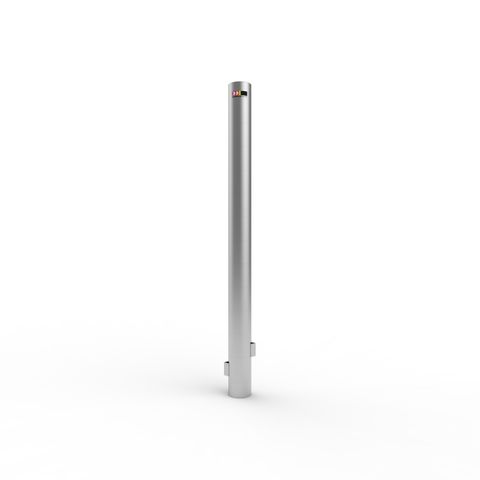

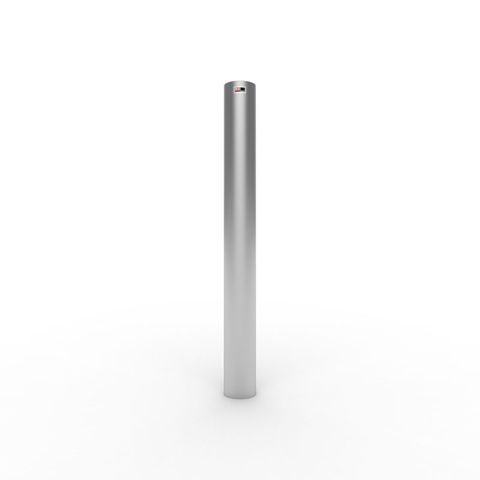

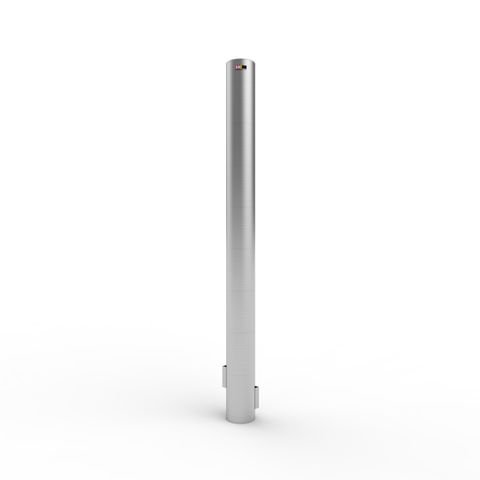

Below Ground
Loading products…

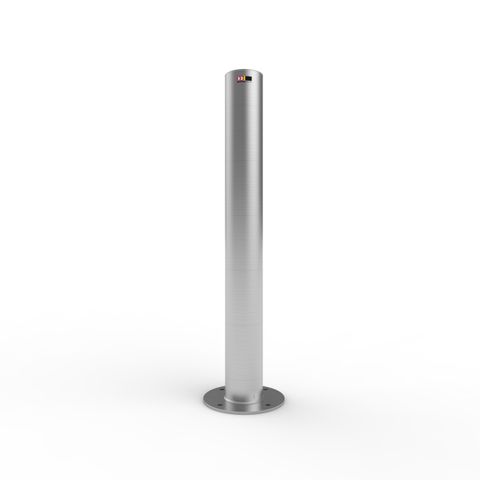

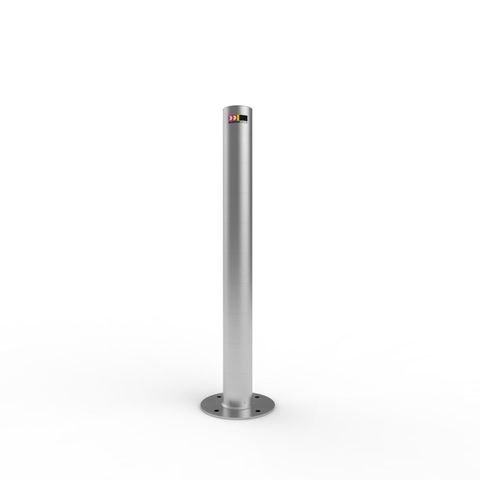

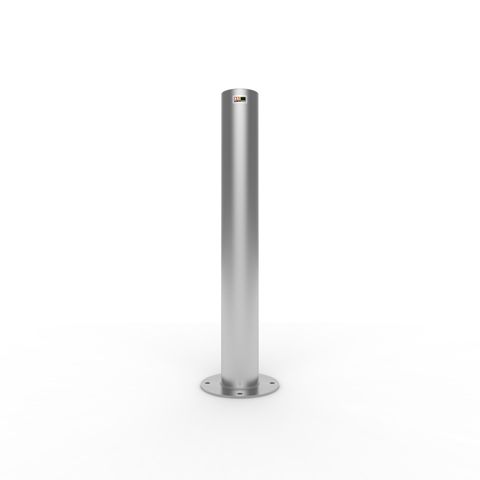

Surface Mount
Loading products…

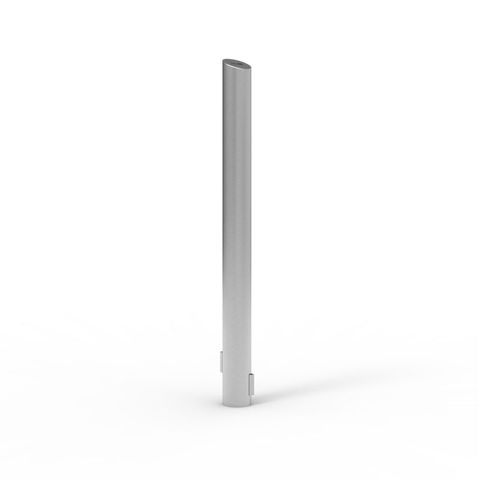

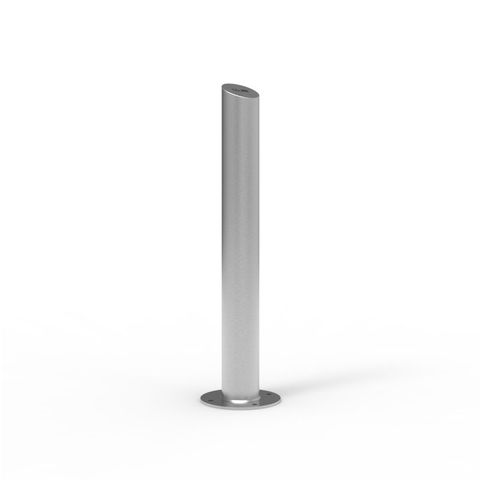

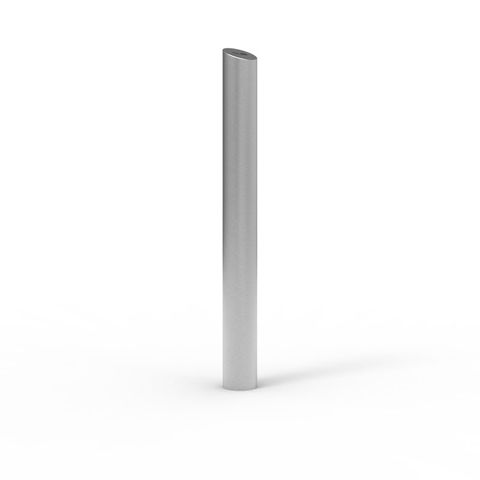

Angled
Loading products…

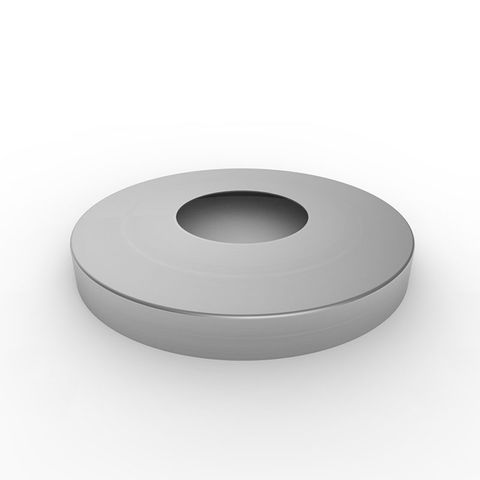

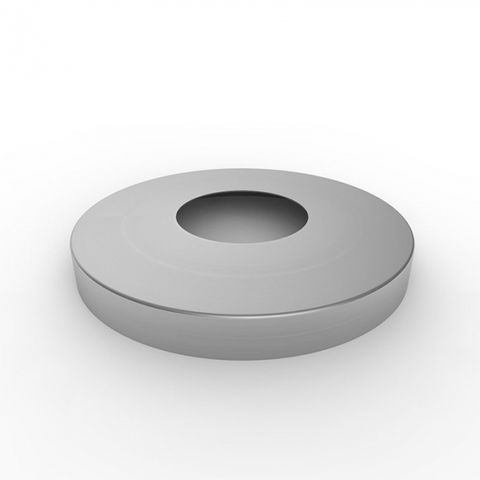

Cover
Loading products… -
Part No. Style Bollard Diameter Height above ground Depth below ground Wall thickness Base plate diameter Base plate thickness Kgs Finish C90SM-SS 1 90 900 – 3 170 6 7.2 SS C90BG-SS 2 90 900 300 3 – – 7.9 SS C140SM-SS 1 140 1200 – 3 220 8 14 SS C140BG-SS 2 140 1200 300 3 – – 15.5 SS C168SM-SS 1 168 1200 – 3 250 8 18.5 SS C168BG-SS 2 168 1200 300 3 – – 21.8 SS COV90-SS316 – 90 30 – 1.5 170 – 0.45 SS COV140-SS316 – 140 30 – 1.5 220 – 0.65 SS Note: All dimensions in mm. Finish: 316 Stainless Steel (SS).
-
