Bump Rail

Bump Rail

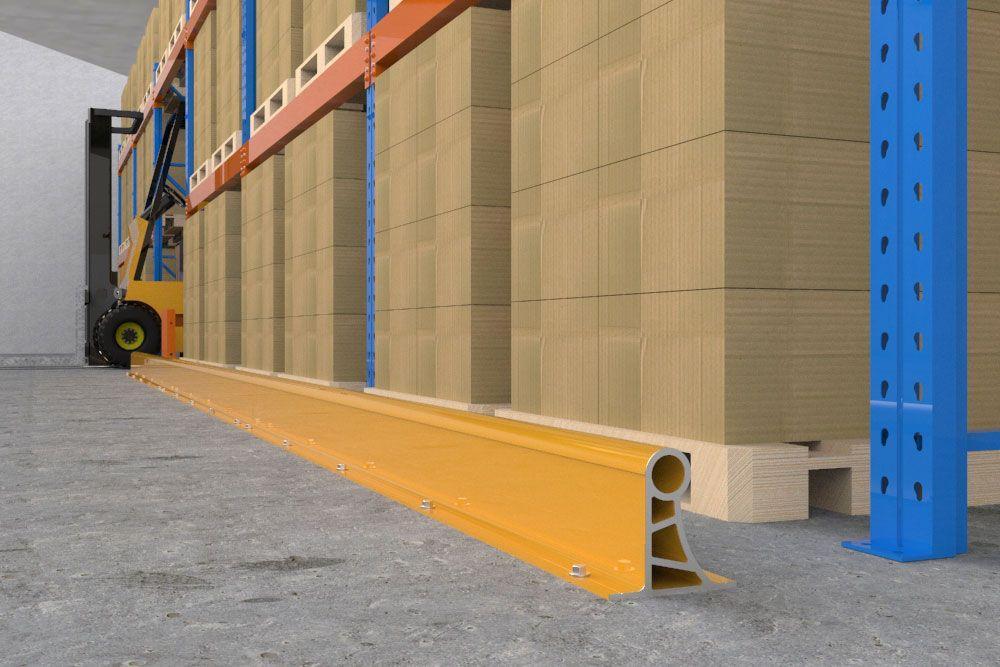

Bump Rail is a high strength aluminium extrusion that weighs less than half the equivalent steel profile per lineal metre. Designed with a dual personality, Bump Rail can be used as an asset protection railing when used flat side toward the impact. In this instance the flat face offers maximum resistance to wayward forklifts absorbing any impact across the entire reinforced face.

Alternatively, when faced with the curved side to an impact Bump Rail is designed for use as a truck or machinery wheel stop, the rounded top and curved face offering a higher contact point for the vehicle wheels. At 2400mm long it is the right width for most trucks. Fixing points at either end have been strategically positioned at the point of impact 275mm apart to ensure maximum hold-down.

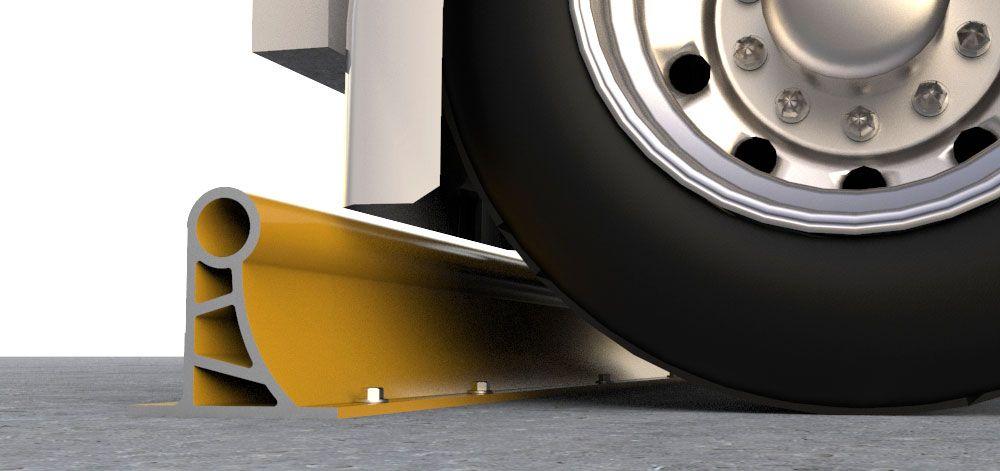

Bump Rail used as a truck stop

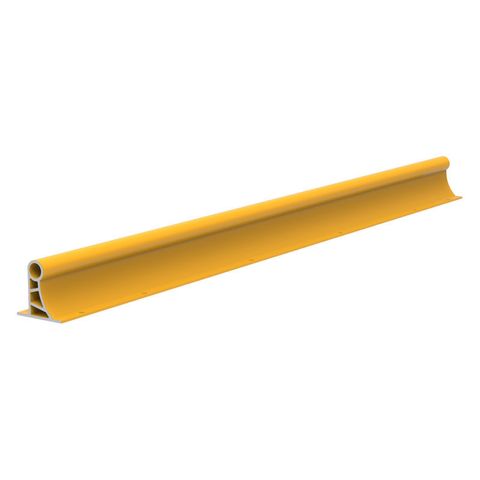

  • Description: Super heavy duty aluminium bump stop

    8mm thick aluminium extrusion

    Installation: Pre-drilled fixing holes
    Dimensions:    165 x 165 x 8mm x 2.4 metres long
    Total weight:  34kgs per 2.4 metre length
    Finish:  Safety yellow powder coat
