Self-Closing Swing Gate

Click and drag image to view 360˚

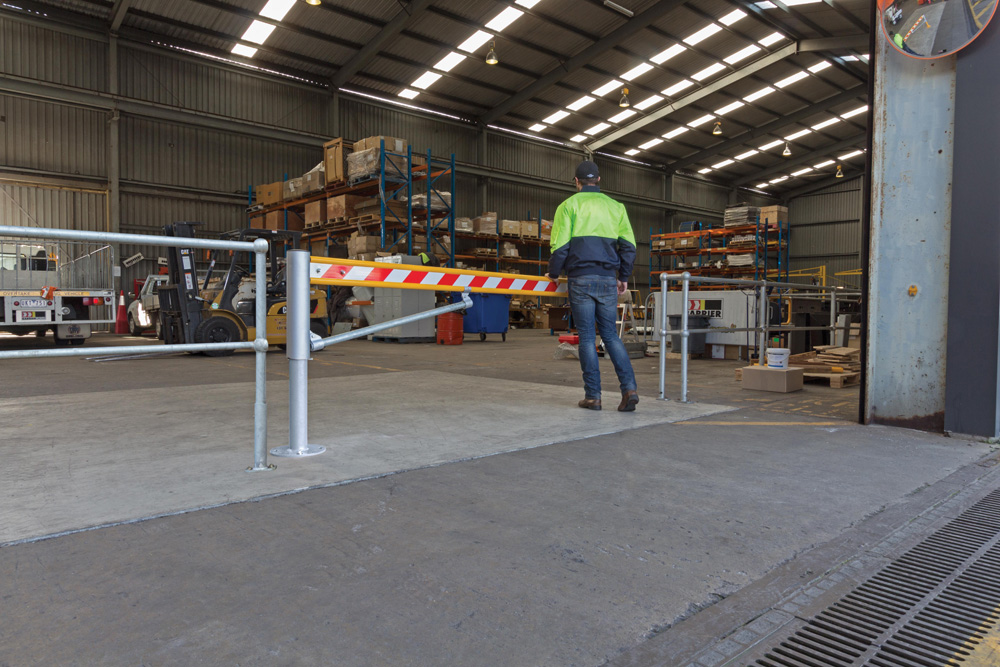

Industrial Gate for use in warehouses, factories and car parks

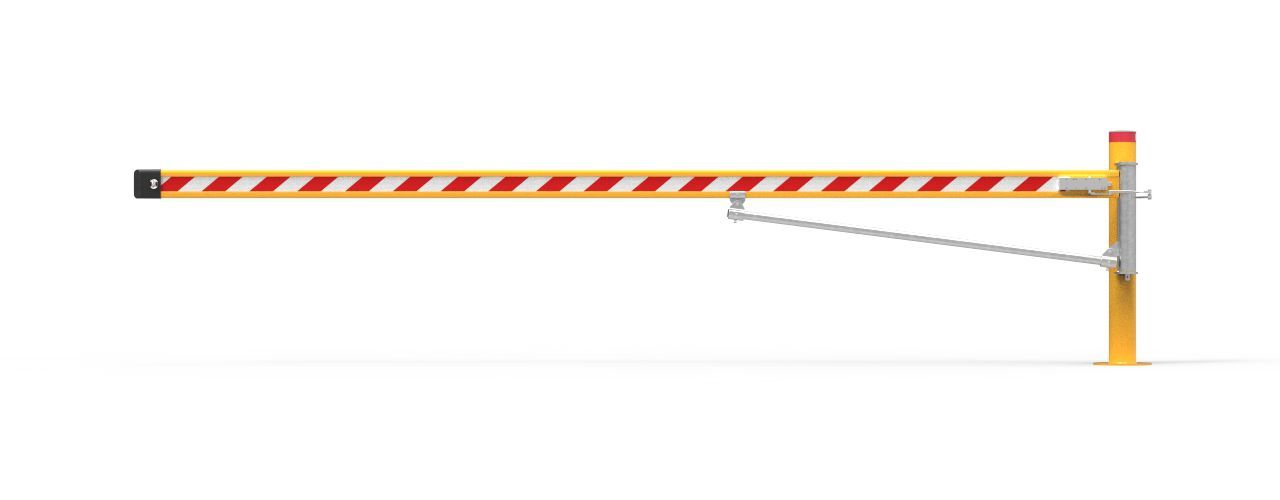

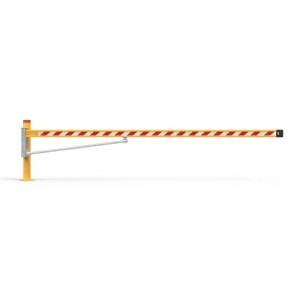

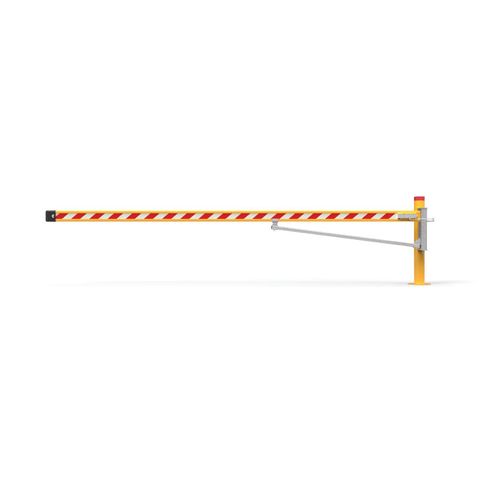

Our Self-Closing Swing Gates are suitable for any industrial or commercial application to create a safe workplace pedestrian traffic management system. The freestanding design comes with a choice of left or right hand operation, and features an adjustable spring assisted closing mechanism to ensure the gate will automatically close behind the person moving through the gate.

Each gate is supplied with a 5 metre aluminium beam finished in Yellow powder coating and hi-vis Red/White reflective panel.

Gates can be wall or post mounted (posts optional).

Not what you're looking for?

We have more industrial gates to choose from here.

Product Features:

Self-closing operation.
Can b wall or post mounted (posts optional).
Supplied with 5 metre aluminium beam.
Can swing inward or outward.
Can be used in pairs for wider openings.
Full installation service available.

Download PDF

Download Installation Procedure

Description:	Self-closing swing gate.
Operation:	Hydraulic spring assistance.
Construction:	Steel post with aluminium rail.
Gate Swing:	90 degrees.
Gate Stop:	Built-in soft stop with receiver bracket.
Receiver Post:	Optional.
Maximum Opening:	5000mm wide.
Minimum Opening:	3000mm wide.
Mounting Type:	Post or wall.
Rail Type:	Aluminium 145 x 40mm.
Rail Height:	1000mm above floor.
Finish:	Powder coated with reflective.
