Modular economy post and rail system

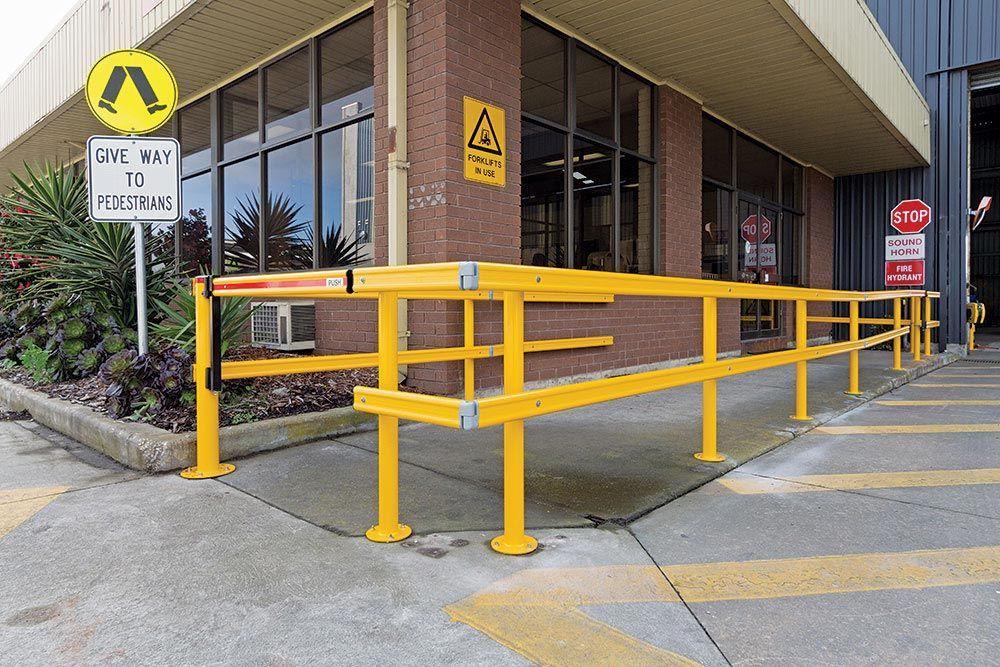

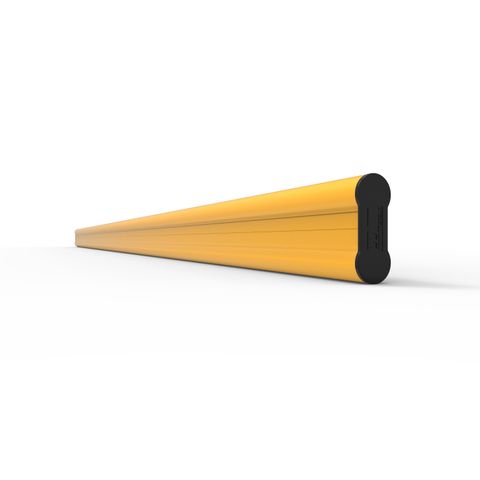

ER-Rail is a flexible and economical warehouse safety barrier that is an ideal attractive and practical solution designed to control the movement of pedestrians. This post and rail system consists of 80 x 30mm aluminium rails in 2, 3 or 6 metre lengths that can be cut to any size with a power saw fitted with an aluminium cutting blade.

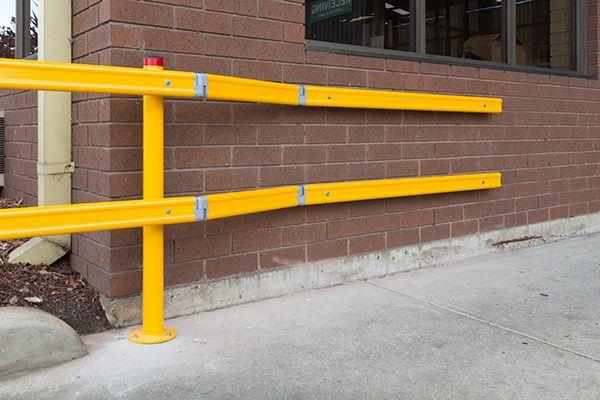

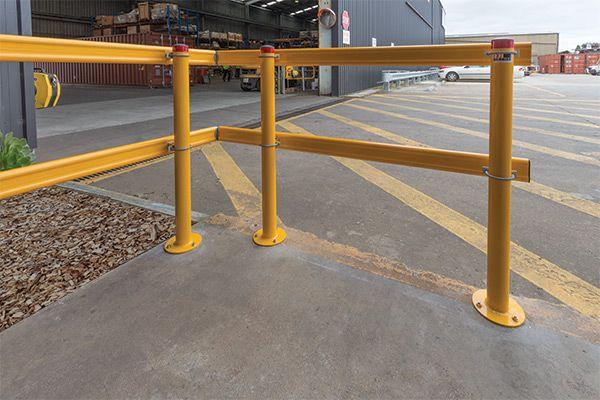

Rails are sold separately with optional surface mount or below ground posts, brackets (fixings supplied) and accessories available to allow for post and wall mounted installation. Designed to comply to AS 1657:2013 for balustrades and handrails when installed using ER-Rail mounting brackets.

Click and drag image to view 360˚

Not what you're looking for?

You might prefer our PR-Rail System, Ball-Fence Handrail System or W-Beam Guard Fence System instead.

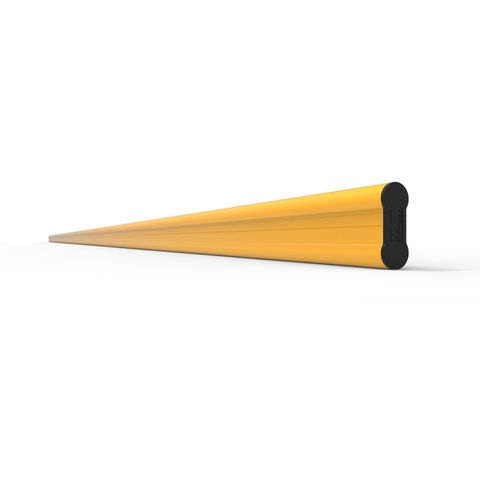

  • Rails


    Toe Boards

  • Description: Modular economy post and rail system

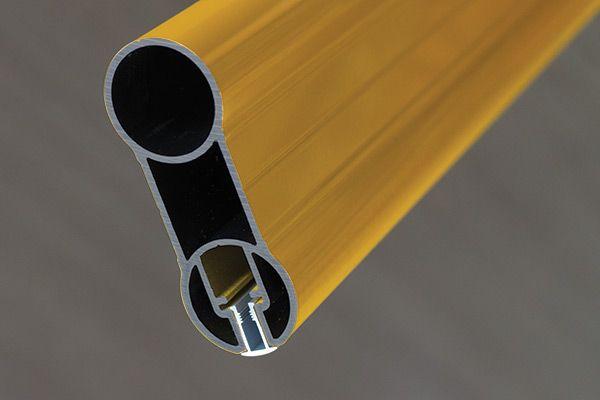

    Material: Extruded aluminium section
    Finish: Powder coated Yellow
    Length: 2, 3 or 6 metres
    Size: 80 x 30 with 1.75mm wall
    Weight: 1.45kgs per metre
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

  • ER-Rail Gate

    ER-Rail Gates are designed to complement the ER-Rail fencing system by being directly mounted o...

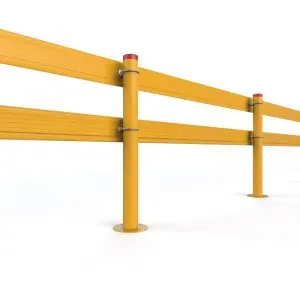

  • PR-Rail Hand Rail System
