PR-Rail Gate

Click and drag image to view 360˚

Self-closing aluminium rail gates for rail, post or wall mount applications

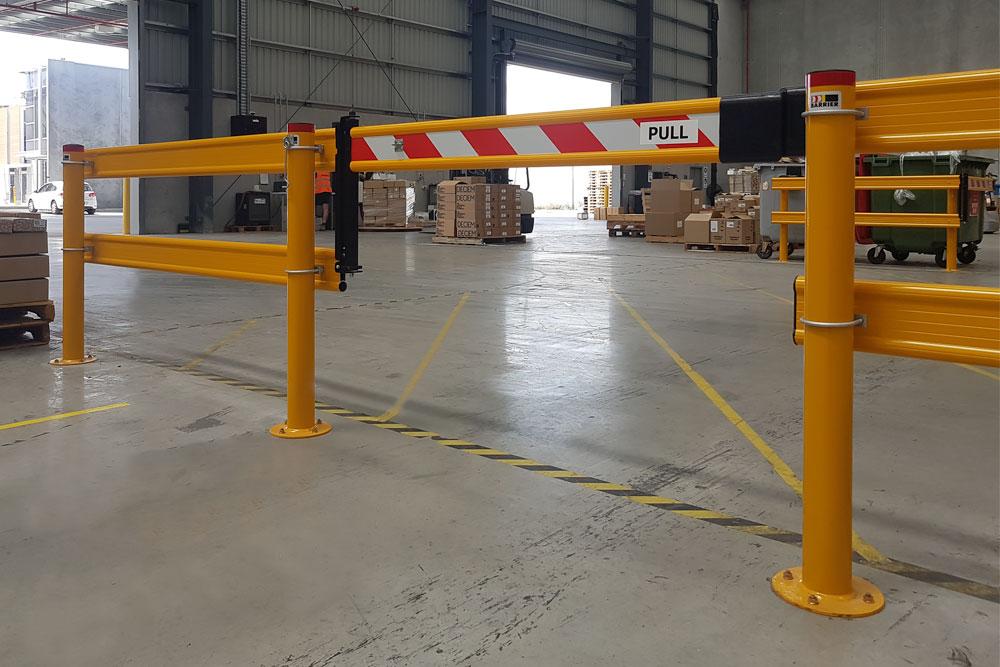

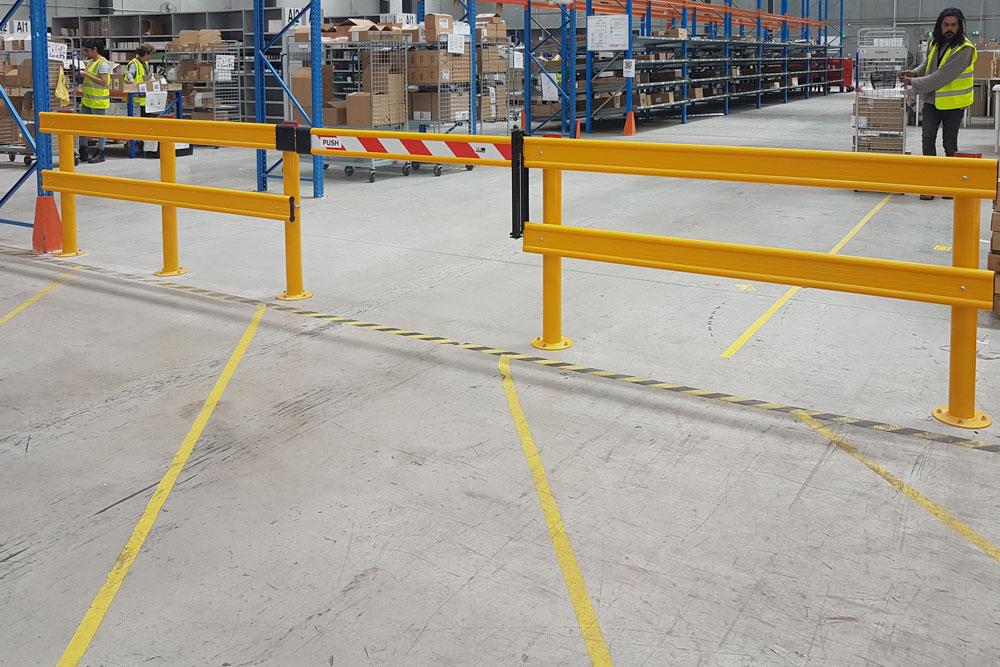

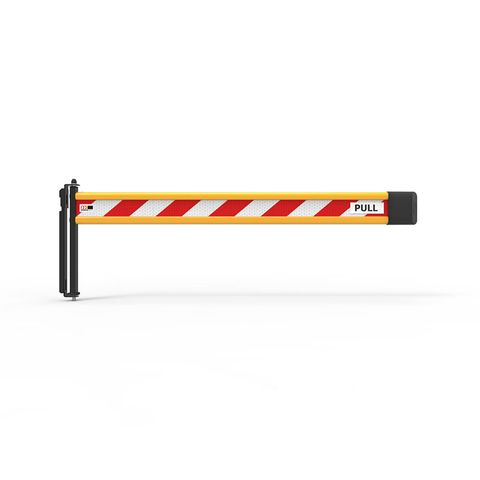

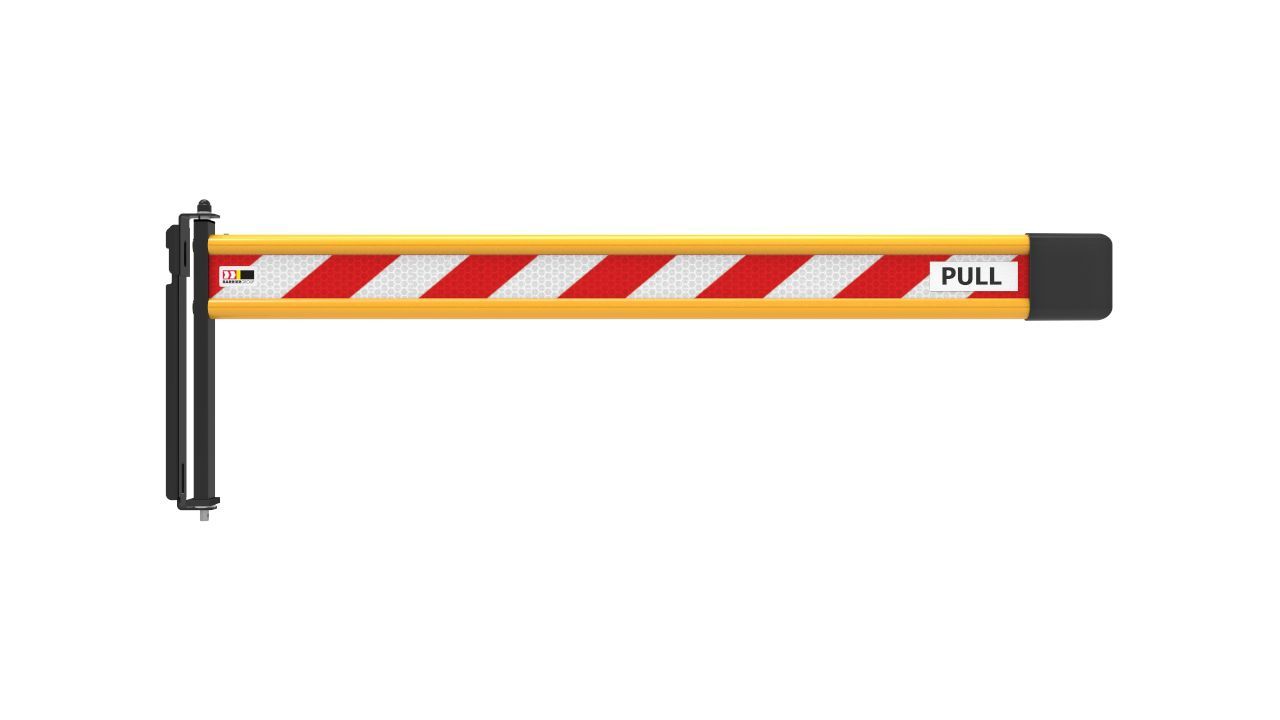

PR-Rail industrial self-closing gates are designed to complement the PR-Rail fencing system by being directly mounted onto the posts or rails, or alternatively, fixed onto a solid wall. This economical single gate features an adjustable spring tension system that allows the self-closing inward or outward operation. The aluminium rail is powder coated Yellow and includes a hi-vis reflective Red/White diagonal tape.

Not what you're looking for?

We have more industrial gates to choose from here.

Product Features:

Self-closing operation.
Post, wall or in-line mounting.
Supplied with 1.5 metre aluminium rail.
Can swing inward or outward.
Economical single gate.
Adjustable spring tension.
Aluminium rails include hi-vis reflective tape.
Full installation service available.

Download PDF

Download Installation Procedure

Fixings

Description:	Manual pedestrian swing gate
Operation:	Push open/adjustable spring closure.
Construcion:	Steel chassis with aluminium rail.
Gate Swing:	90 degrees.
Gate Stop:	Built-in.
Receiver Post:	Optional.
Maximum Opening:	1500mm wide.
Minimum Opening:	800mm wide.
Mounting Type:	Post, wall or in-line.
Rail Type:	Aluminium 145 x 40mm
Rail Height:	1000mm above floor.
Finish:	Powder coated with reflective tape.
