Removable Bollards Surface Mount Cam-Lok
Surface mountable bollards with high security cam lock and registered keys

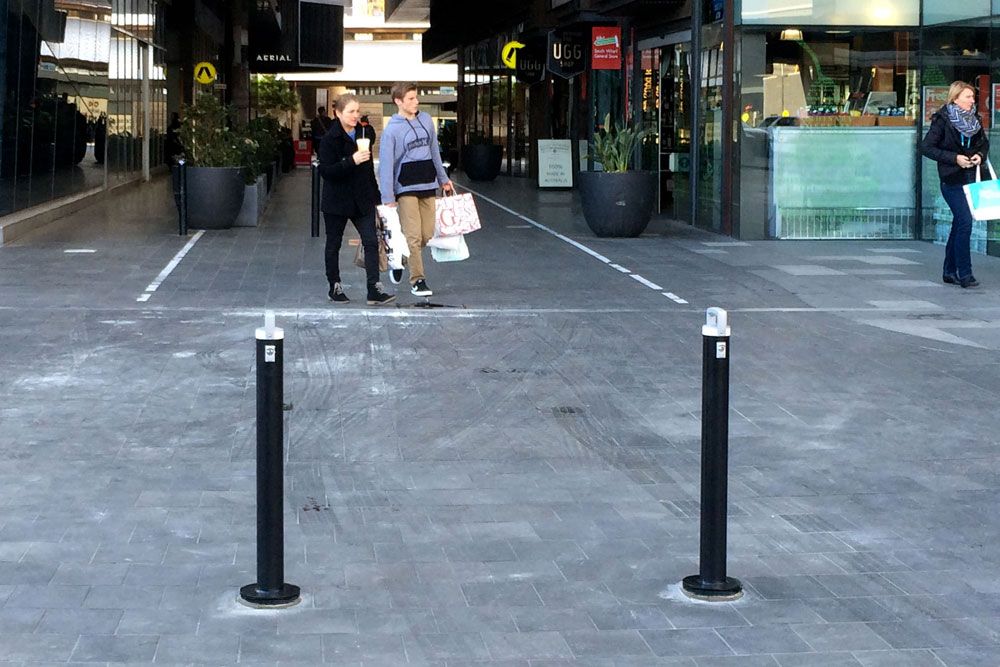

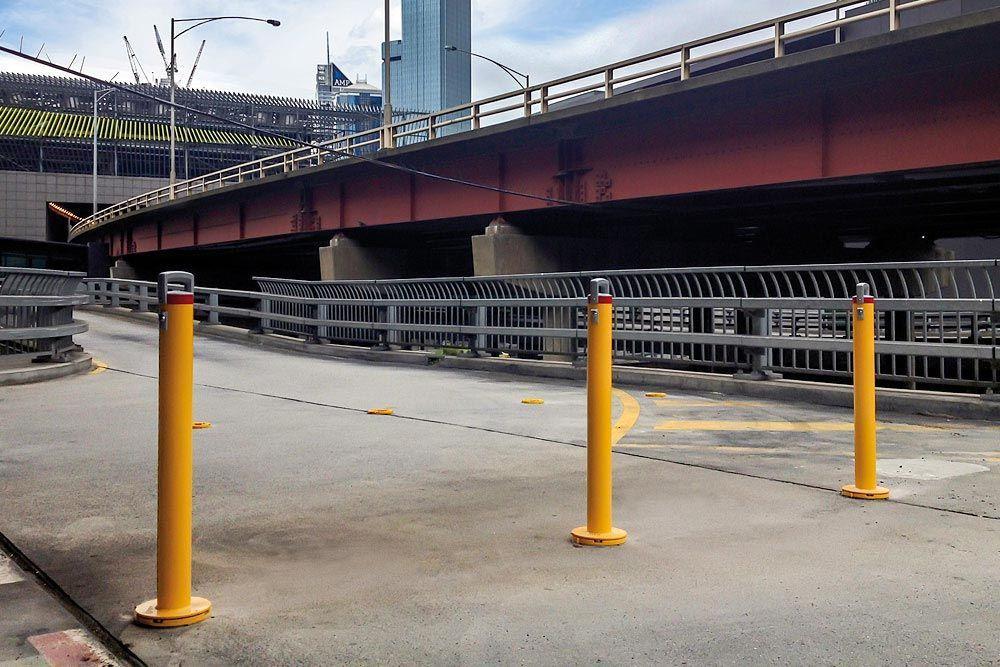

Surface mount removable bollards are designed for applications where the floor cannot be core drilled or penetrated, such as suspended, prestressed slabs or clean areas such as food preparation or pharmaceutical processing. They are available in two different models, the Cam-lok and the Tee-lok. Structurally both models are identical but offer different locking systems depending on the level of security required.

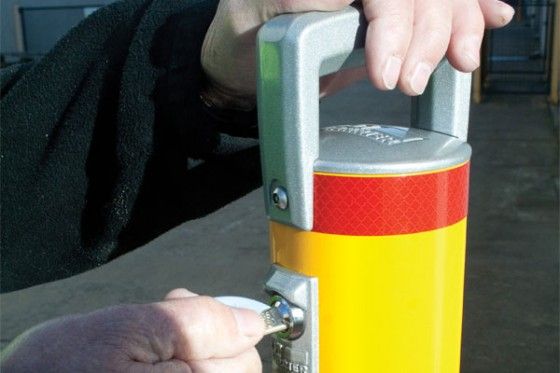

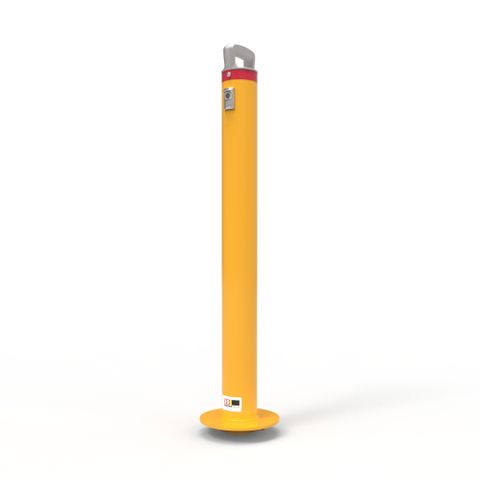

The Cam-lok model is a heavy duty bollard that locks into the surface mounted receiver shoe via an internal locking system which utilises a high security cam lock with registered keys.
(2 keys are supplied per order. Additional keys may be purchased if required).
Not sure if you need Premium or Economy bollards? Check the table below.
| Features | Premium Lock Bollards | Economy Lock Bollards |
|---|---|---|
5mm Thick Wall - Powdercoat or Galvanised | ||
Powder Coated Aluminium Cap included | ||
Available in 3.4mm Stainless Steel | ||
Two keys supplied | ||
Available in keyed different | ||
Available in Keyed alike | ||
Registered Key | ||
Replacement keys can be cut without supplying key or lock | ||
Original key must be available for duplication | ||
Master keys available |
Product Features:

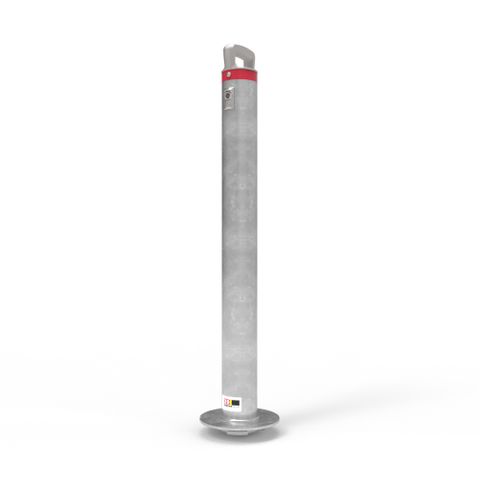

- Galvanised and powder coated or 316 stainless steel.

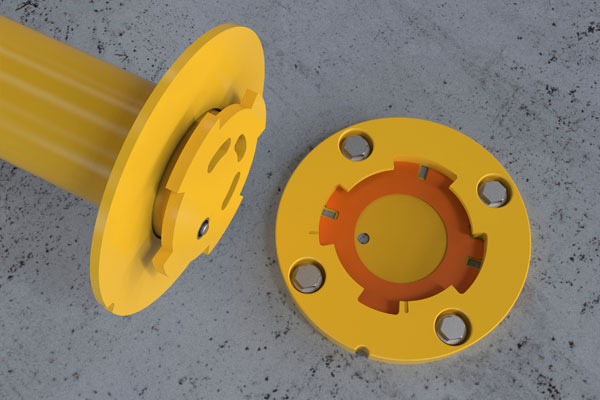

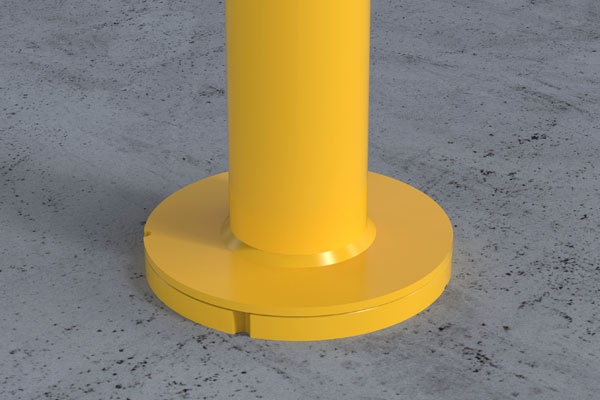

- Heavy steel receiver shoe is also used as a storage unit for bollards.
- Requires only 4 off 12mm holes, 65mm deep.
- No core drilling or slab penetration.

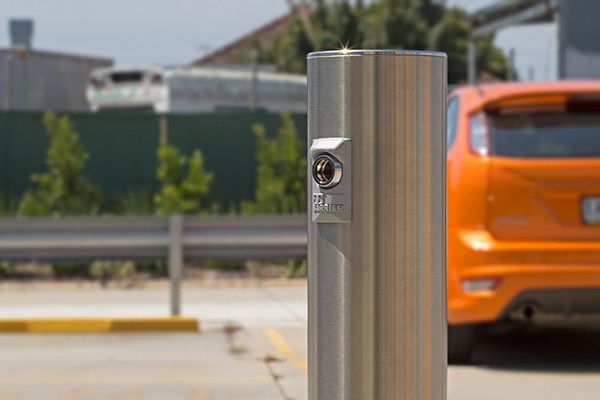

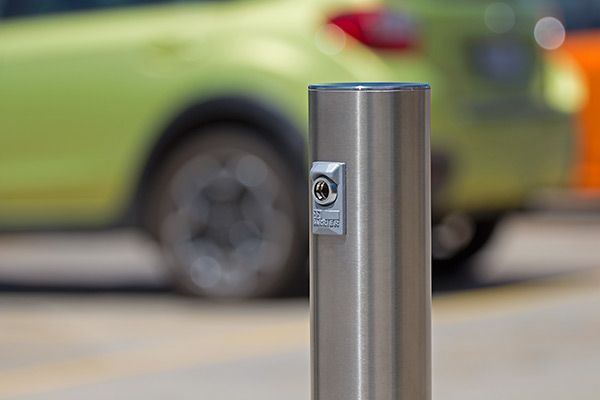

- Internal locking system with high security Cam-Loks with registered keys (includes 2 keys per order).
- Keyed alike option available.
- Fixings for receiver shoe are inaccessible when post is locked in place.

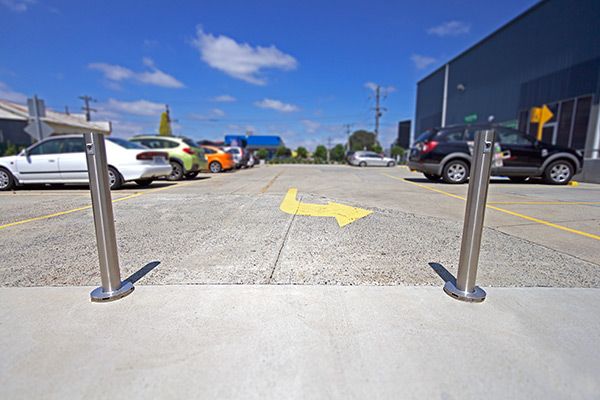

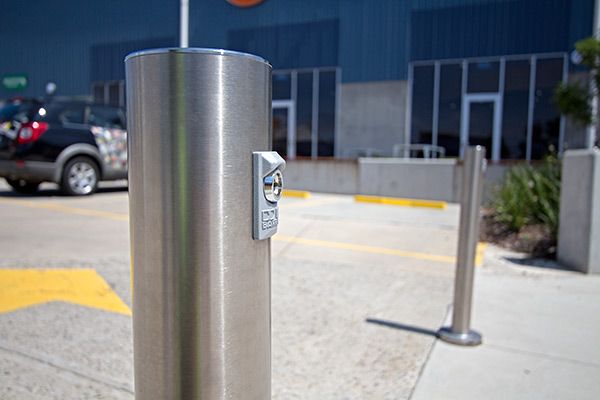

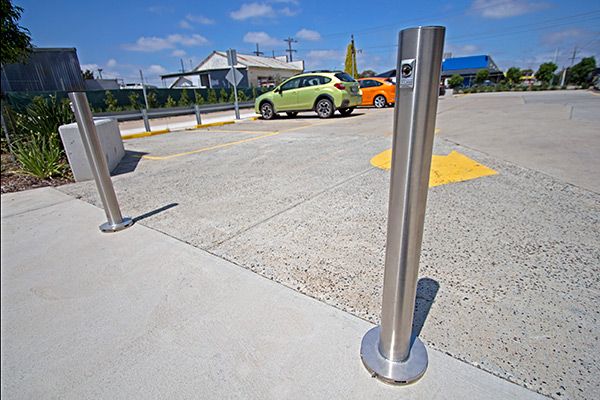

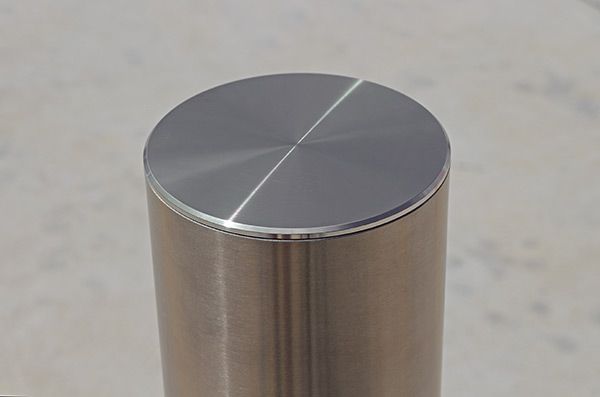

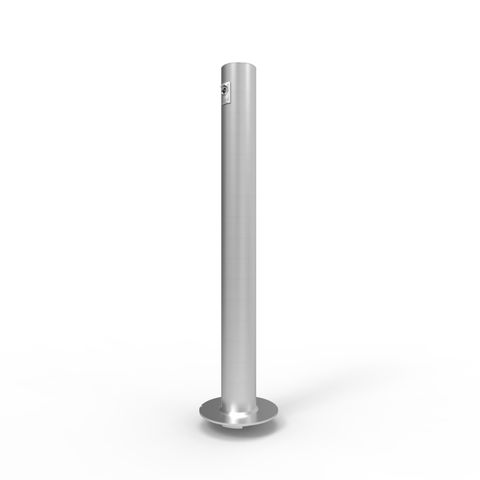

- Stainless model has a flat cap and no handle.
Receiver Shoes
Part No. Bollard Diameter Bollard height Bollard wall thickness Base plate diameter Shoe height Kgs Finish SMCL* 90 950 5 200 20 12 HDG+PC SMCLE* 90 950 5 200 20 12 HDG+PC SMCL-G* 90 950 5 200 20 12 HDG SMCLE-G* 90 950 5 200 20 12 HDG SMCL-SS* 90 950 3.05 200 20 12 SS SMCLE-SS* 90 950 3.05 200 20 12 SS Note: All dimensions in mm. Finish: Zinc Plated (ZP) only/and Powder Coated (PC), or 316 Stainless Steel (SS). *Each order of one or more bollards is supplied with 2x registered keys.
