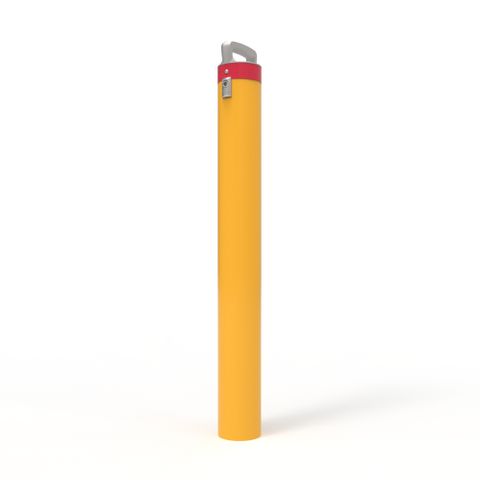

Removable Bollards In-ground Cam-Lok

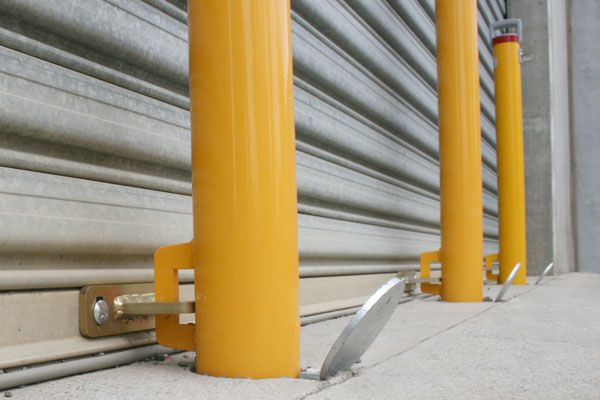

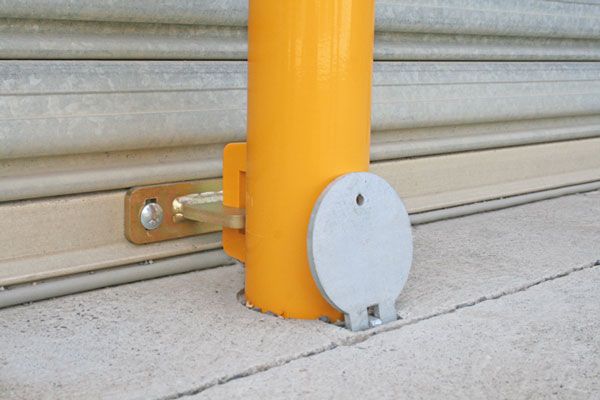

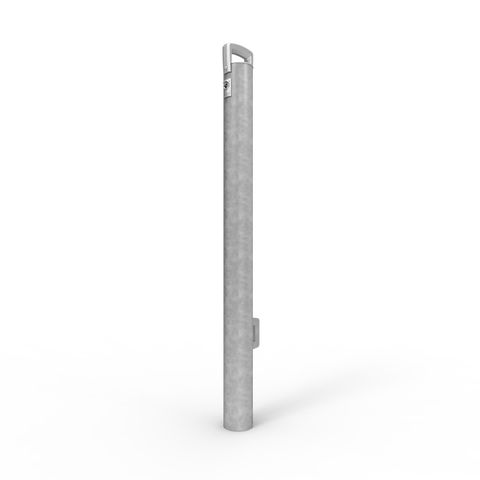

Key operated, roller door protection bollard

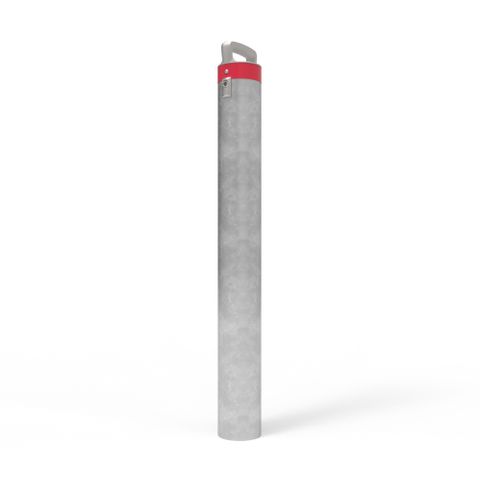

The Cam-lok range of removable bollards with their heavy steel construction were originally designed to help combat ‘Ram-raids’ on businesses. While they still serve this security role with thousands of them now in the field, we find that our Cam-lok’s are being used more and more in architectural environments for managing vehicle access in restricted areas.

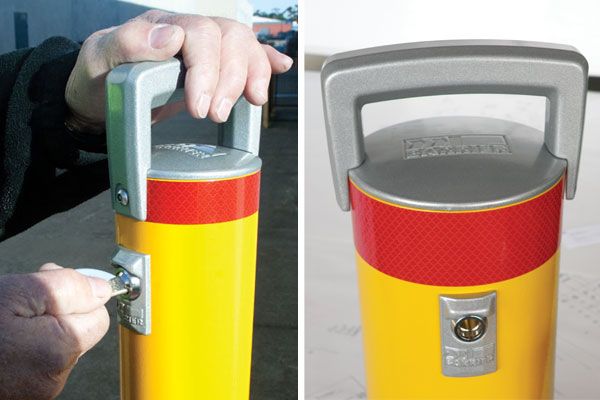

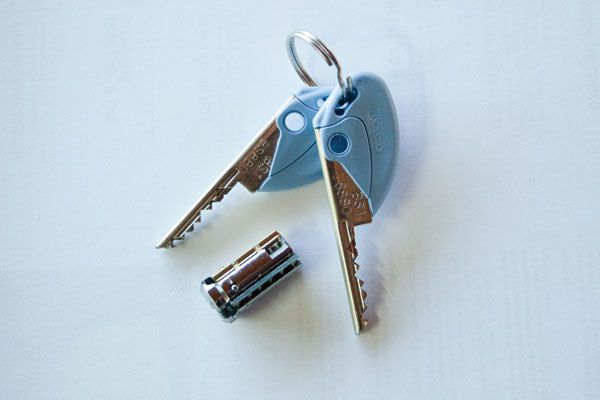

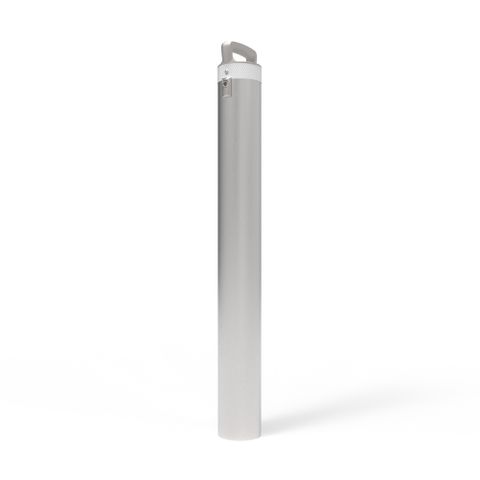

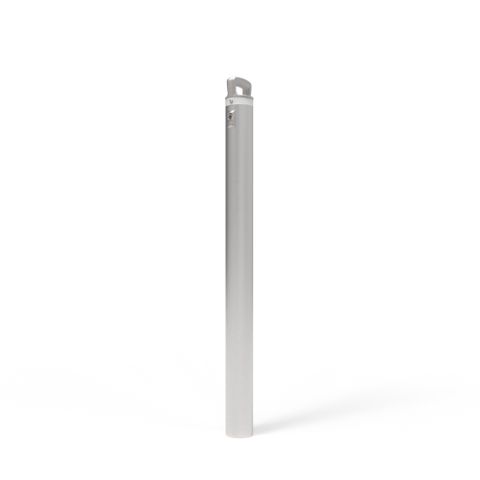

These architectural applications vary from the security role in that there is a greater demand for an aesthetically pleasing design, hence the use of polished stainless steel instead of the more industrial powder coated finishes. However some things never change, one of these is our insistence on using only the very highest quality ‘Bi-lock’ removable core lock mechanisms with security registered keying.
These are very expensive and make up a substantial part of the cost of the finished bollard, which is why most competitors removable bollards currently on the market use cheap, very poor quality locks that are unreliable and readily breached. While this may reduce the initial investment, it compromises the effectiveness of the bollard and the long term security of your assets.

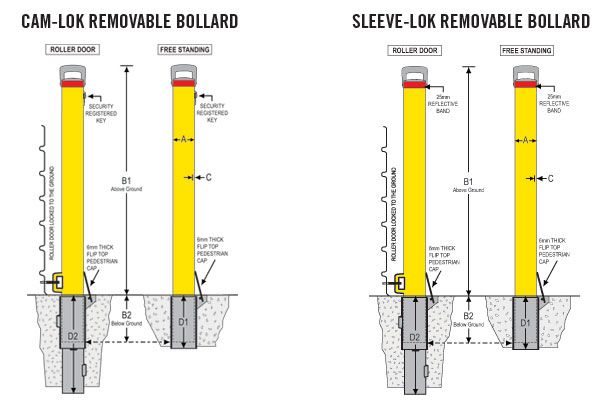

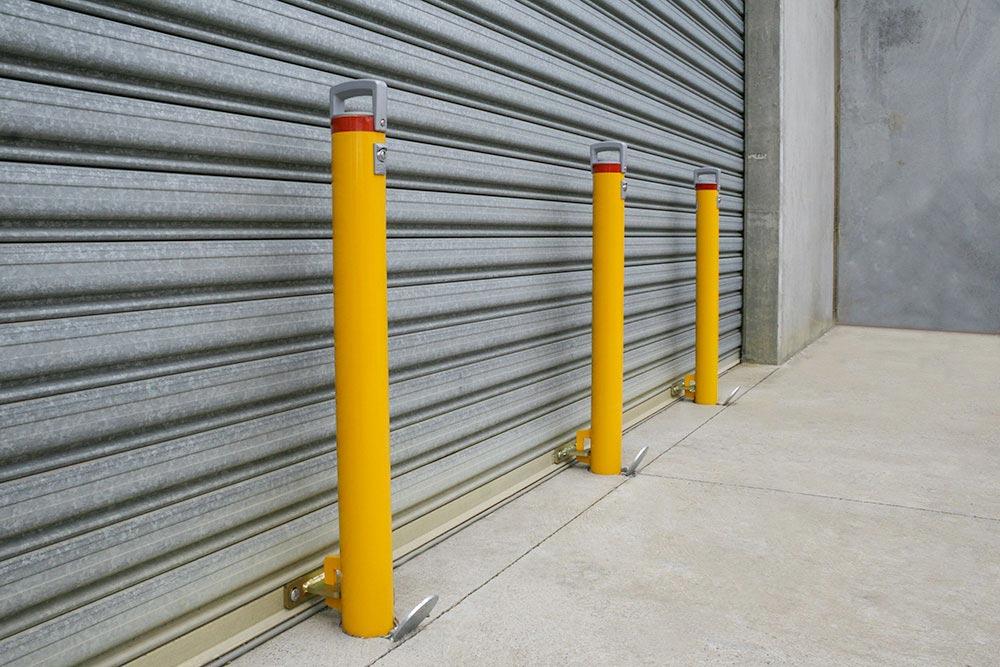

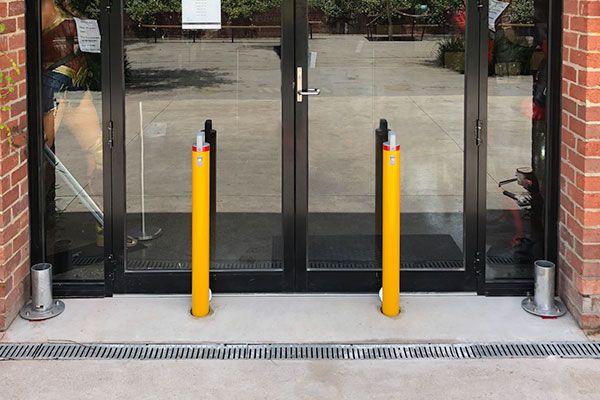

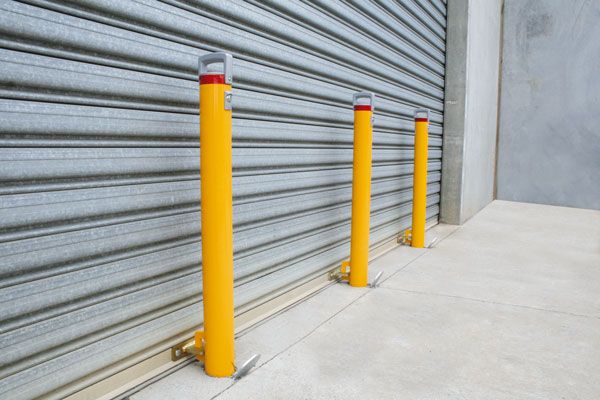

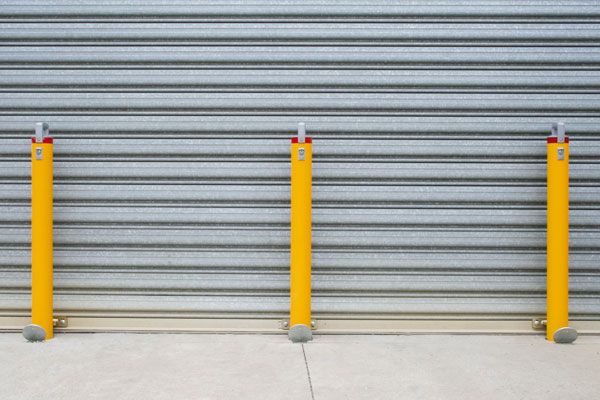

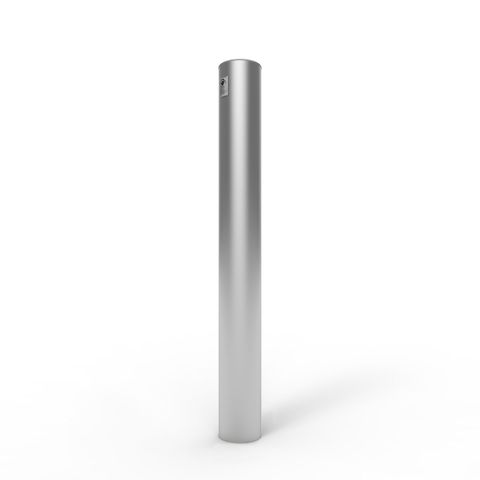

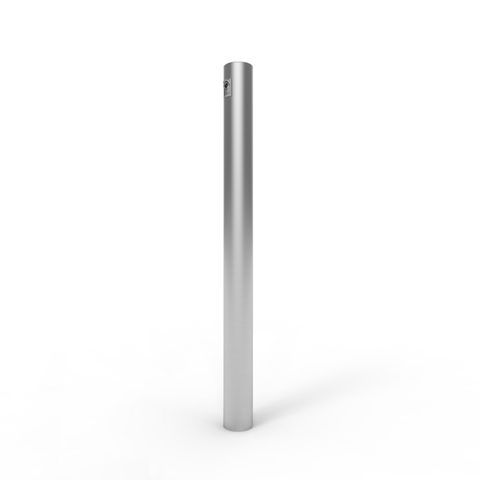

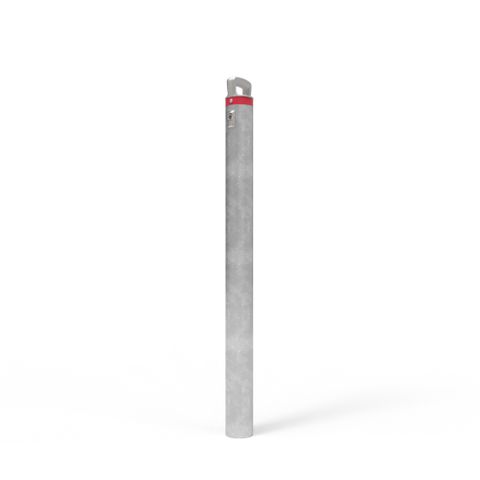

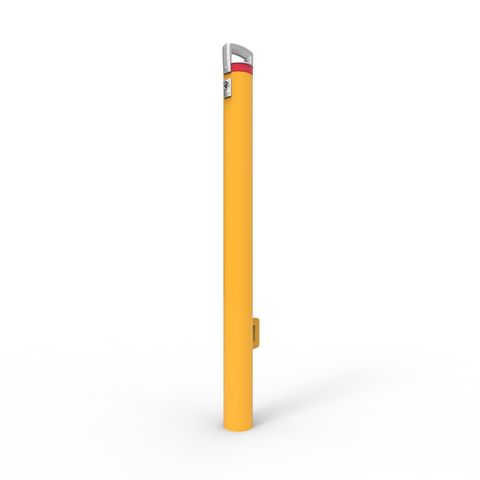

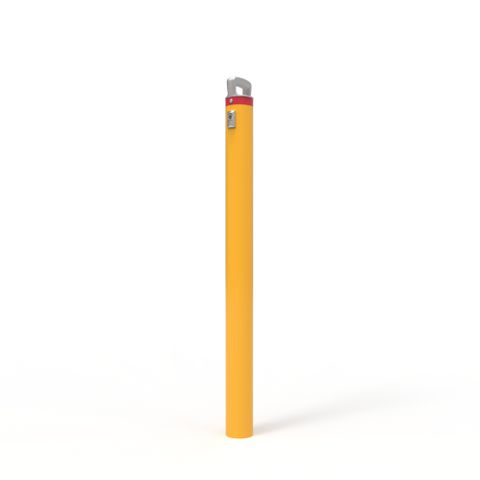

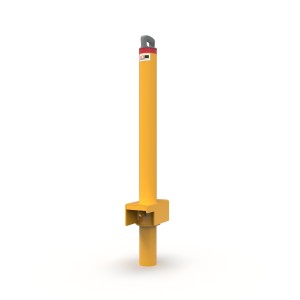

Another area where our product differs from most is that all our steel bollards (including those with powder coated finishes) are hot dip galvanised during manufacture. Alternatively our stainless steel models are made from marine grade 316. Cam-lok removable bollards come in two styles. Freestanding for shop front or public open space installations, and roller door models for the protection of factory roller shutter doors.
Not sure if you need Premium or Economy bollards? Check the table below.
Premium Lock Bollards
Economy Lock Bollards
5mm Thick Wall - Powdercoat or Galvanised

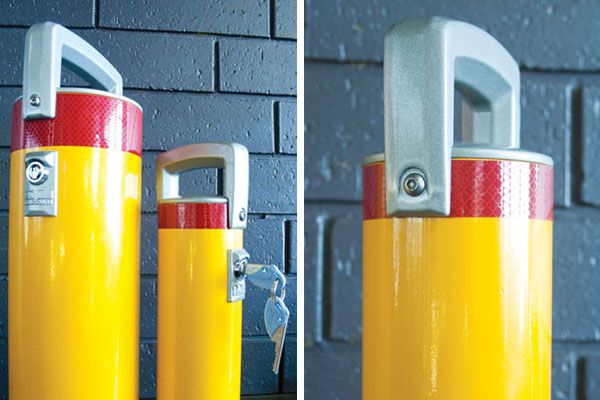

Powder Coated Aluminium Cap included
Available in 3.4mm Stainless Steel

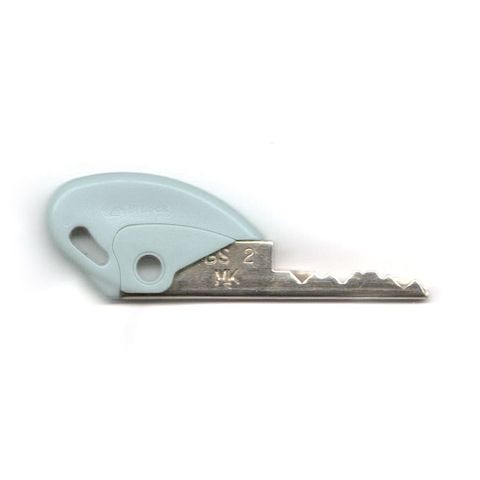

Two keys supplied
Available in keyed different
Available in Keyed alike
Replacement keys can be cut without supplying key or lock
Original key must be available for duplication
Master keys available

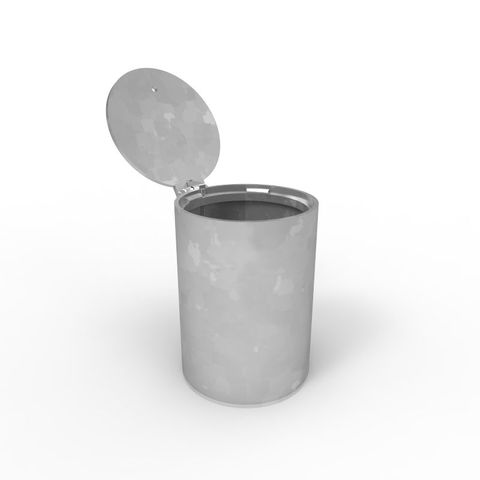

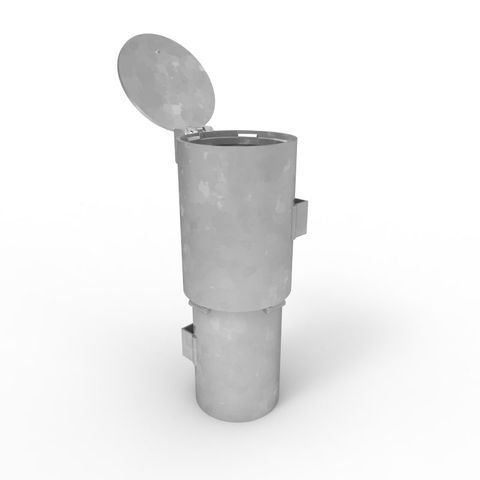

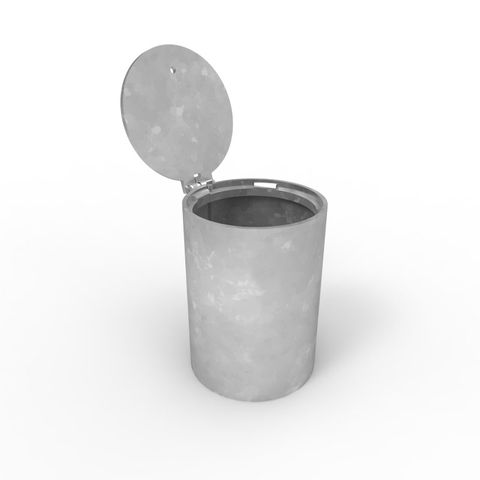

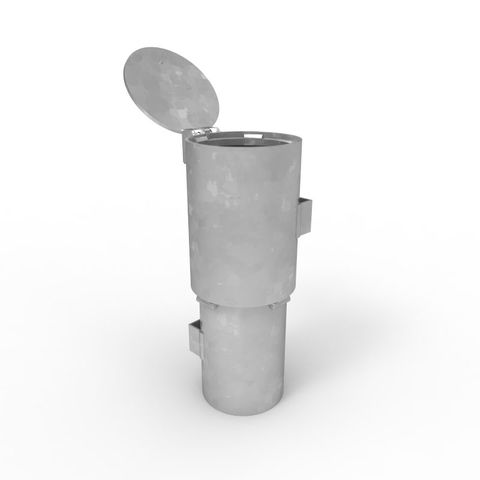

Part No. Bollard Diameter Height above ground Depth below ground Wall thickness Kgs Finish New Concrete Sleeves

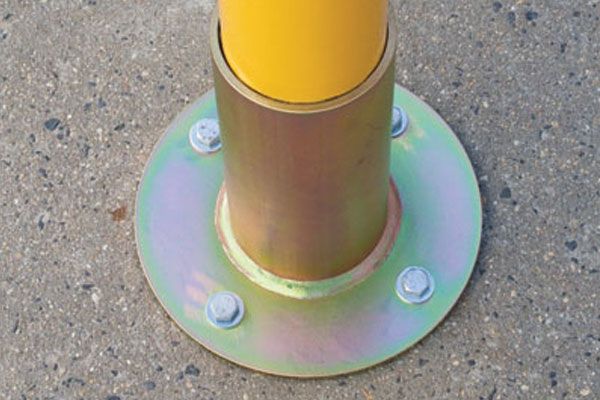

Core Drilled Sleeves
BCL90* 90 950 200 5 12.3 HDG+PC BCL90S-NC BCL90S-CD BCL90E* 90 950 200 5 12.3 HDG+PC BCL90S-NC BCL90S-CD BCL90-G* 90 950 200 5 12.3 HDG BCL90S-NC BCL90S-CD BCL90E-G* 90 950 200 5 12.3 HDG BCL90S-NC BCL90S-CD BCL90-SS* 90 883 200 3.05 9 SS BCL90SS-NC BCL90SS-CD BCL90E-SS* 90 883 200 3.05 9 SS BCL90SS-NC BCL90SS-CD BCL90-SSH* 90 950 200 3.05 9 SS+H BCL90SS-NC BCL90SS-CD BCL90E-SSH* 90 950 200 3.05 9 SS+H BCL90SS-NC BCL90SS-CD BCL90RD* 90 950 200 5 12.5 HDG+PC BCL90S-NC BCL90S-CD BCL90RDE* 90 950 200 5 12.5 HDG+PC BCL90S-NC BCL90S-CD BCL90RD-G* 90 950 200 5 12.5 HDG BCL90S-NC BCL90S-CD BCL90RDE-G* 90 950 200 5 12.5 HDG BCL90S-NC BCL90S-CD BCL140* 140 1050 200 5 21 HDG+PC BCL140S-NC BCL140S-CD BCL140E* 140 1050 200 5 21 HDG+PC BCL140S-NC BCL140S-CD BCL140-G* 140 1050 200 5 21 HDG BCL140S-NC BCL140S-CD BCL140E-G* 140 1050 200 5 21 HDG BCL140S-NC BCL140S-CD BCL140-SS* 140 983 200 3.4 21 SS BCL140SS-NC BCL140SS-CD BCL140E-SS* 140 983 200 3.4 21 SS BCL140SS-NC BCL140SS-CD BCL140-SSH* 140 1050 200 3.4 21 SS+H BCL140SS-NC BCL140SS-CD BCL140E-SSH* 140 1050 200 3.4 21 SS+H BCL140SS-NC BCL140SS-CD
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC), or 316 Stainless Steel (SS) only/and Aluminium cap with handle (H). *Each order of one or more bollards is supplied with TWO registered keys. **Additional keys are available to purchase separately.
