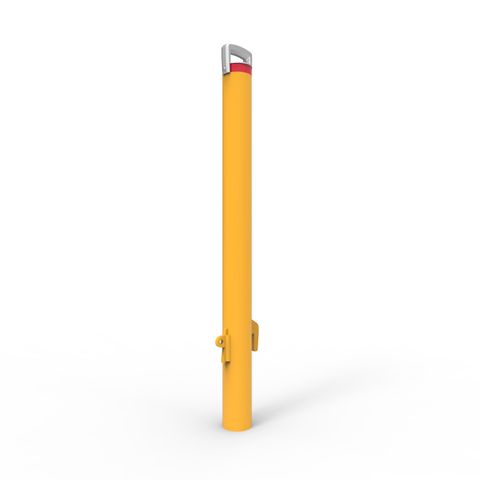

Removable Bollards In-ground Sleeve-Lok

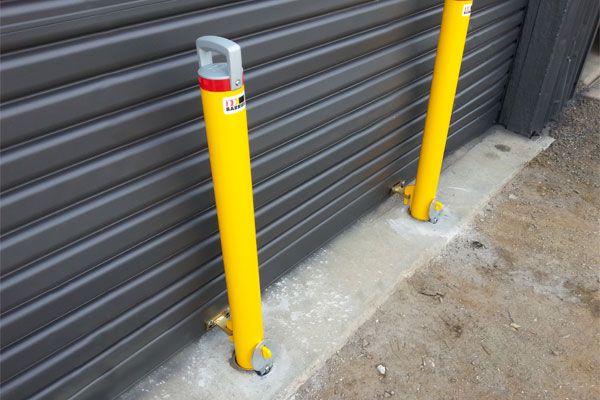

Bollard designed for warehouse roller door protection
The Sleeve-Lok range of removable bollards with their heavy steel construction are well suited to help combat “Ram-raids” on businesses. They have served this security role now for over 12 years with thousands having been installed in all manner of applications. We find that our Sleeve-Loks are also very widely used for managing vehicle access in restricted areas. These include industrial sites, parks and gardens and numerous other public space environments.

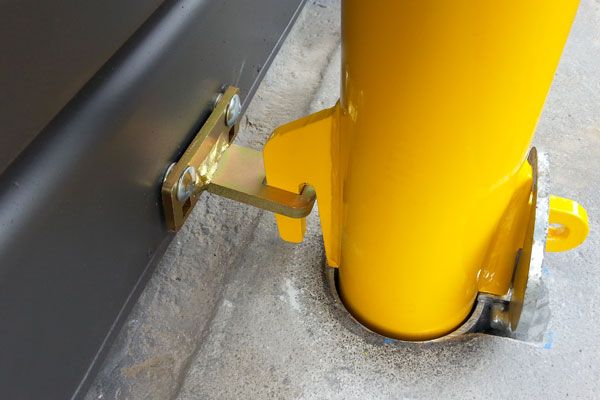

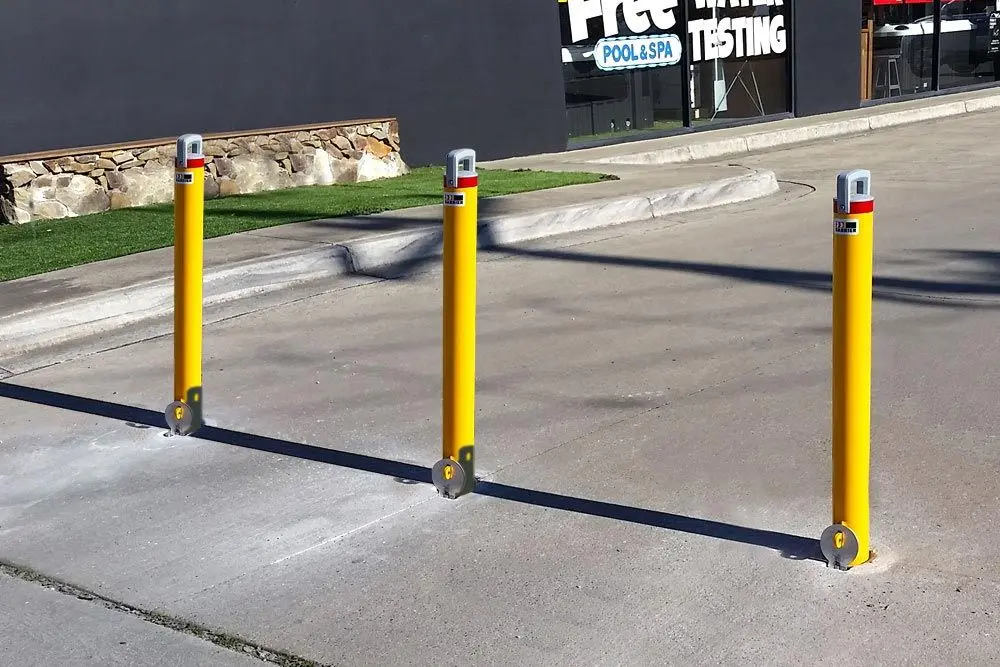

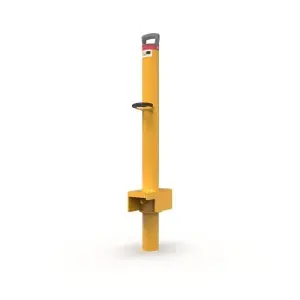

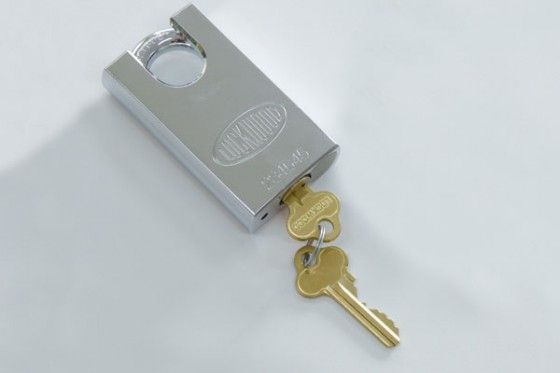

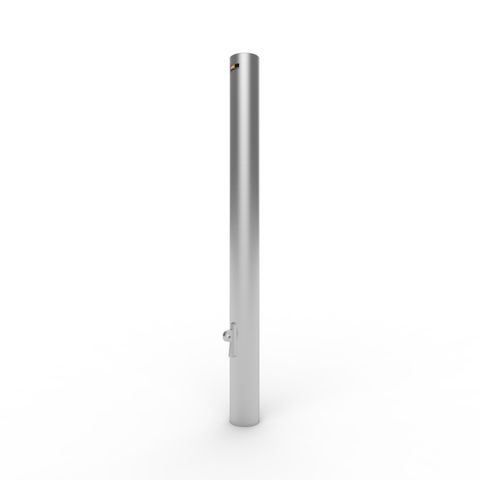

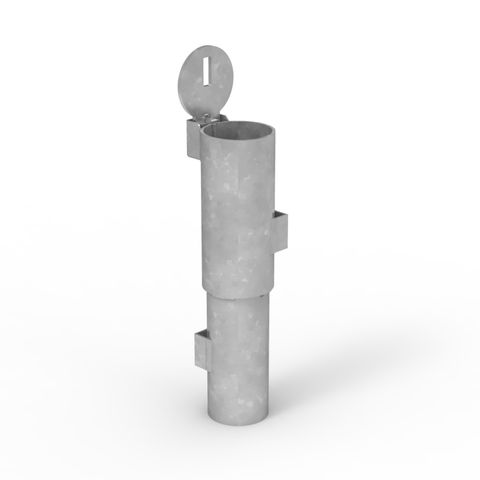

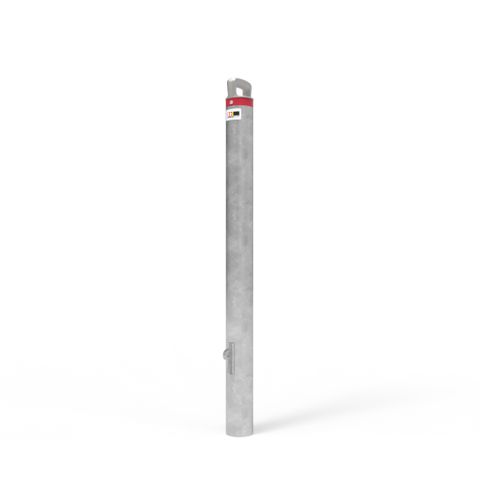

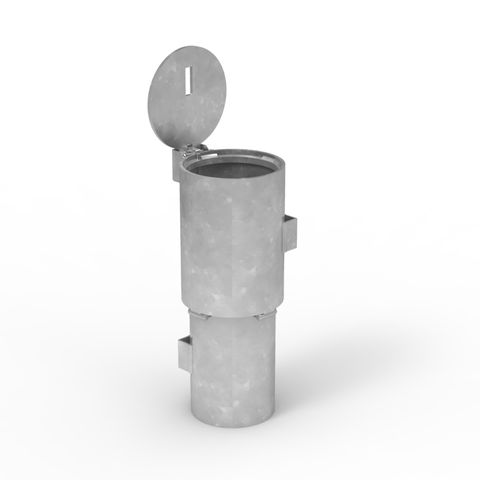

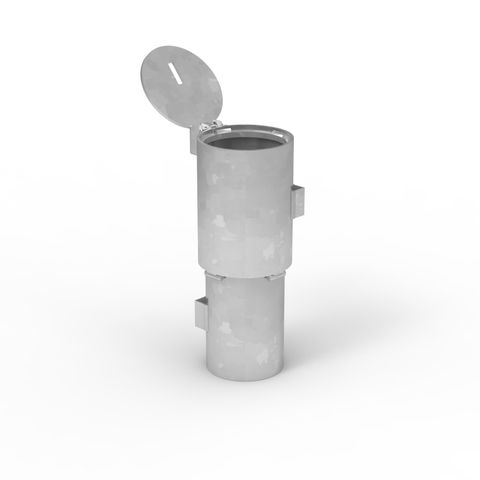

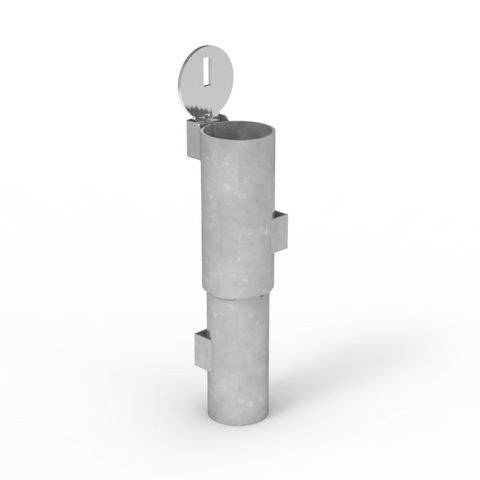

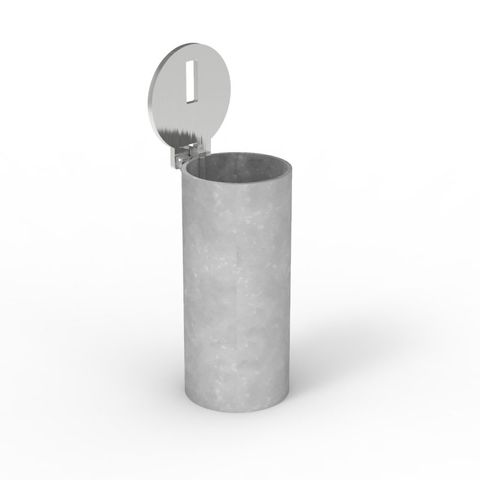

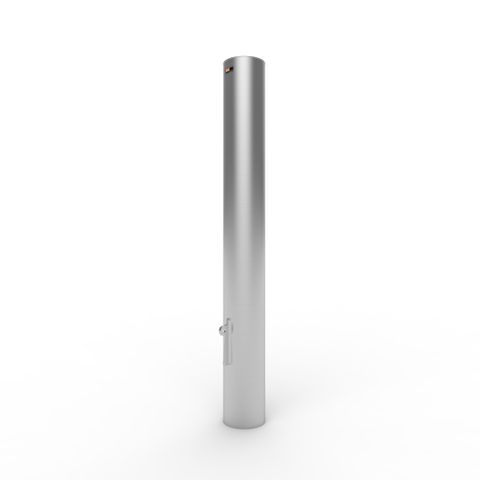

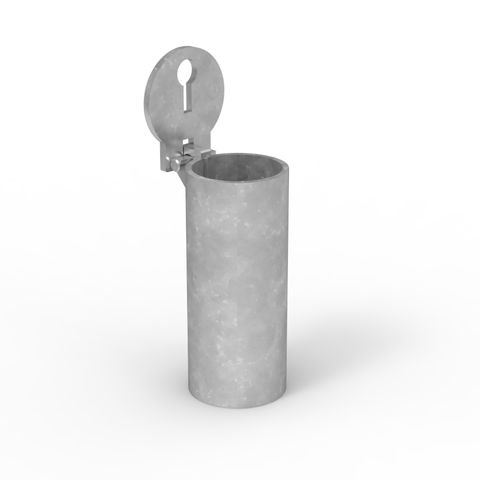

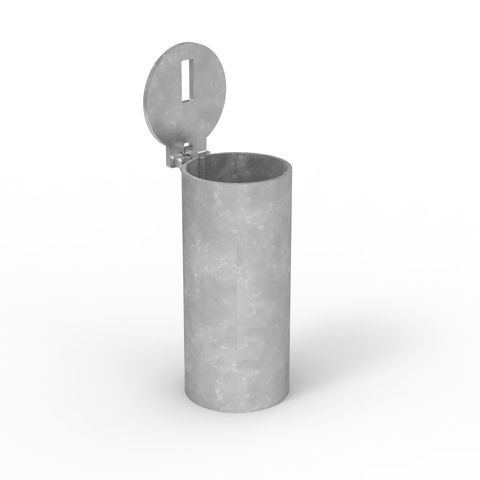

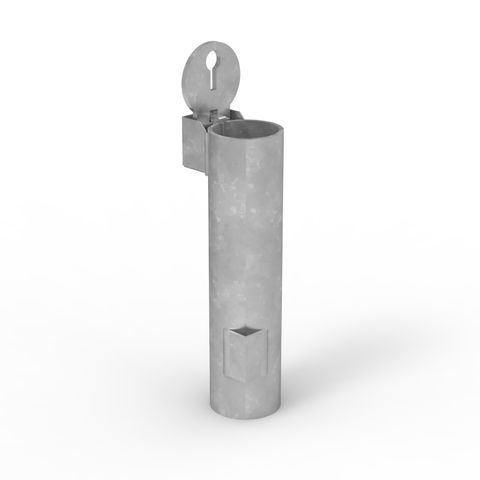

Sleeve-Lok removable bollards are differentiated from the Cam-Lok range by their locking method. Where the Cam-Loks use high security locks with an internal locking mechanism, the Sleeve-Loks use a simple padlock design whereby the cap on the in-ground sleeve is secured to a high strength steel shackle welded onto the bollard. Sleeve-Lok removable bollards come in two styles. Freestanding for shop front or public open space installations, and roller door models for the protection of factory roller shutter doors.

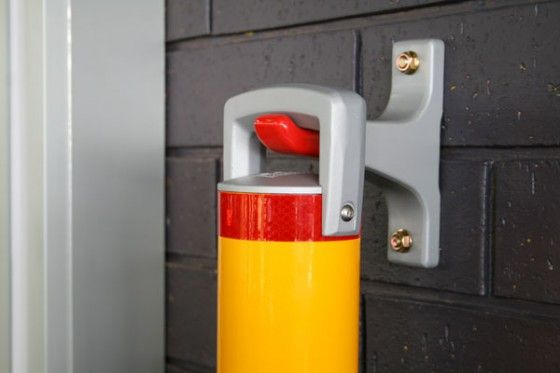

In keeping with a greater demand for an aesthetically pleasing design in street furniture and fixtures used in public open spaces, we have undertaken a major re-design of our removable bollard range. This is evident in the smart new cast aluminium caps and handles on the Sleeve-Lok bollards.
Another area of improvement and one where our entire bollard range differs from our competitors, is that they are all hot dip galvanised during manufacture. This includes bollards that have a powder coated finish. This is a significant development as hot dip galvanising has a dramatic impact on reducing corrosion and increasing the service life of the bollard.
Part No. Bollard Diameter Height above ground Depth below ground Wall thickness Kgs Finish New Concrete Sleeves Sleeve Height Core drilled sleeves Sleeve height BSL62 63 900 150 1.6 4.5 HDG+PC BSL63S-NC 300 BSL63S-CD 150 BSL63-G 63 900 150 1.6 4.5 HDG BSL63S-NC 300 BSL63S-CD 150 BSL90 90 950 200 5 12 HDG+PC BSL90S-NC 425 BSL90S-CD 225 BSL90-G 90 950 200 5 12 HDG BSL90S-NC 425 BSL90S-CD 225 BSL90-SS 90 883 200 3.05 9 SS BSL90SS-NC 425 BSL90SS-CD 225 BSL90-SSH 90 950 200 3.05 9 SS+H BSL90SS-NC 425 BSL90SS-CD 225 BSL90RD 90 950 200 5 12.2 HDG+PC BSL90S-NC 425 BSL90S-CD 225 BSL90RD-G 90 950 200 5 12.2 HDG BSL90S-NC 425 BSL90S-CD 225 BSL140 140 1050 200 5 21 HDG+PC BSL140S-NC 425 BSL1402-CD 225 BSL140-G 140 1050 200 5 21 HDG BSL140S-NC 425 BSL140S-CD 225 BSL140-SS 140 983 200 3.4 21 SS BSL140SS-NC 425 BSL140SS-CD 225 BSL140-SSH 140 1050 200 3.4 21 SS+H BSL140SS-NC 425 BSL140SS-CD 225
Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC), or 316 Stainless Steel (SS) only/and Aluminium cap with handle (H).
