Bike Rail – Style 1 Galvanised Steel

Click and drag image to view 360˚

One-piece steel bike rail or hand rail

These versatile Bike Rails have a wide range of applications including handrails, bike storage, pedestrian chicanes at crossing points and impact protection barriers to name a few.

Manufactured from 3mm wall steel pipe, 48mm in diameter and hot dip galvanised as standard. Available in either surface mount or below ground models in square or round styles. Powder coating is available by choice. All models stand 800mm high. The below ground models can be set deeper into their concrete footings to achieve a lower profile if required.

All Bike Rail models are a one piece design manufactured from a single piece of steel tube. Base plates or concrete starter bars are welded and then the entire bike rail is hot dip galvanised as a single unit.

Ideal for installations at schools, shopping centres, walkways or warehouses.

Not sure on the standards when installing bike rails? Check out our layout guide for recommendations based on existing Australian Standards.

Download the layout guide

  • Description: One piece steel bike rail.
    Material: 48mm diameter steel pipe with 3mm wall.
    Finish: Galvanised and powder coated Yellow or galvanised only.
    Height: 800mm above ground. 300mm below ground.
    Width: 850mm.
    Weight: 9.2kgs (approx.)
    Installation: 6mm thick surface flange 150mm in diameter with 8 of 10 x 50mm masonry anchors for surface mount model. Below ground model has welded concrete starter bars.
    Fixings: Supplied with surface mount models.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Ask a question

  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

  • Bicycle Path Access Bollards

    The prevention of illegal vehicle access is critical to avoiding damage to pathways and lightwei...

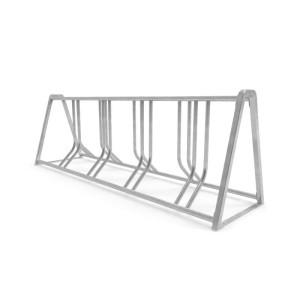

  • Bike Rack – Schoolies Galvanised Steel

    A multi-bike bike rack for casual bike storage, manufactured from mild steel and hot dip galvani...

  • Zephyr Architectural Bollard

    The Zephyr is more than a modern improvement to the standard bike bollard, bicycle rack and rail...

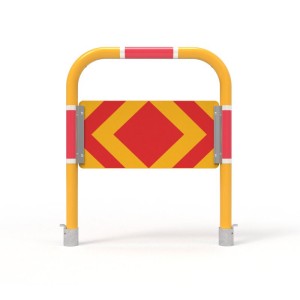

  • Bicycle Path Holding Rails & Target Boards

    Bike holding rails are designed for pedestrian and cyclist crossings to allow the user to hold o...

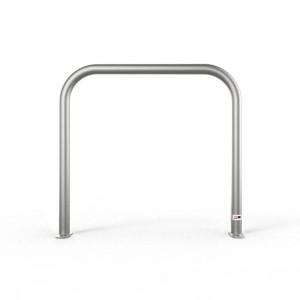

  • Bike Rail – Style 2 316 Stainless Steel

    A sturdy bike rail manufactured from marine grade 316 stainless steel and designed to accommodat...

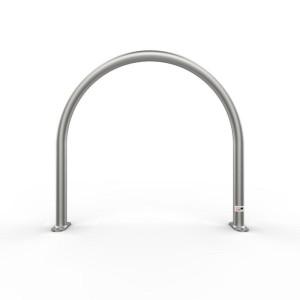

  • Bike Rail – Style 3 316 Stainless Steel

    A sturdy bike rail manufactured from marine grade 316 stainless steel and designed to accommodat...

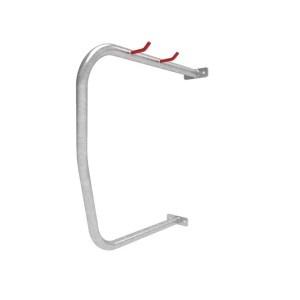

  • Bike Rack – Style 4 Galvanised Steel Wall Mounted
