Standard infill panels for De-Fence range

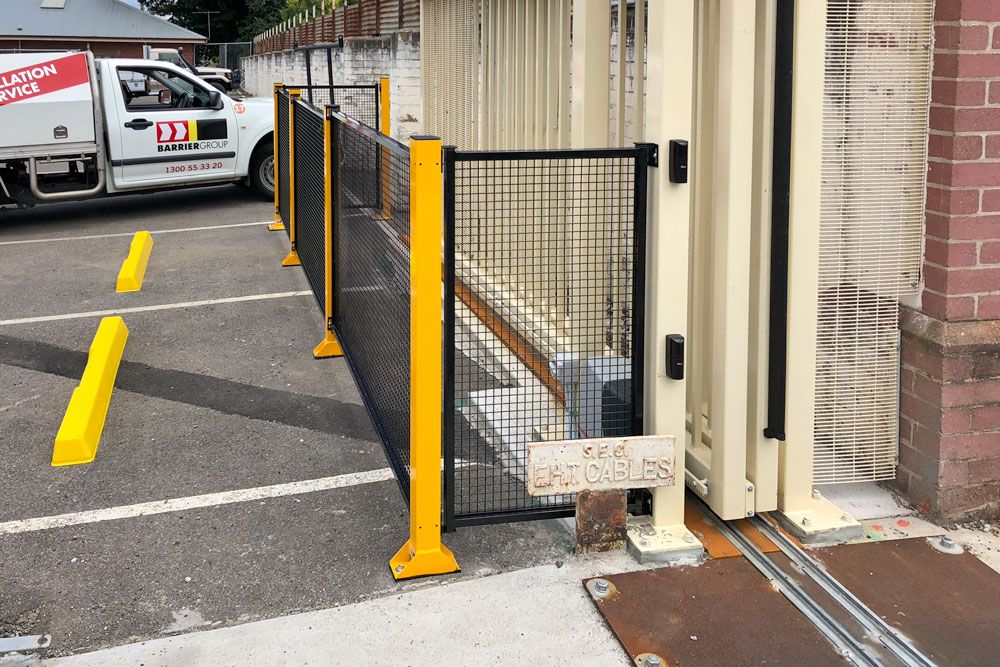

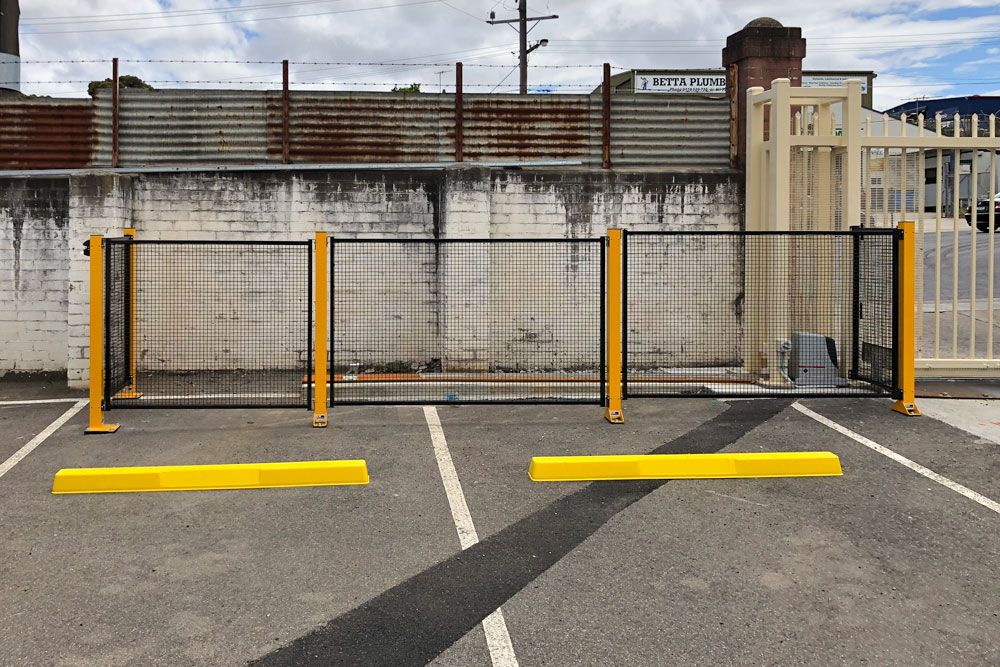

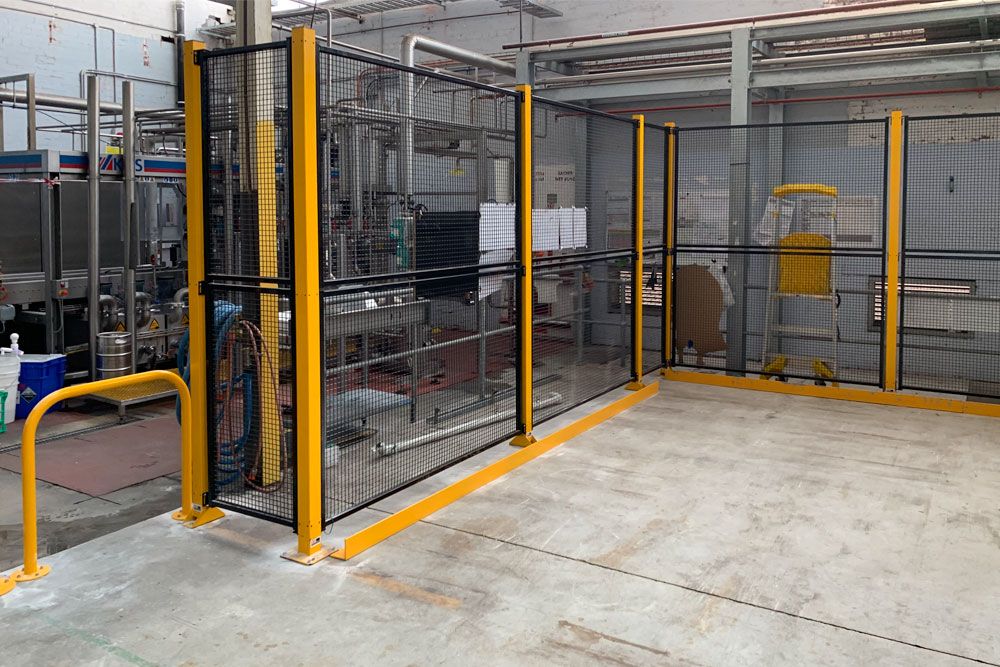

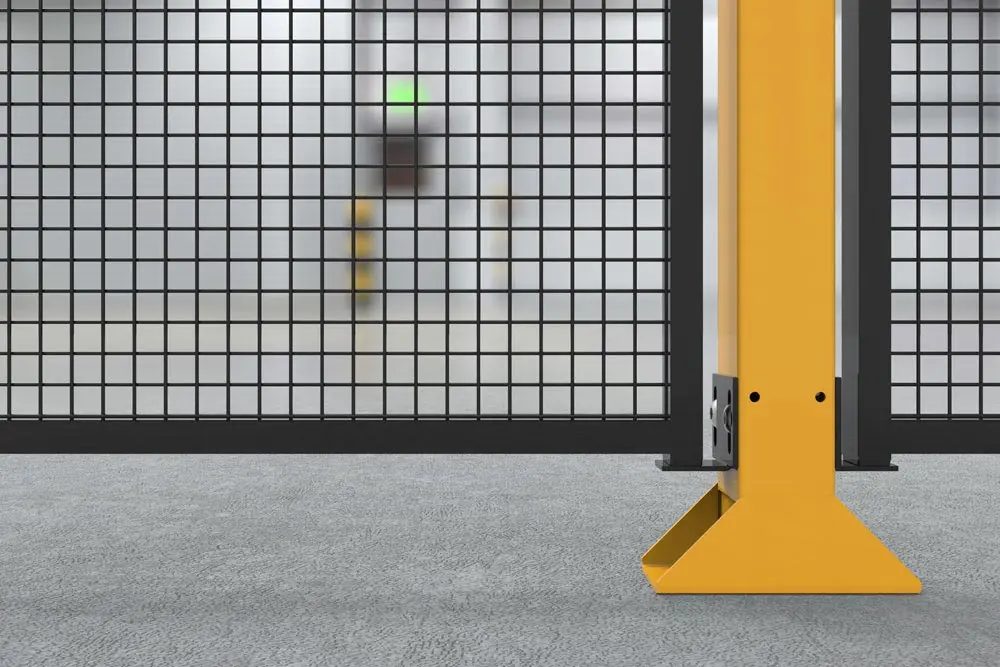

The standard De-fence panels are used with posts and brackets (including gate kits) to create an industrial safety fence to protect pedestrians or guard machinery and equipment. The panels are available in 7 standard widths and come with fully welded mesh in-fill. The mesh is a 3mm diameter steel wire at 25 x 25mm centres, giving an aperture size of 22mm square. It is welded into a tubular frame of 25 x 25 x 1.6mm mild steel RHS. The completed panels are finished in black powder coat.

Standard range of panels sizes available – 500, 750, 1000, 1200, 1500, 1700 and 2000mm wide by 1150mm deep. (Note: Panel widths relate to actual post centres). Available in either mesh or polycarbonate in-fills. When used with 2490mm posts, two panels are stacked on top of one another.

Click and drag image to view 360˚

Related Products:

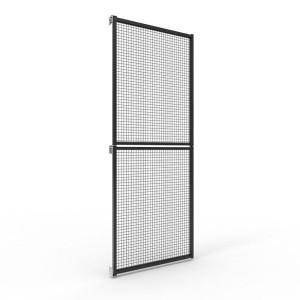

  • De-Fence Swing Gates

    Swing Gates are unique to the De-Fence machinery guarding system and can be installed as an addi...

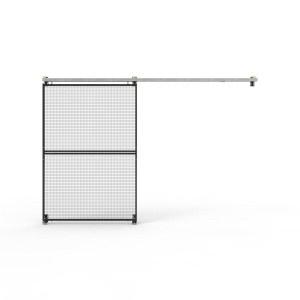

  • De-Fence Sliding Gates

    Sliding Gates are unique to the De-Fence machinery guarding system and can be installed as an ad...

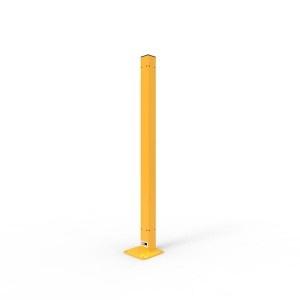

  • De-Fence Steel Posts

    Designed to comply with AS4024.1-2019 (Safety of machinery). De-fence is simple to install, flex...

  • De-Fence Polycarbonate Panels

    Optional polycarbonate De-fence panels are available in the same 7 standard widths. The clear po...

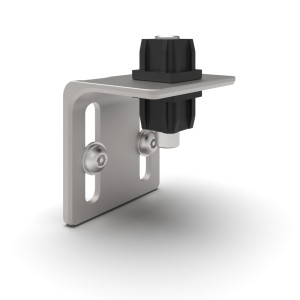

  • De-Fence Steel Bracket Kits

    A range of four mounting brackets for connecting panels and our steel posts. The aluminium brack...
