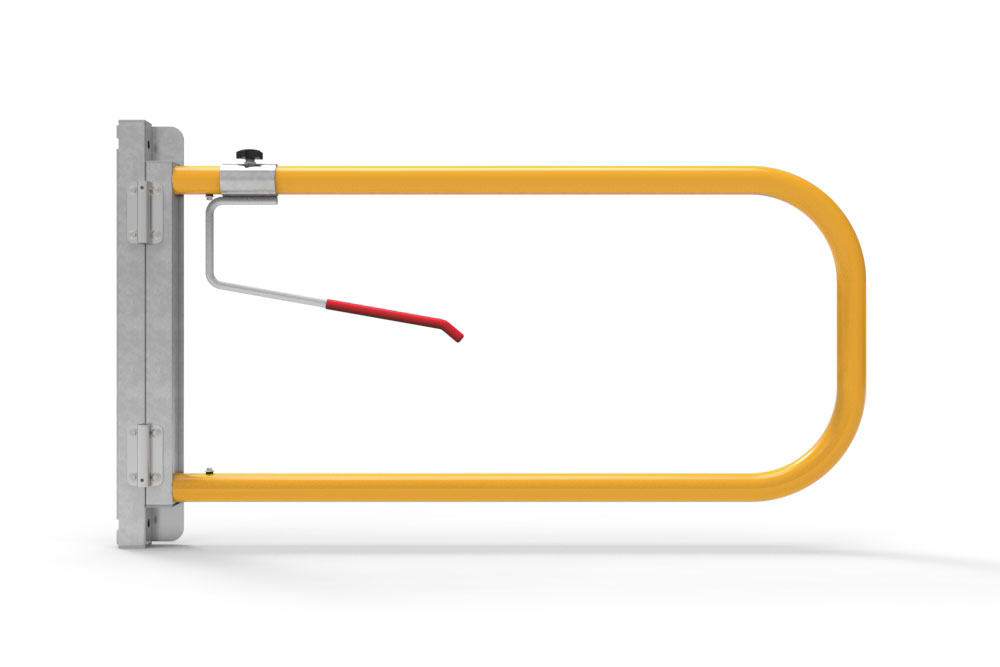

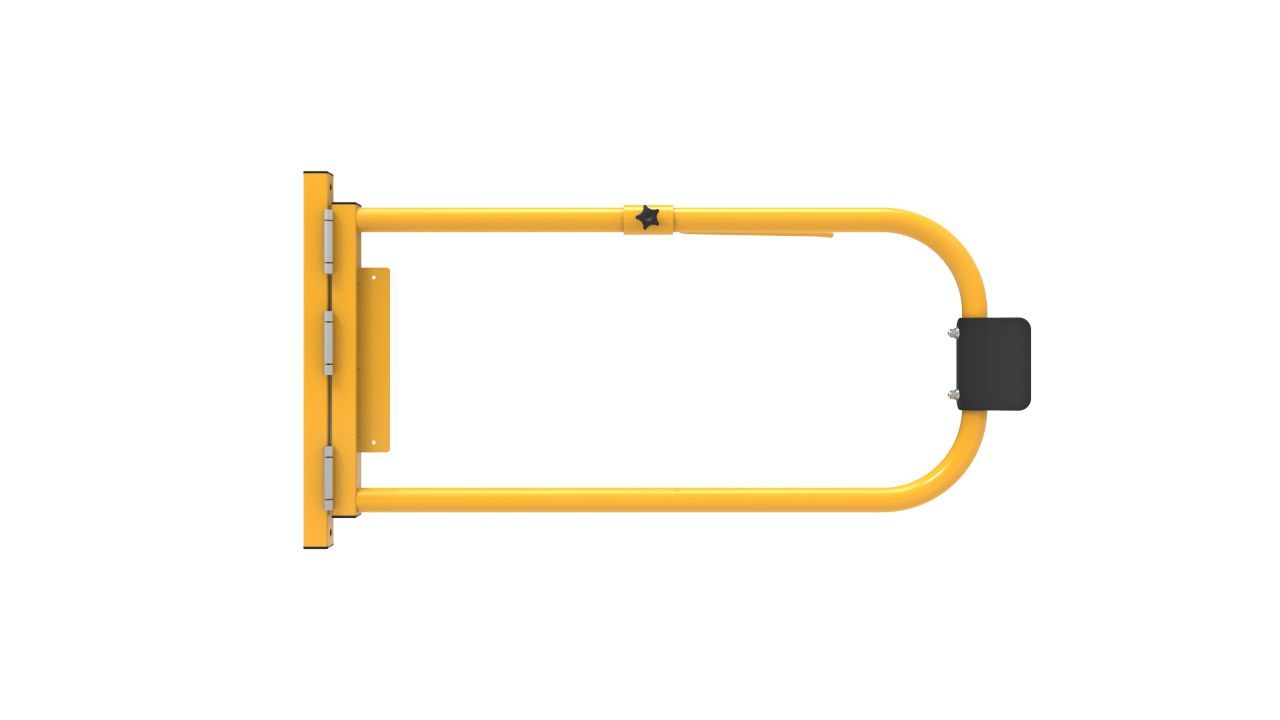

Loading Dock Gate

Click and drag image to view 360˚

Reduce the danger of falls from docks, bays or exposed edges

Loading docks are a high traffic location in any manufacturing or distribution facility. Goods entering your plant and finished orders leaving your facility pass through this area, exposing fork lift drivers and pedestrian traffic to fall hazards when loading dock doors are open and unguarded. This includes the gap between rear load trucks and exposed dock edges on elevated loading docks, which is specific reason our one and two-way spring-return gates were designed to reduce operator falls from these areas.

  • Description: Spring retuen safety gates
    Operation: Spring-return.
    Construction: Steel chassis with aluminium hoop.
    Gate Swing: 90 degrees.
    Gate Stop: Built-in
    Receiver Post: N/A.
    Maximum Opening: 1000mm wide.
    Minimum Opening: 600mm wide.
    Mounting Type: Post or wall.
    Rail Type: 42.4mm diameter aluminium hoop.
    Rail Height: 1000mm above floor.
    Finish: Powder coated.
  • Sorry, we currently don't have any Case Studies related to this product.
  • Ask a question

  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

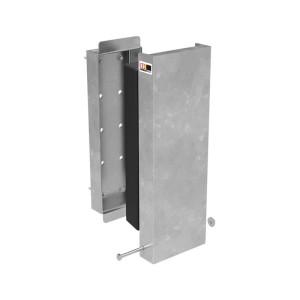

  • Heavy Duty Loading Dock Bumper
