Ball-Fence Swing Gate

Click and drag image to view 360˚

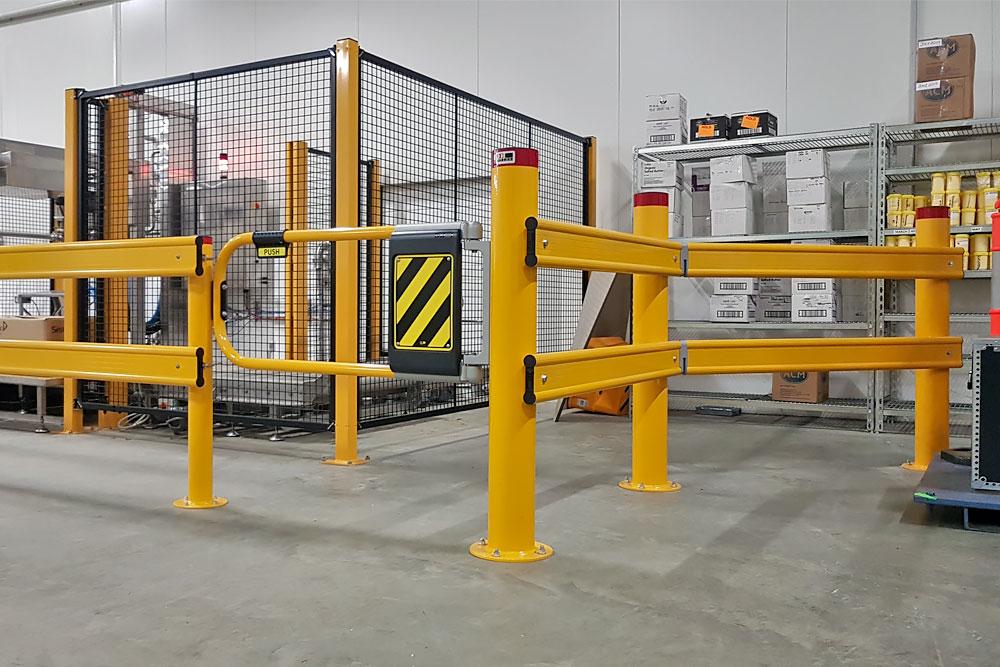

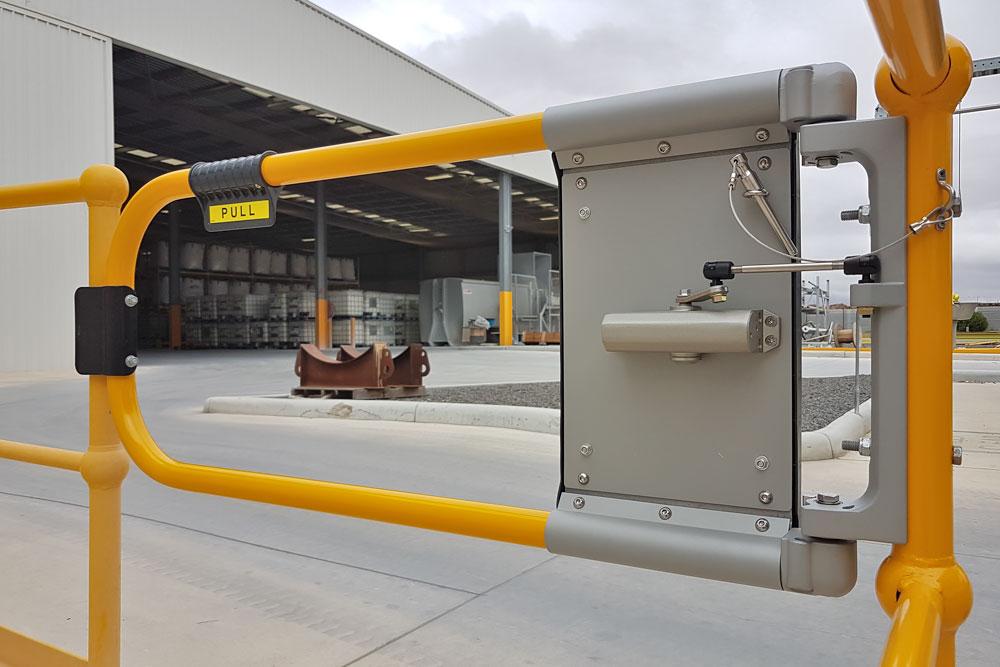

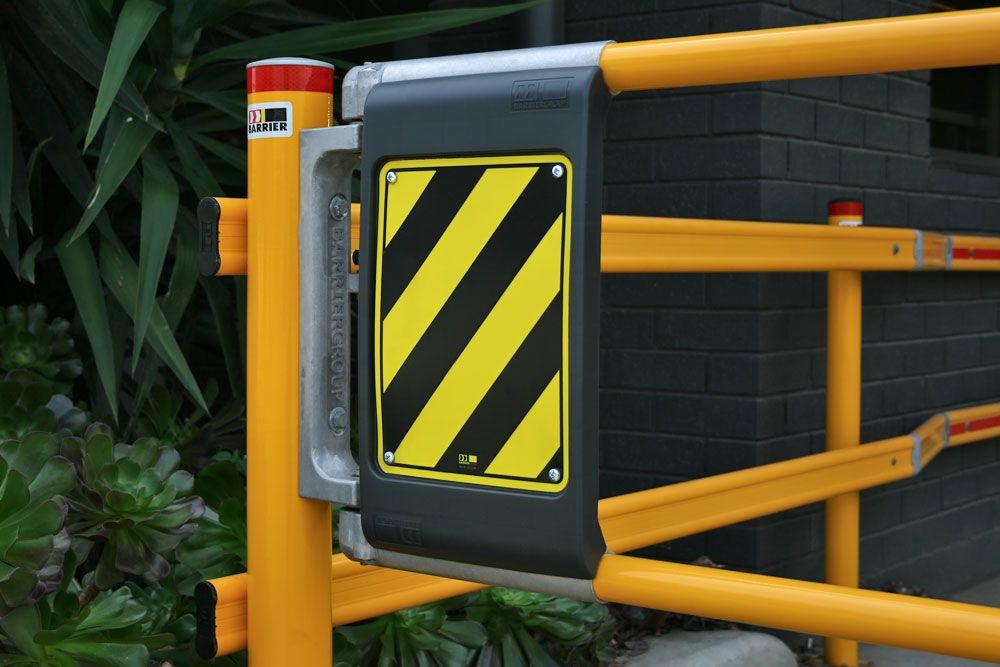

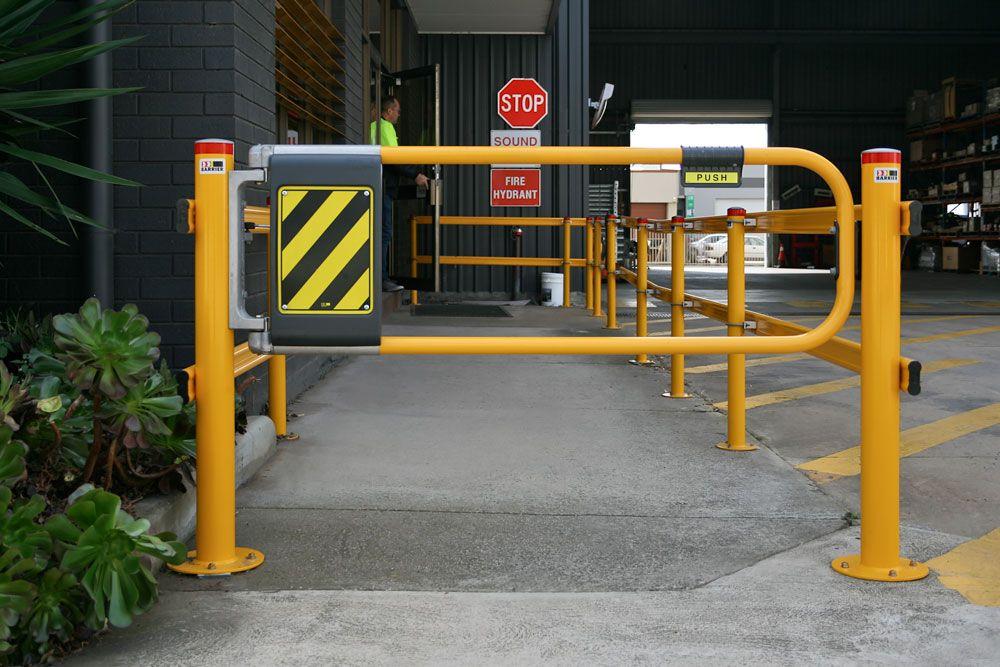

A self closing gate system designed to complement the Ball-Fence range

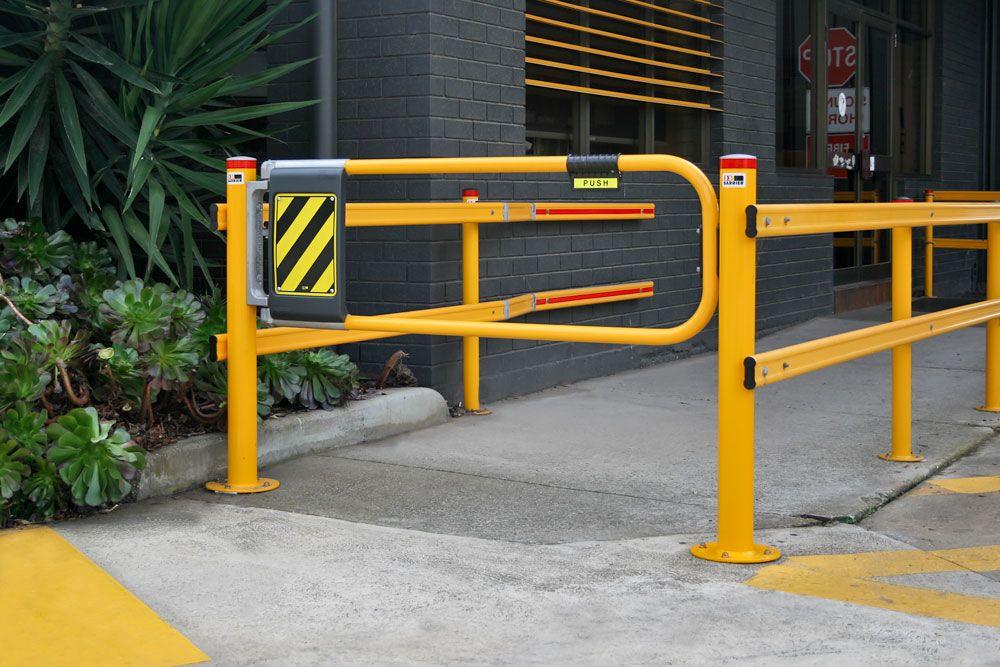

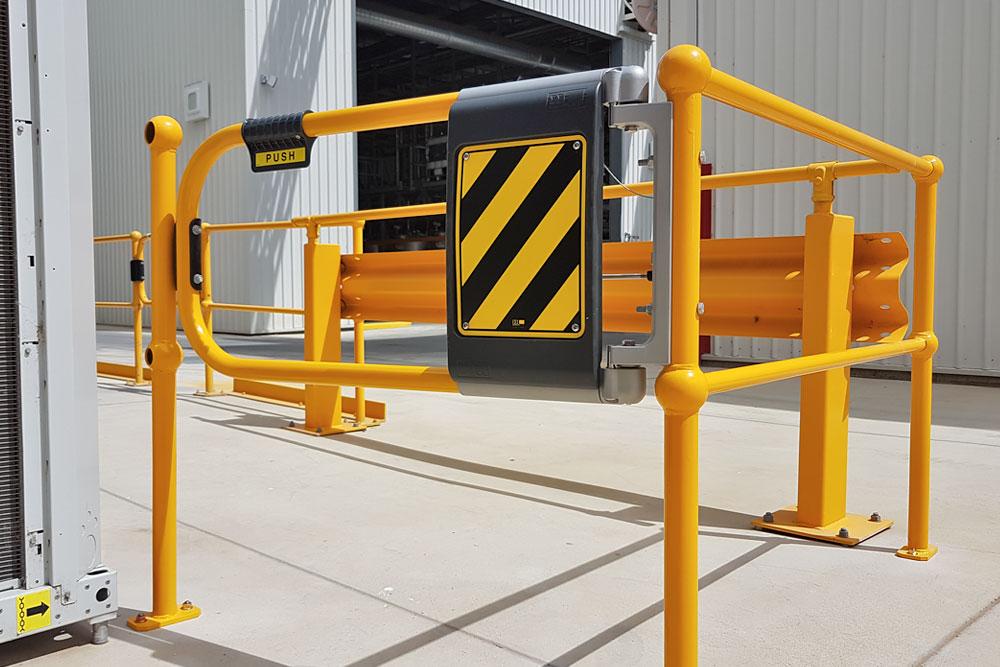

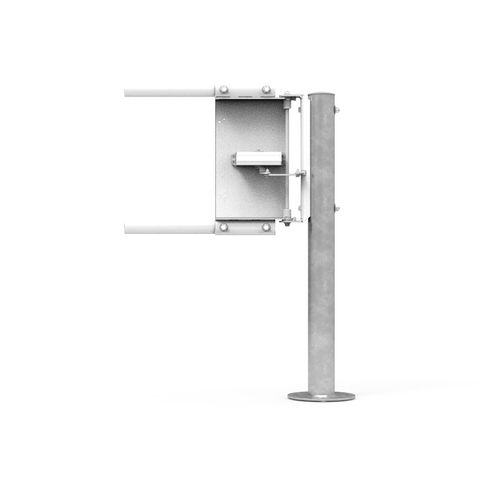

A robust self closing industrial swing gate system that can be supplied with new Ball-fence installations or retrofitted to existing Ball-fence sites. Ball-Fence Gates can be installed in minutes for left or right hand operation, opening inwards or outwards. With adjustable hoop length it ensures total flexibility of use.

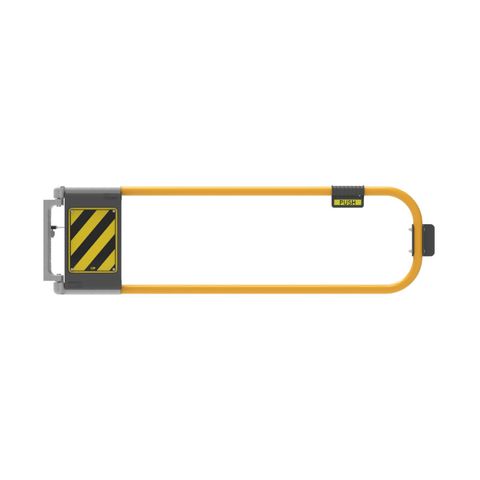

Ball-Fence Gates come complete with a standard powder coated alumimium tubular hoop (42.4mm dia.) to suit a maximum 1750mm* opening for single gates. Hoops can be simply cut down to any length and fitted into the receiver tubes on the gate assembly.

*To fit into a Max Opening of 1750mm (Leaving clear opening of approx: 1630mm when gate is open). To fit into a Min Opening of 600mm (Leaving clear opening of approx: 480mm when gate is open)

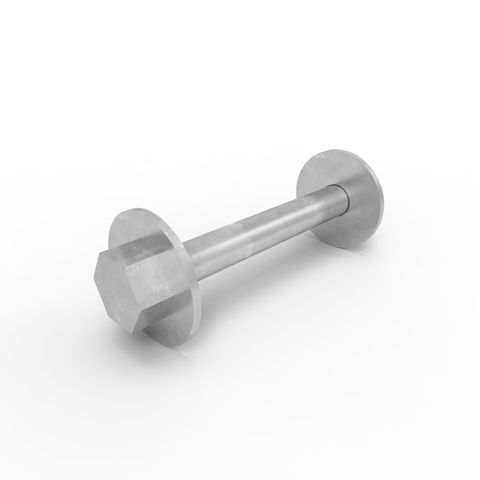

  • Fixings

  • Description: Self-closing safety gate

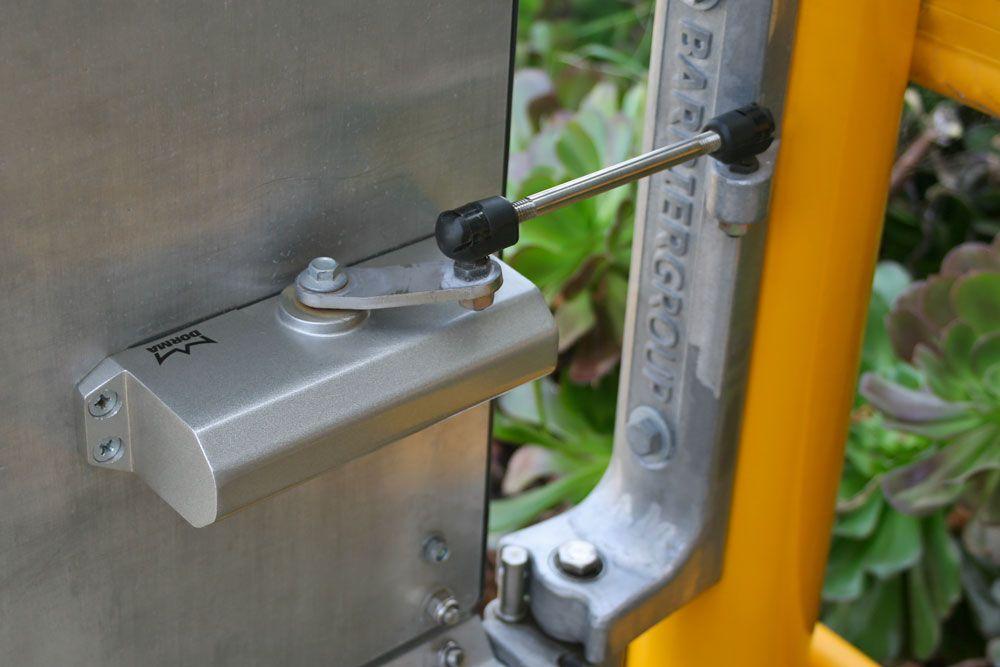

    Operation: Hydraulic spring assistance
    Construction: Cast aluminium chassis and hoop
    Gate Swing: 90 degrees
    Gate Stop: Built-in
    Hold Open: Built-in
    Receiver Post: Optional
    Span Width: Max 1750mm Min 600mm
    Gate Opening: Max 1630mm Min 480mm
    Mounting Type: Post or wall
    Gate Hoop: 42.4mm diameter aluminium
    Gate Height: 1000mm above floor
    Finish: Aluminium body and powder coated hoop
  • Sorry, we currently don't have any Case Studies related to this product.
  • Sorry, there are no Just Ask Questions for this product. Would you like to ask one?
  • We are currently compiling a list of additional services that might apply to this product.

Related Products:

  • PR-Rail Gate

    PR-Rail industrial self-closing gates are designed to complement the PR-Rail fencing system by b...

  • ER-Rail Gate

    ER-Rail Gates are designed to complement the ER-Rail fencing system by being directly mounted o...

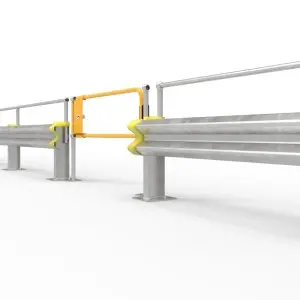

  • Ball-Fence with W-Beam

    Ball-Fence can be paired with our W-Beam guardrails to enhance pedestrian safety by providin...

  • Ball-Fence Hand Rail

    Ball-Fence is a modular handrail system that includes stanchions in a range of configurations, a...

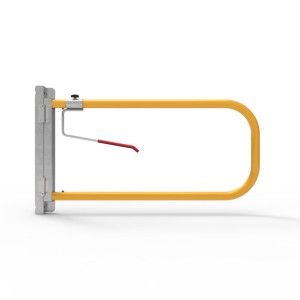

  • Loading Dock Gate

    Loading docks are a high traffic location in any manufacturing or distribution facility. Goods e...

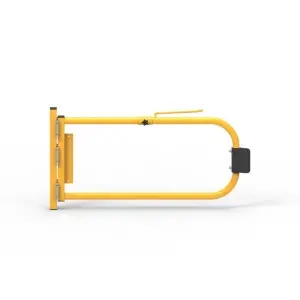

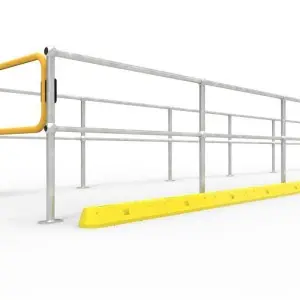

  • Menni for Ball-Fence
